Implementing the Complex Process
of MRL Elevator Installation as CBT
IMXR® Job Training CBT Content
This is CBT (Computer Based Training) content developed to help users effectively understand the MRL elevator installation process and learn core technologies and installation procedures through hands-on practice. This content is composed of a total of 19 MRL elevator installation scenario steps, allowing users to participate in each stage of the installation through simulation play for immersive learning. Each scenario is designed and verified by field operators and technical experts. PDF manuals and video resources are provided to enhance understanding and support repeated learning. Learners can sequentially experience key installation procedures in a worksite-like environment, such as selecting installation locations, installing rails, and understanding the core structure of MRL (Machine Room-Less), making this CBT solution optimal for practical job training and pre-safety education.
 | INTRO Spatial Constraints · Physical Environment Issues · Lack of Customized Training · Instructor Management Limitations University training labs face spatial constraints and a lack of equipment, making it difficult for many students to directly experience installation work. The equipment and parts required for hands-on training are limited, so it is hard to provide enough time for repeated learning or improving proficiency. In addition, environments like mechanical parts rooms can be physically challenging due to high temperatures in summer or heavy equipment, making it hard to concentrate in class. When one instructor must teach and manage multiple students simultaneously, the quality of learning naturally declines, resulting in many practical limitations for effective, site-oriented hands-on training. |
SOLUTION :
IMXR MRL Elevator CBT Content was developed to overcome the limitations of traditional hands-on environments and provide a more effective learning experience. This content consists of 19 scenarios, allowing users to directly perform the elevator installation process step-by-step in a virtual environment, as if they were handling actual tools and parts. Computer-based virtual training enables repeated learning and helps users naturally become familiar with the shapes and installation order of each part. Users do not just watch videos, but actively participate in learning by making their own decisions and operating the process. In addition, with automatic procedural videos, PDF manuals, and educational videos, the content supports a rich learning environment where users can review and understand the material in various ways.
MRL Elevator Installation CBT Content Structure
MRL (Machine Room-Less) elevator installation is a complex process requiring high safety and precision. To systematically learn and understand this process, the CBT (Computer-Based Training) content is organized step-by-step, following the actual installation sequence and work procedures. Below is a description of the content structure based on the scenario topics and steps.
Main Scenario Topics & Key Scenes |
 |  |  |
| 1. Entrance Opening Safety Measures | 2. Top Platform Installation | 3. Electric Winch Installation & Hoisting |
 |  |  |
4. Upper Template Installation | 5. Inert Installation for Rail Suspension | 6. Lower Template Installation |
 |  |  |
7. Pit Ladder Installation | 8. No.1 Guide Rail Installation | 9. Pit Working Platform Installation |
 |  |  |
10. Rail Installation | 11. Car Frame Installation | 12. Electric Winch 2:1 Roping |
 |  |  |
13. Removal of Upper Shaft Platform | 14. Drive Unit Installation | 15. Roping |
 |  |  |
16. Entrance Installation | 17. CAM ASSY & FLS ASSY Installation | 18. Car Panel Installation |
 |
|
|
19. Car Parts Installation |
|
|
Scenario No.
| Details |

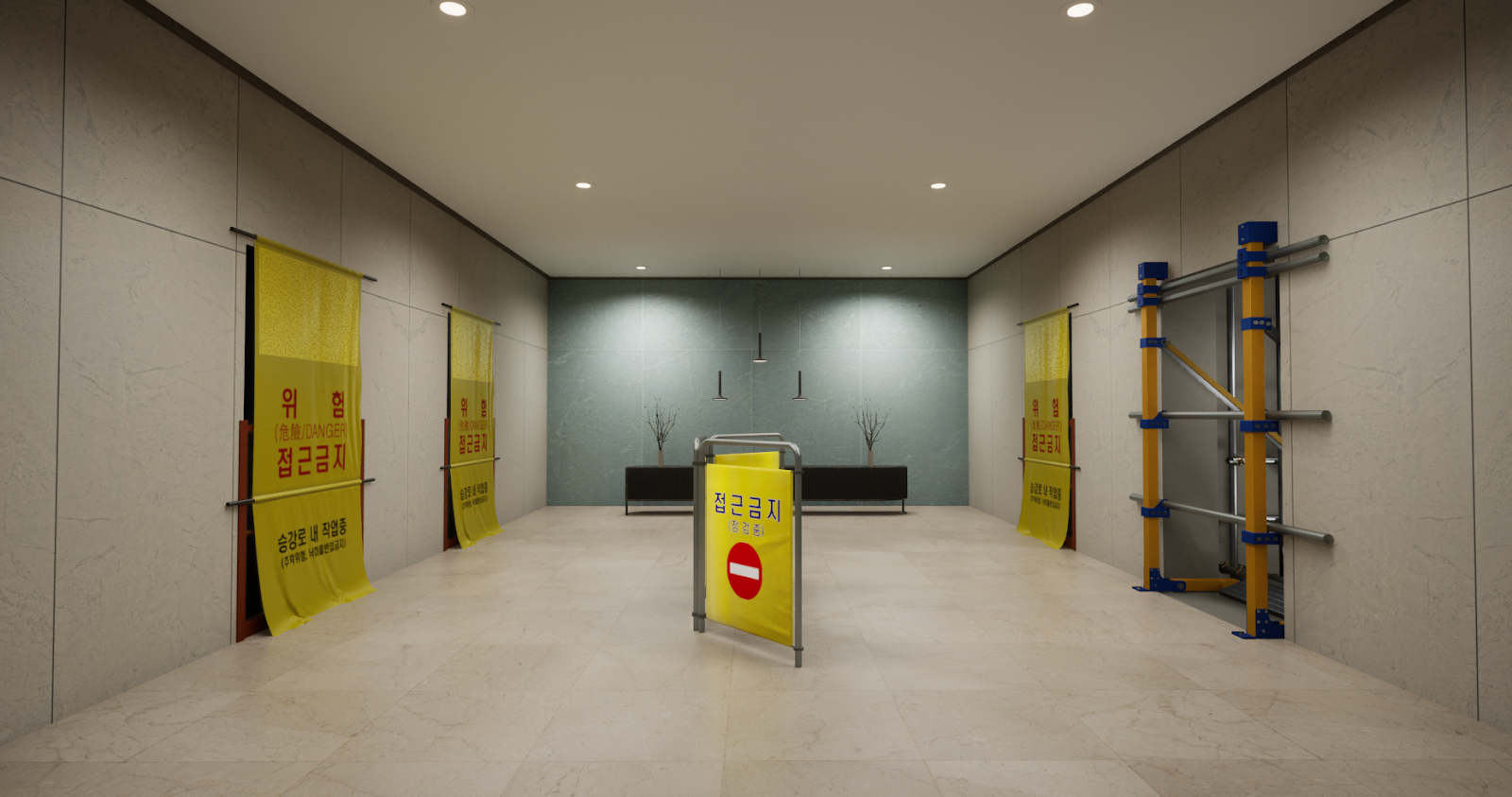

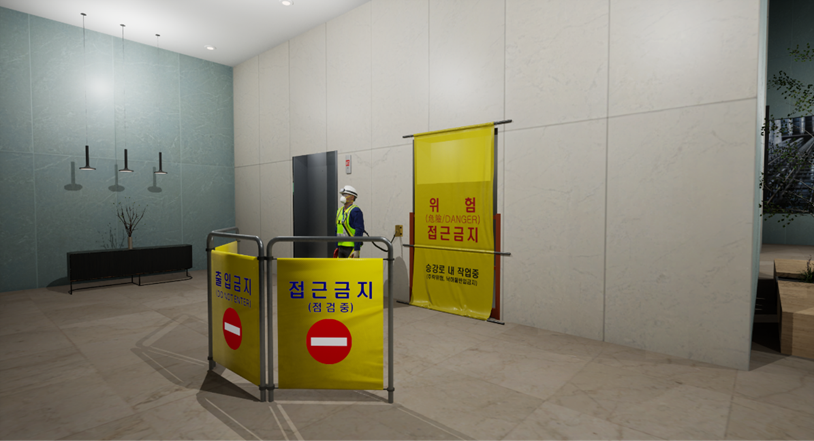

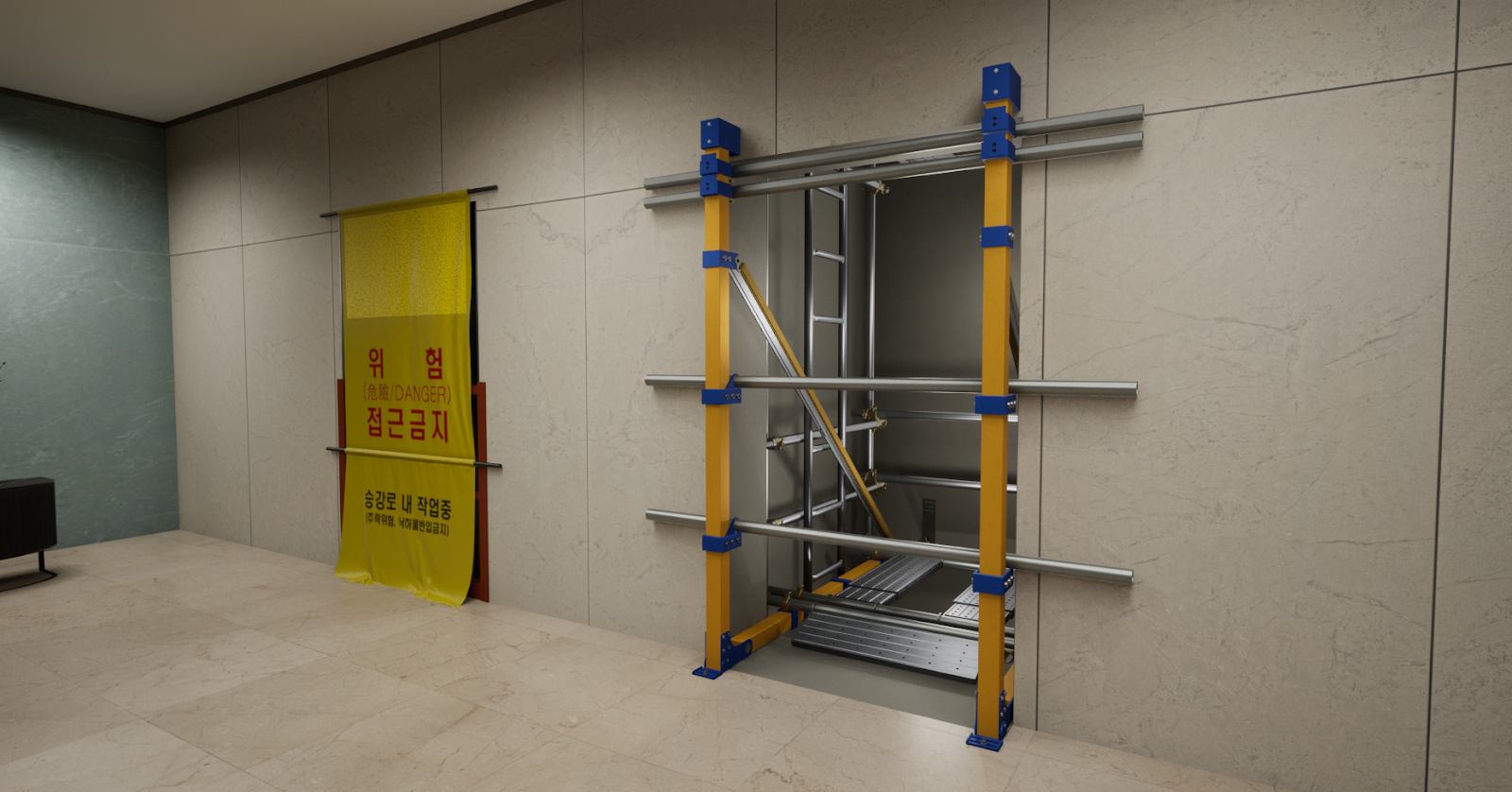

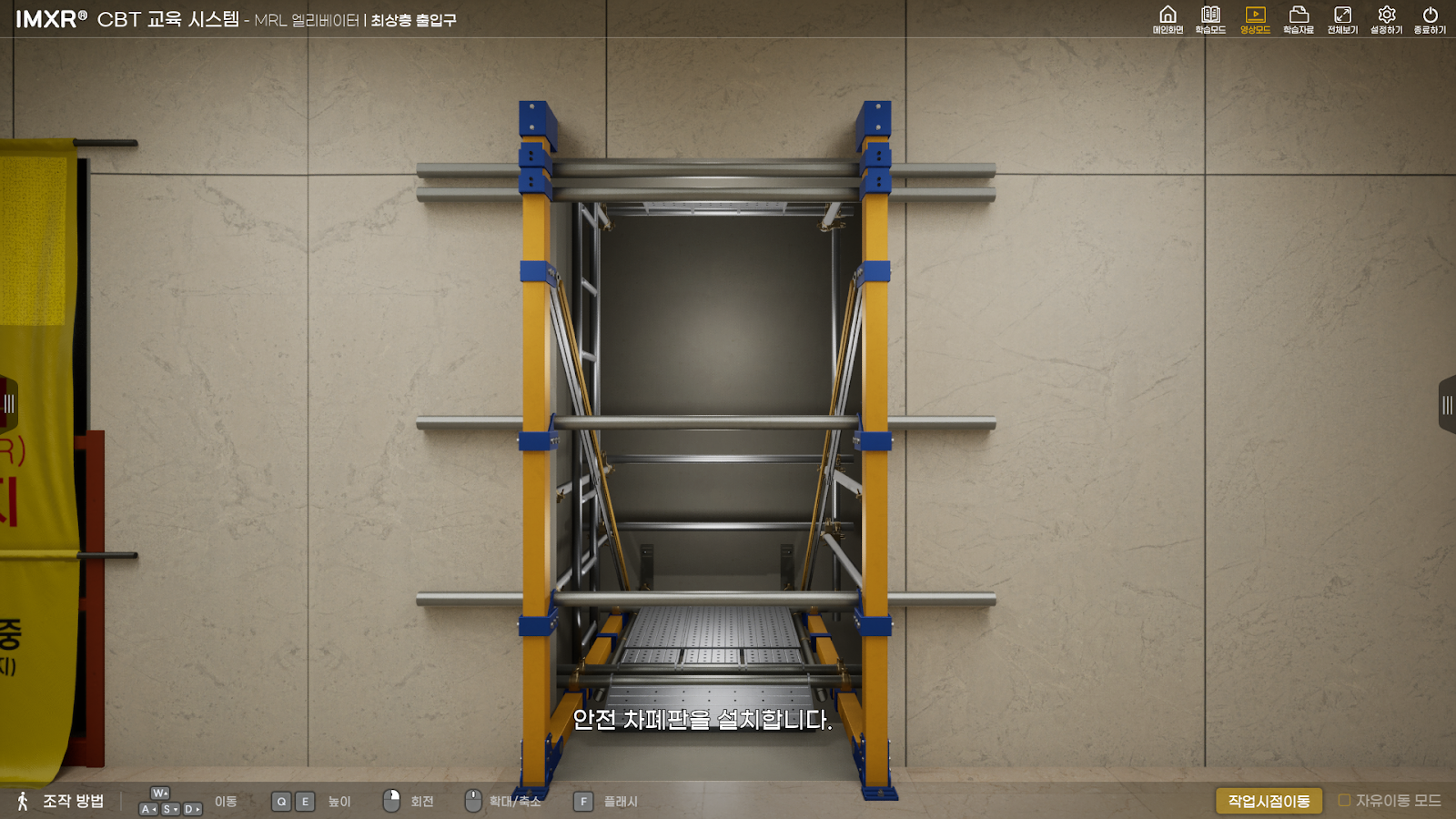

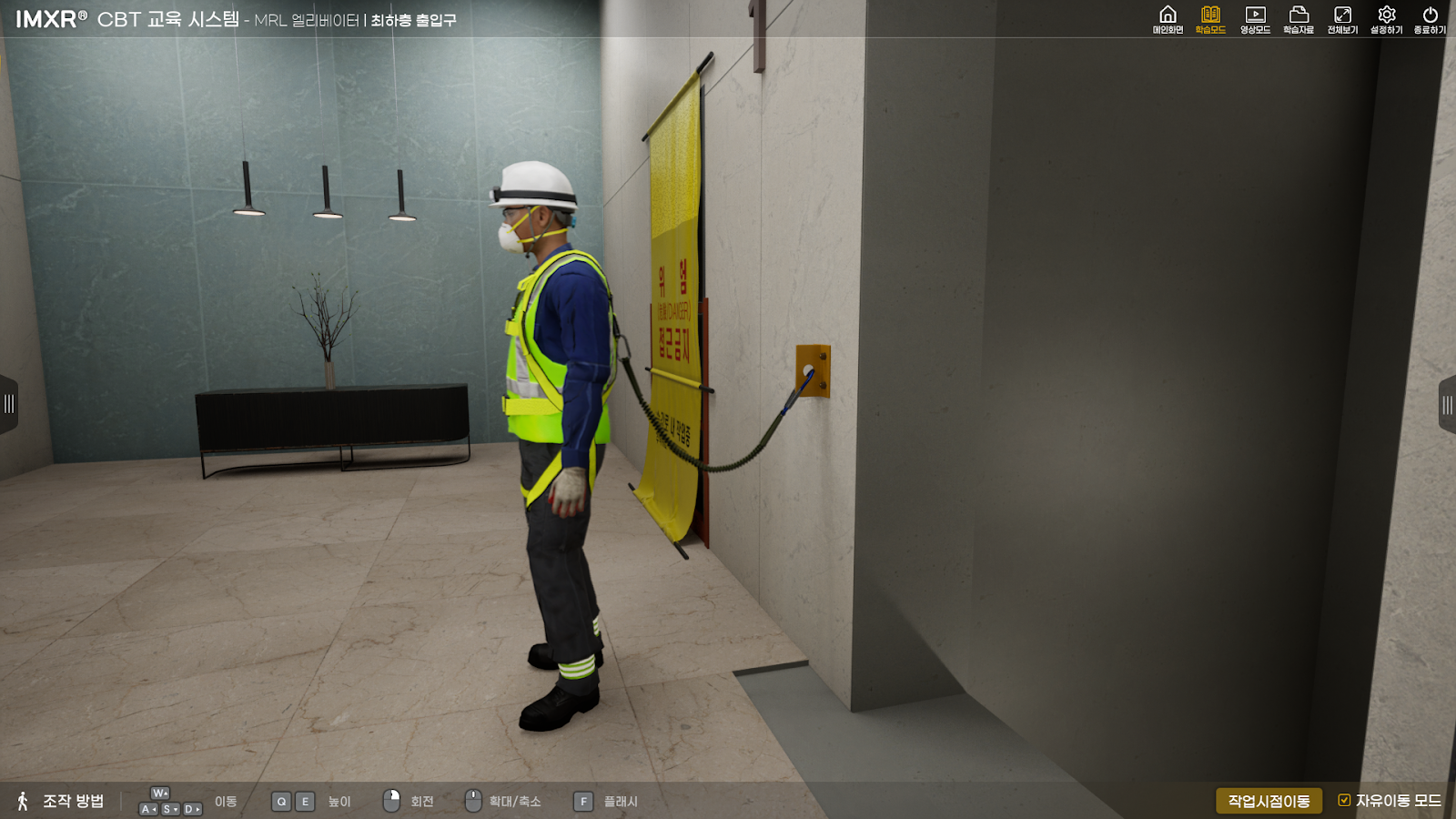

1 | Entrance Opening Safety Measures: Installation of safety railings, installation of safety shielding panels
|

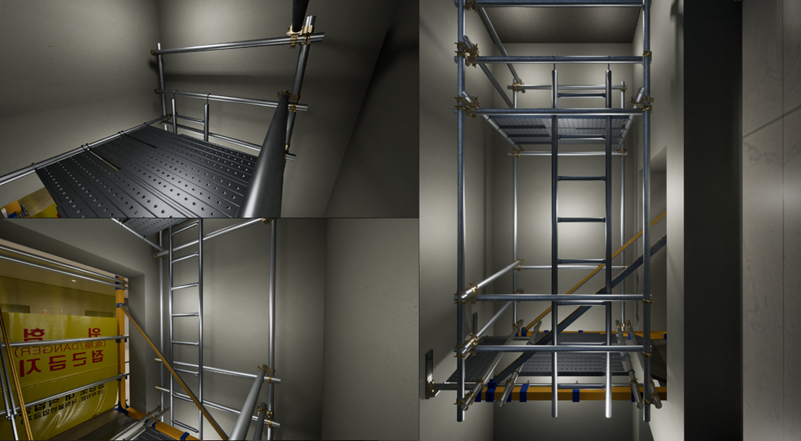

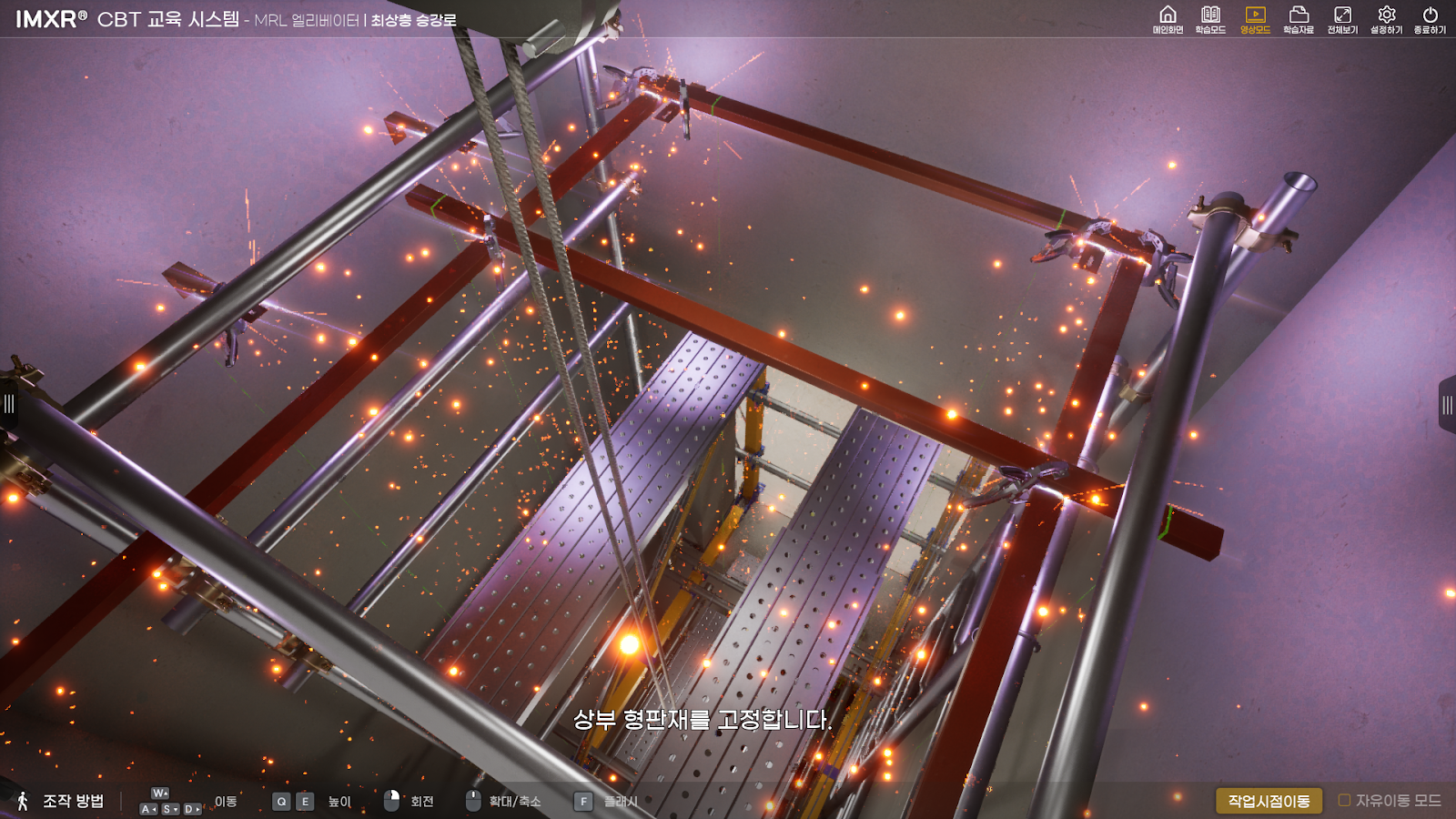

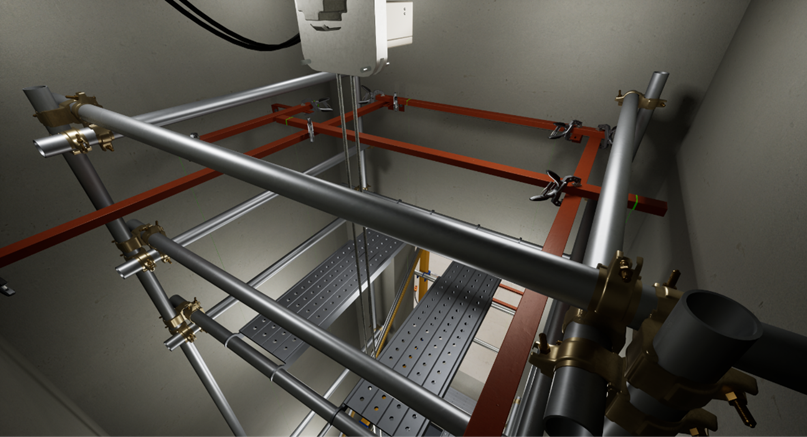

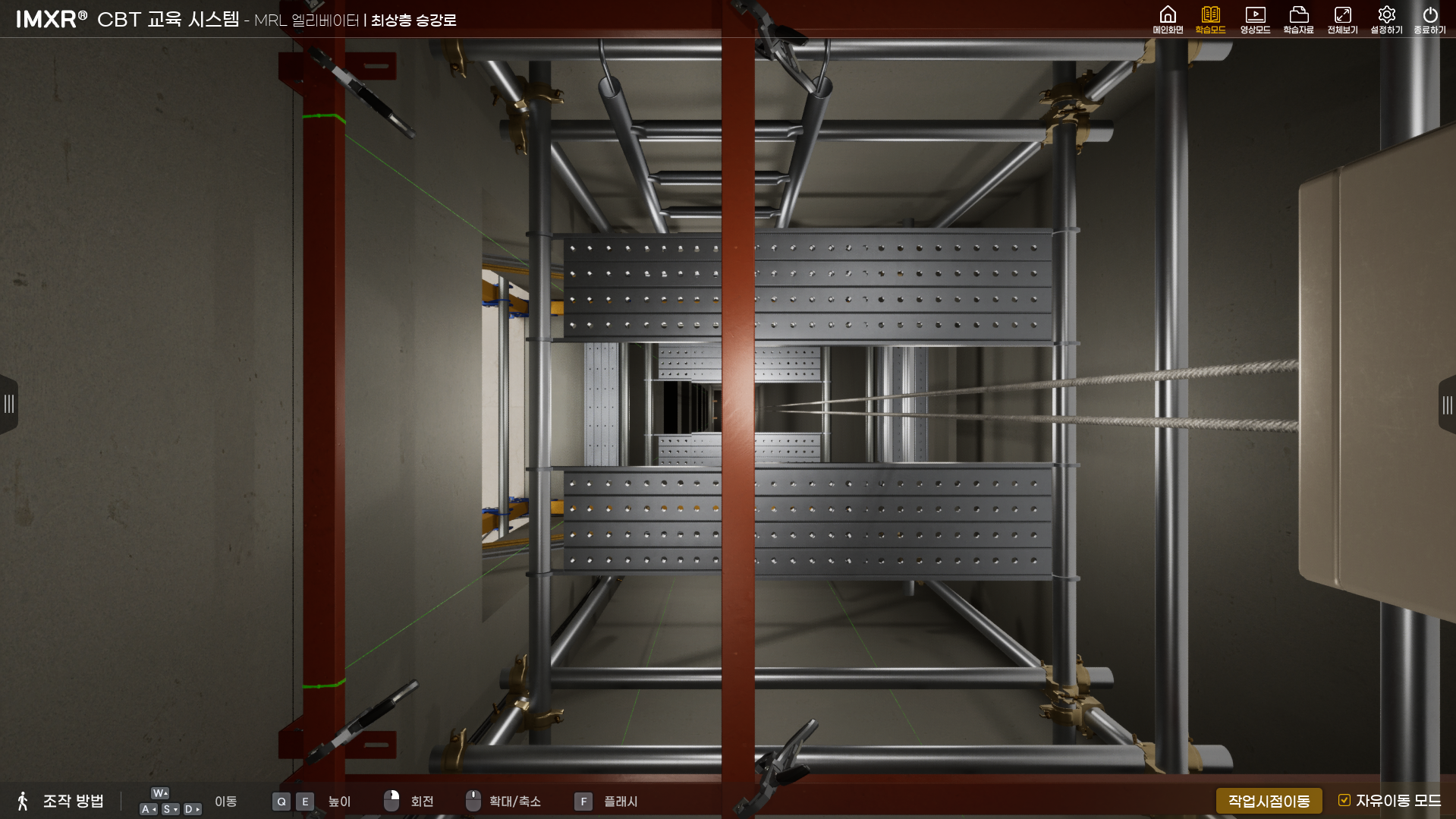

2 | Top Platform Installation: Installation of elevator-specific system scaffolding |

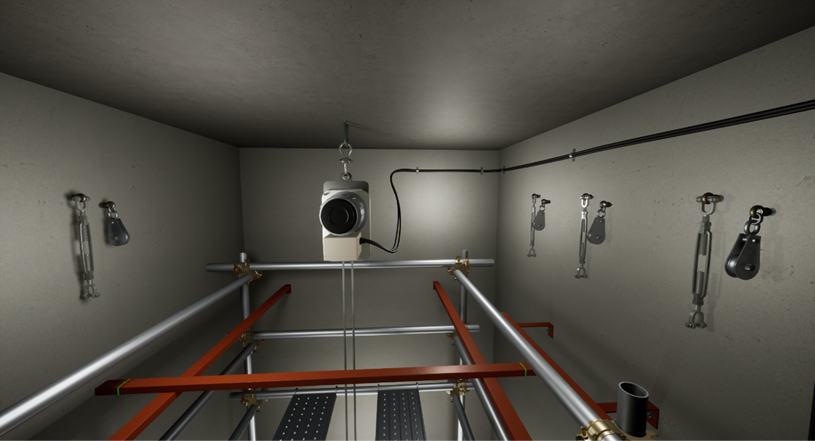

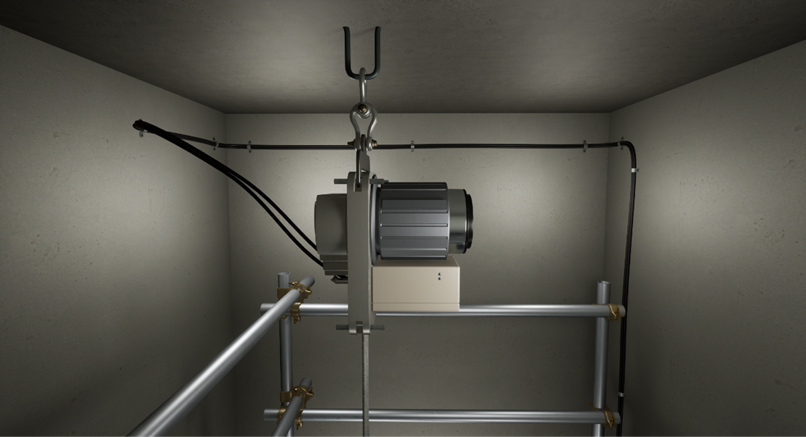

3 | Electric Winch Installation & Hoisting: Electric winch installation |

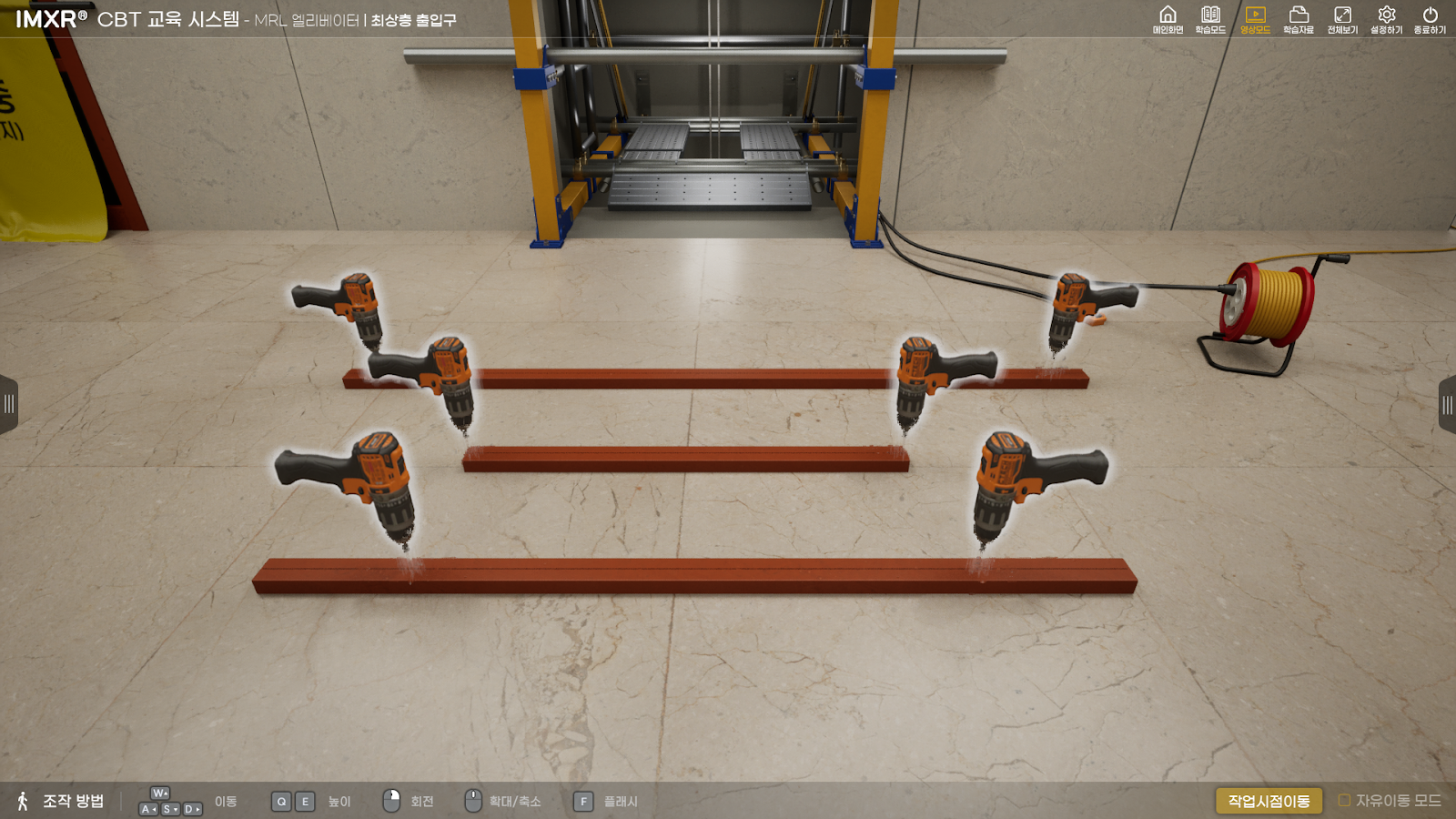

4 | Upper Template Installation: Template material cutting, installation of upper entrance template material, measuring temporary dimensions, installation of upper car and counterweight guide rail templates |
5 | Inert Installation for Rail Suspension: Inert installation and turnbuckle fixation |
6 | Lower Template Installation: Preparation of lower template material, installation of lower template supports, installation of pit entrance template, car template and car buffer support installation, counterweight buffer support installation |

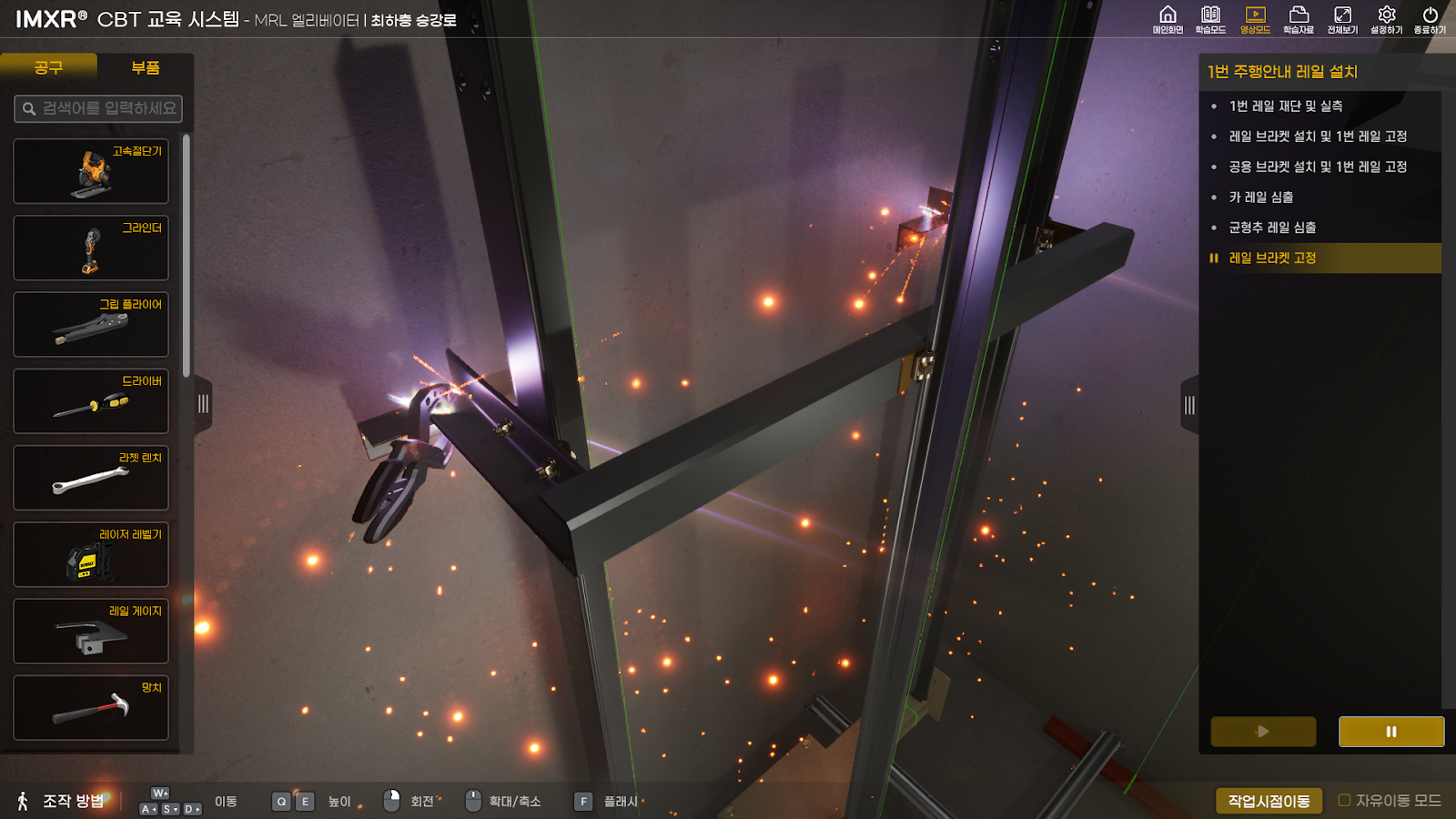

7 | Pit Ladder Installation: No.1 rail cutting and measuring, No.1 rail fixation, rail bracket installation, shared bracket installation, car rail centering, counterweight rail centering, rail bracket fixation |

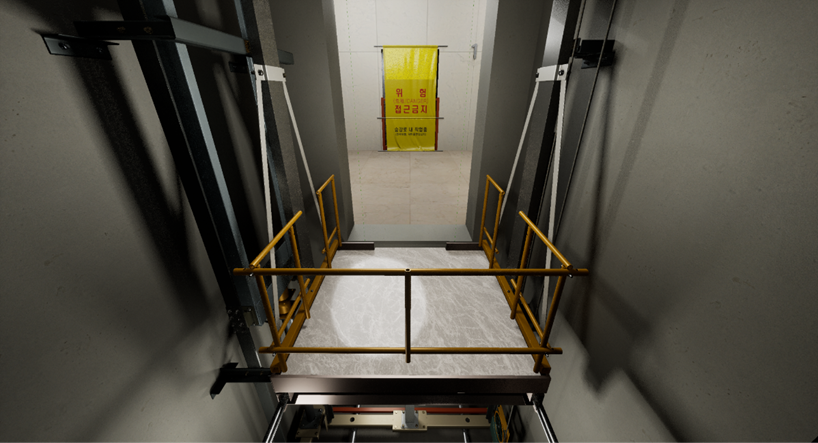

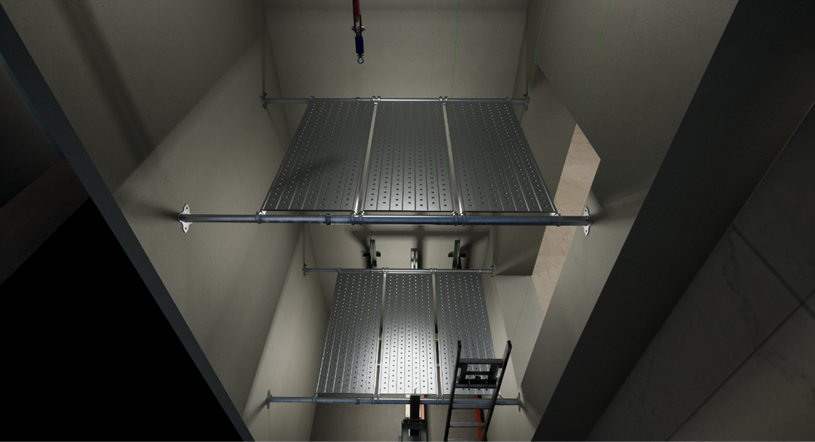

8 | Pit Working Platform Installation: Pit 1st stage working platform installation, pit 2nd stage working platform installation |
9 | No.1 Guide Rail Installation: Rail preparation, rail hoisting into the shaft, fixation of topmost rail |
10 | Rail Installation: Counterweight frame delivery, counterweight frame fixation, installation of anti-fall safety device, car side sling installation, upper sling installation, temporary overspeed governor installation and its usage, brace rod installation, car upper safety railing installation (fixed type) |
11 | Car Frame Installation |

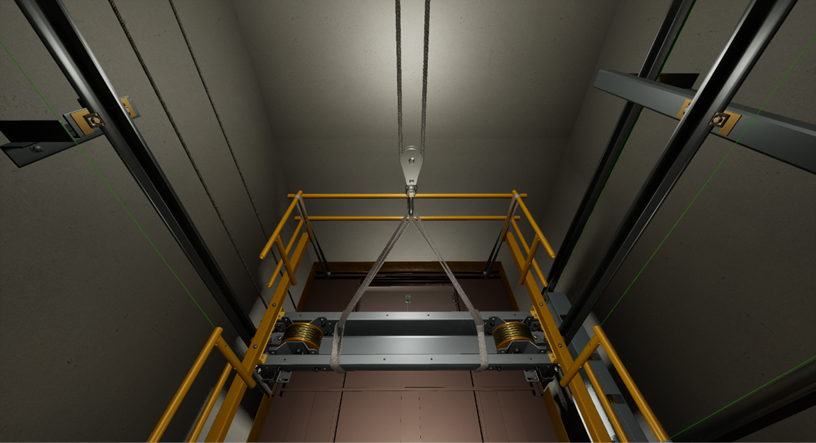

12 | Electric Winch 2:1 Roping |
13 | Removal of Upper Shaft Platform |

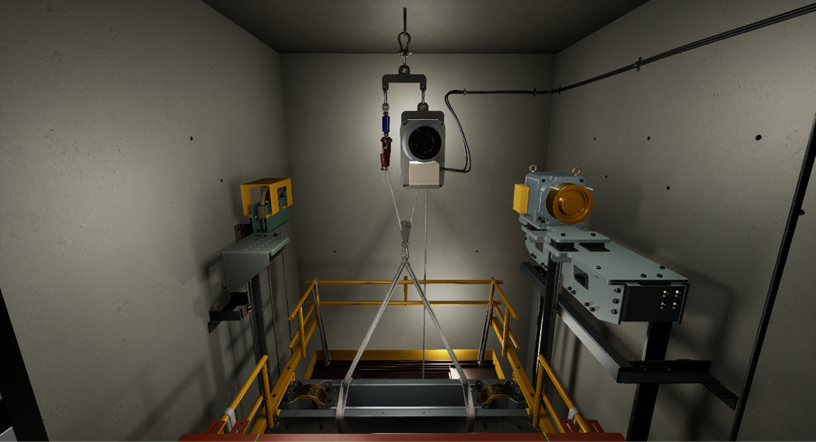

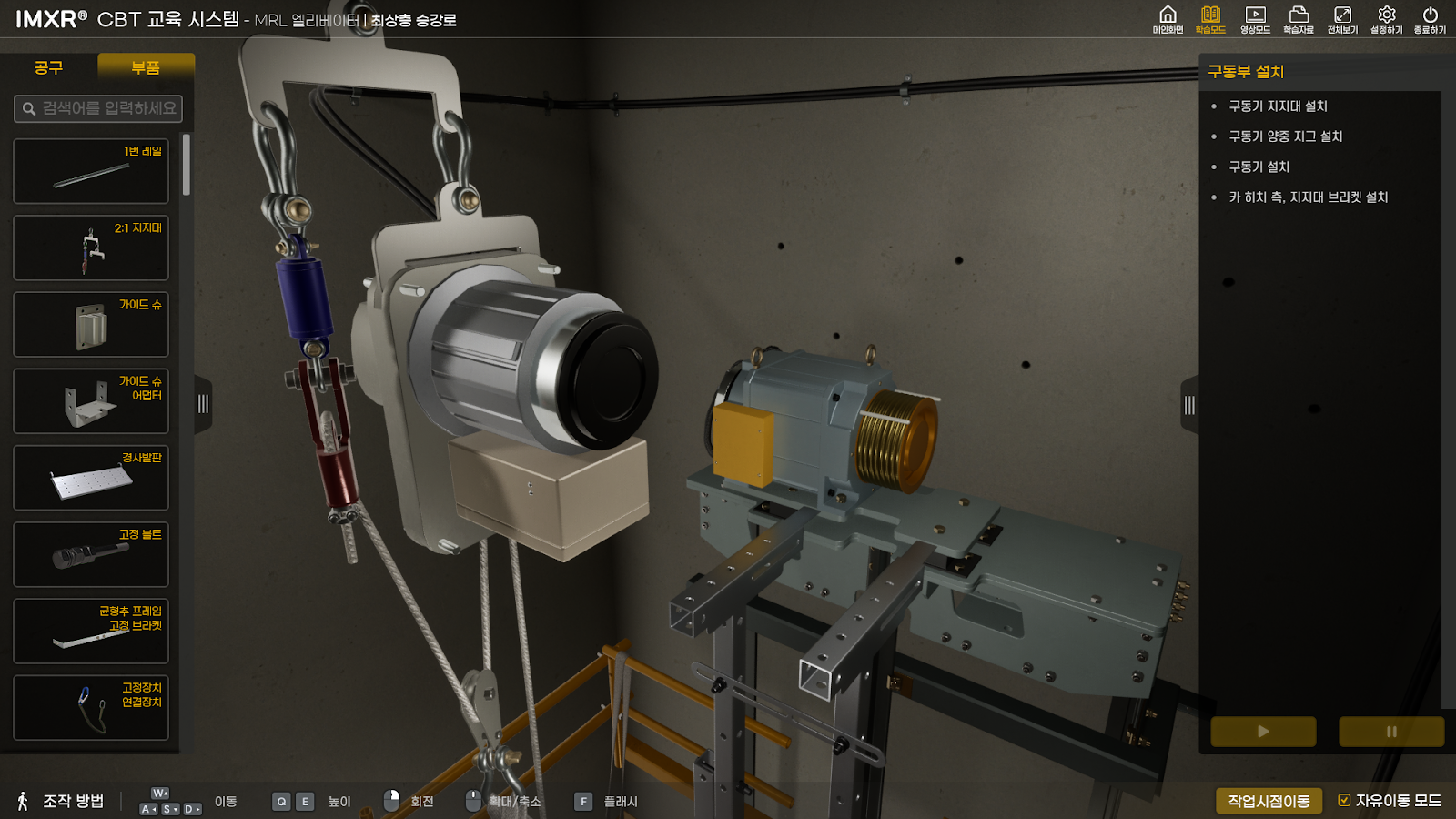

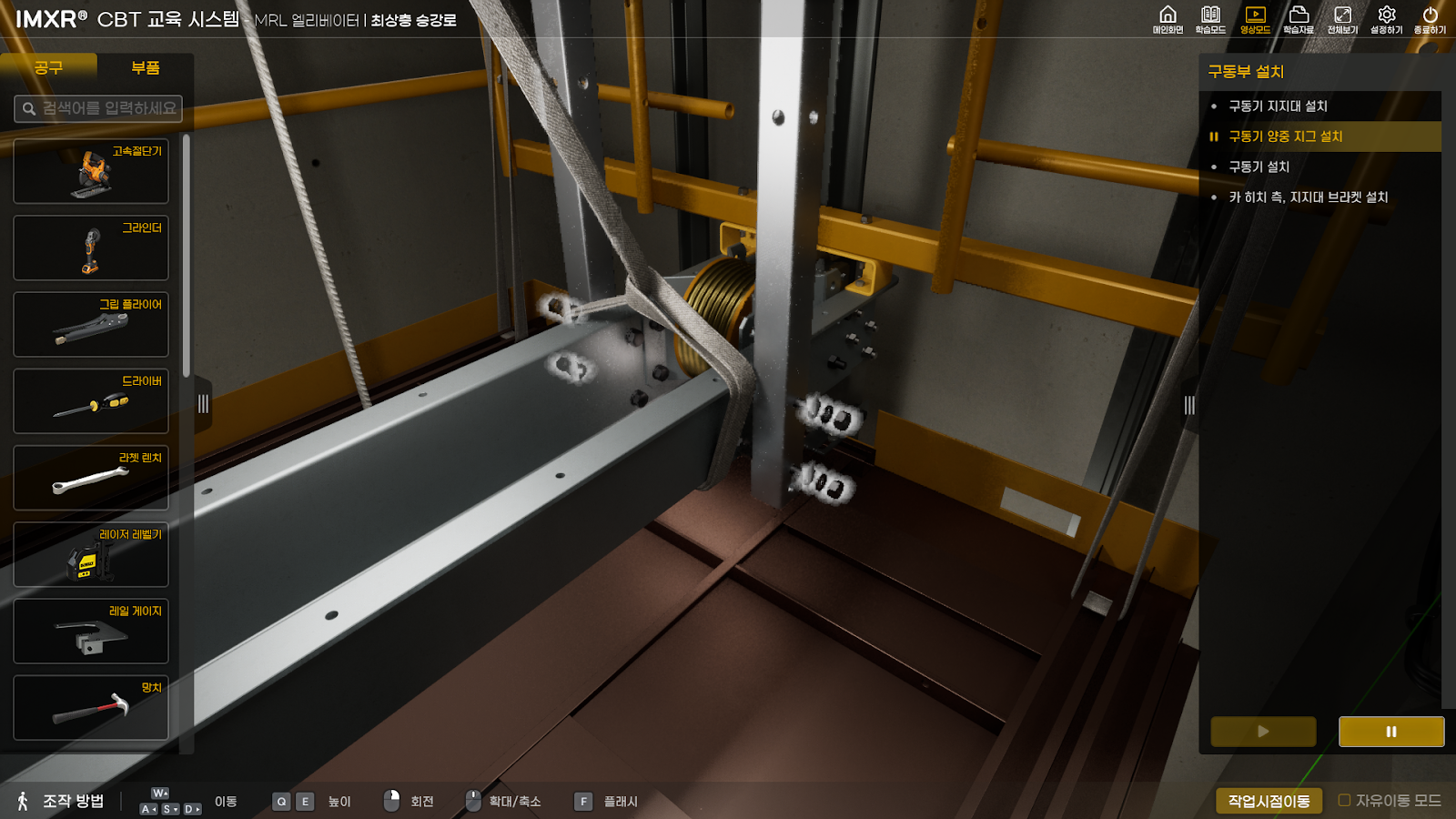

14 | Drive Unit Installation: Installation of drive unit support, installation of drive unit hoisting jig, installation of car hitch side, support bracket installation |
15 | Roping: Installation of counterweight hitch rope, hooking the rope on the counterweight, car hitch rope connection, loading of counterweight blocks, installation of main overspeed governor |

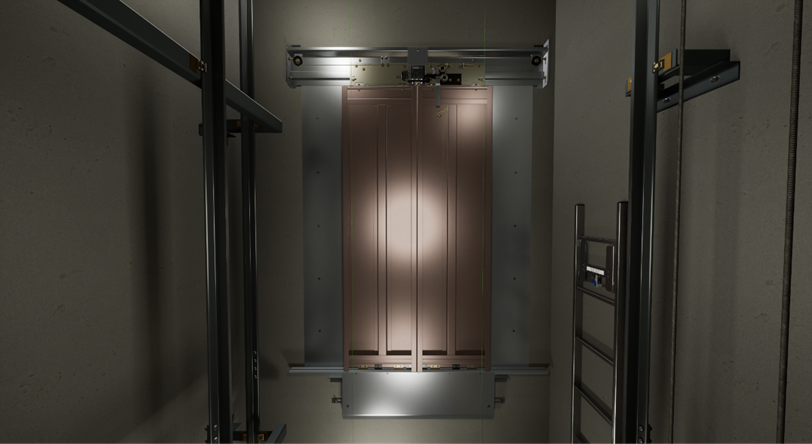

16 | Entrance Installation: Installation of landing threshold, installation of landing door lock, installation of landing door operator, installation of landing door |
17 | CAM ASSY & FLS ASSY Installation |

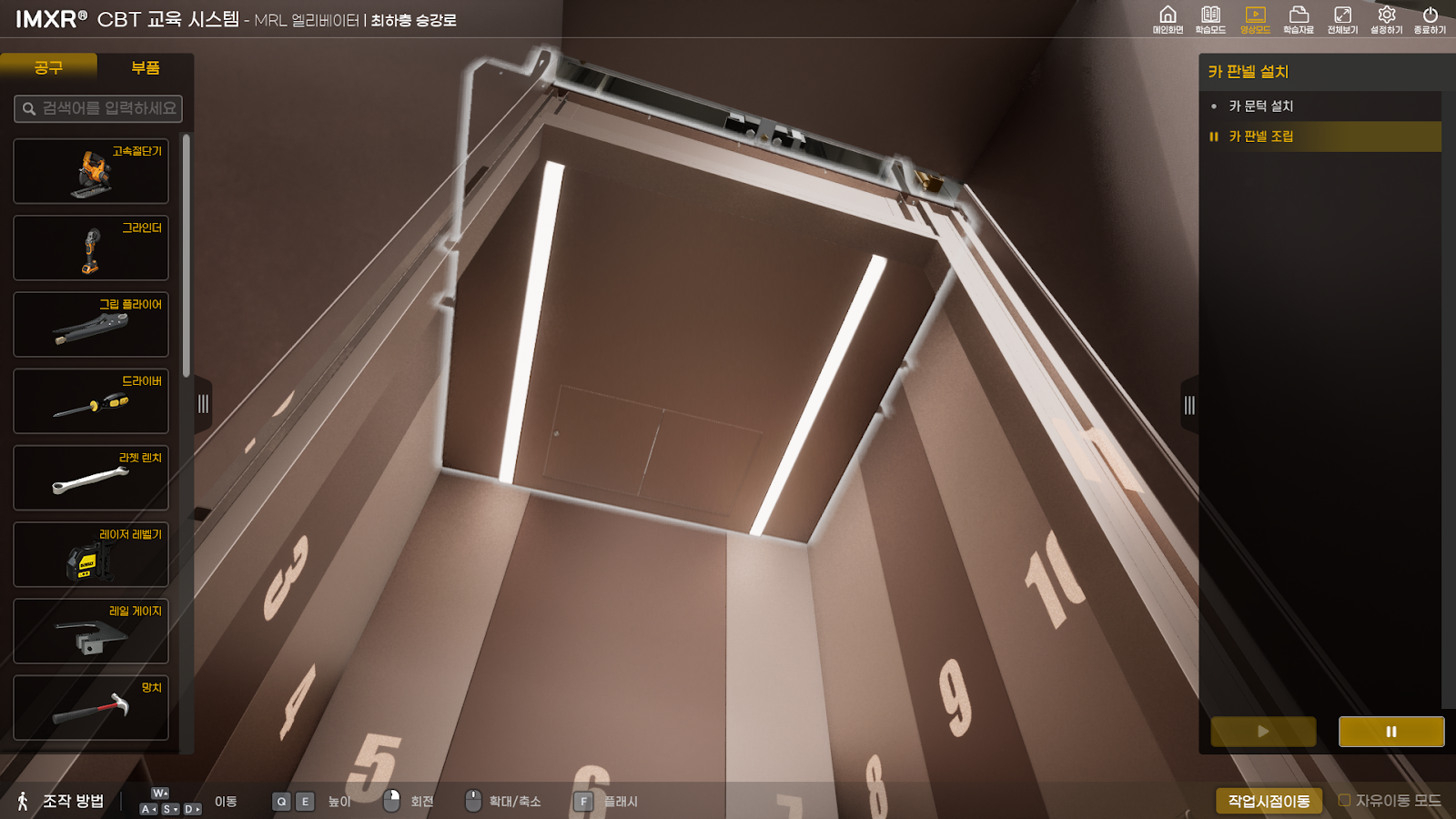

18 | Car Panel Installation: Car threshold installation, car panel assembly |
19 | Car Parts Installation: Car stopping device installation, car door operator installation, level adjustment, installation of counterweight protective partition (pit screen), overload detector, apron installation |
Specialized Technologies of MRL Elevator Installation CBT Content
01. Realistic Environment Simulation :

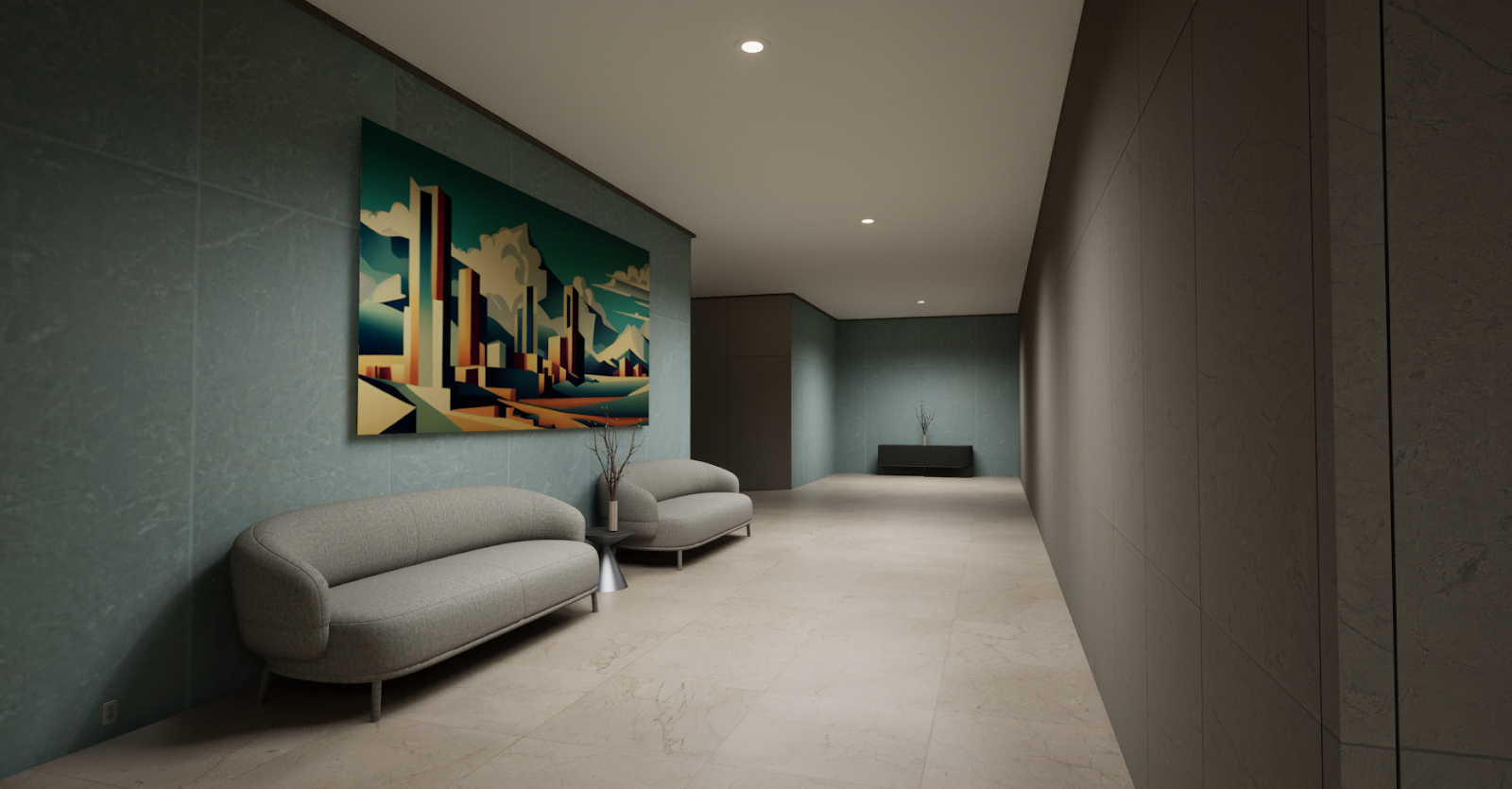

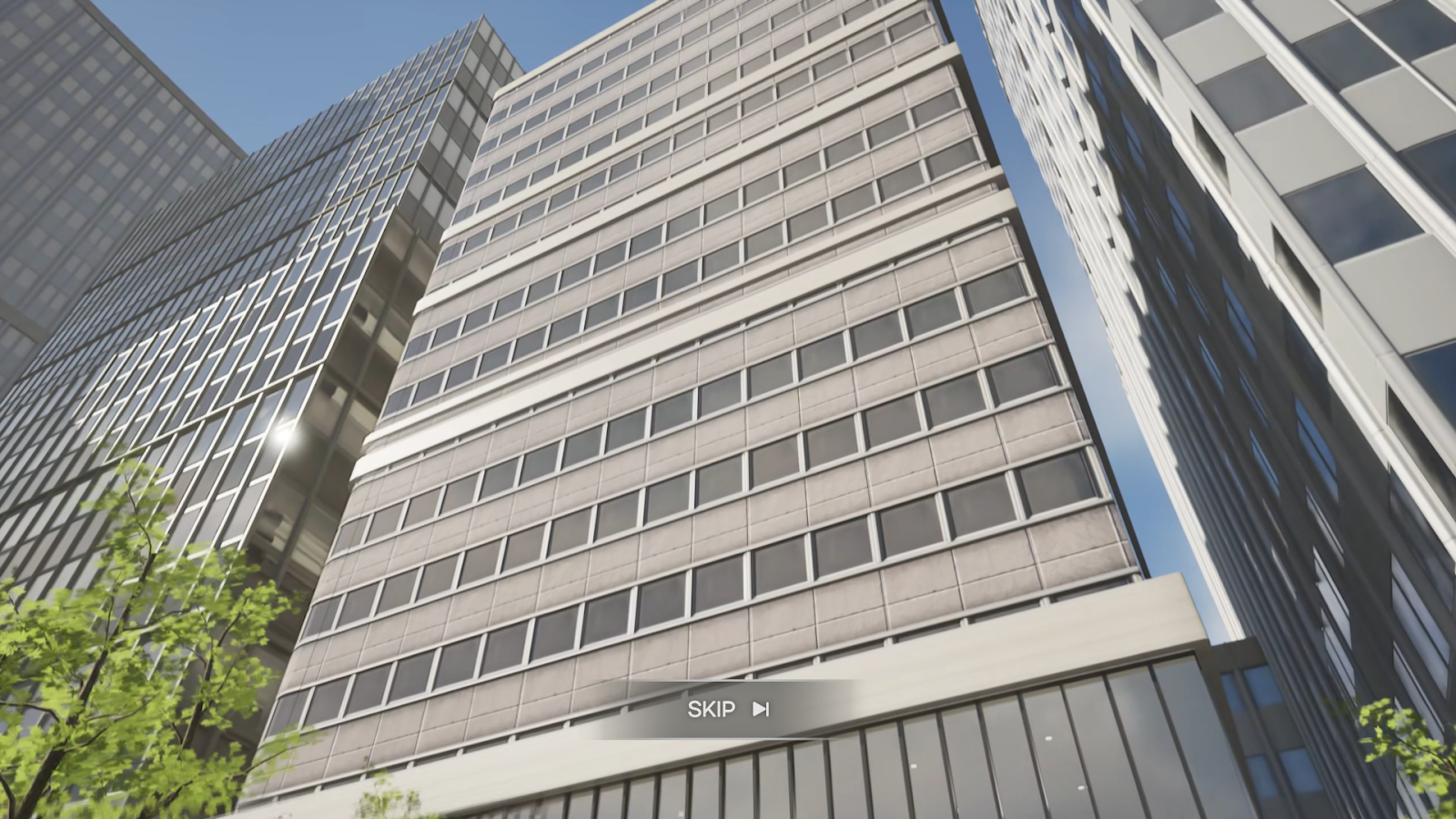

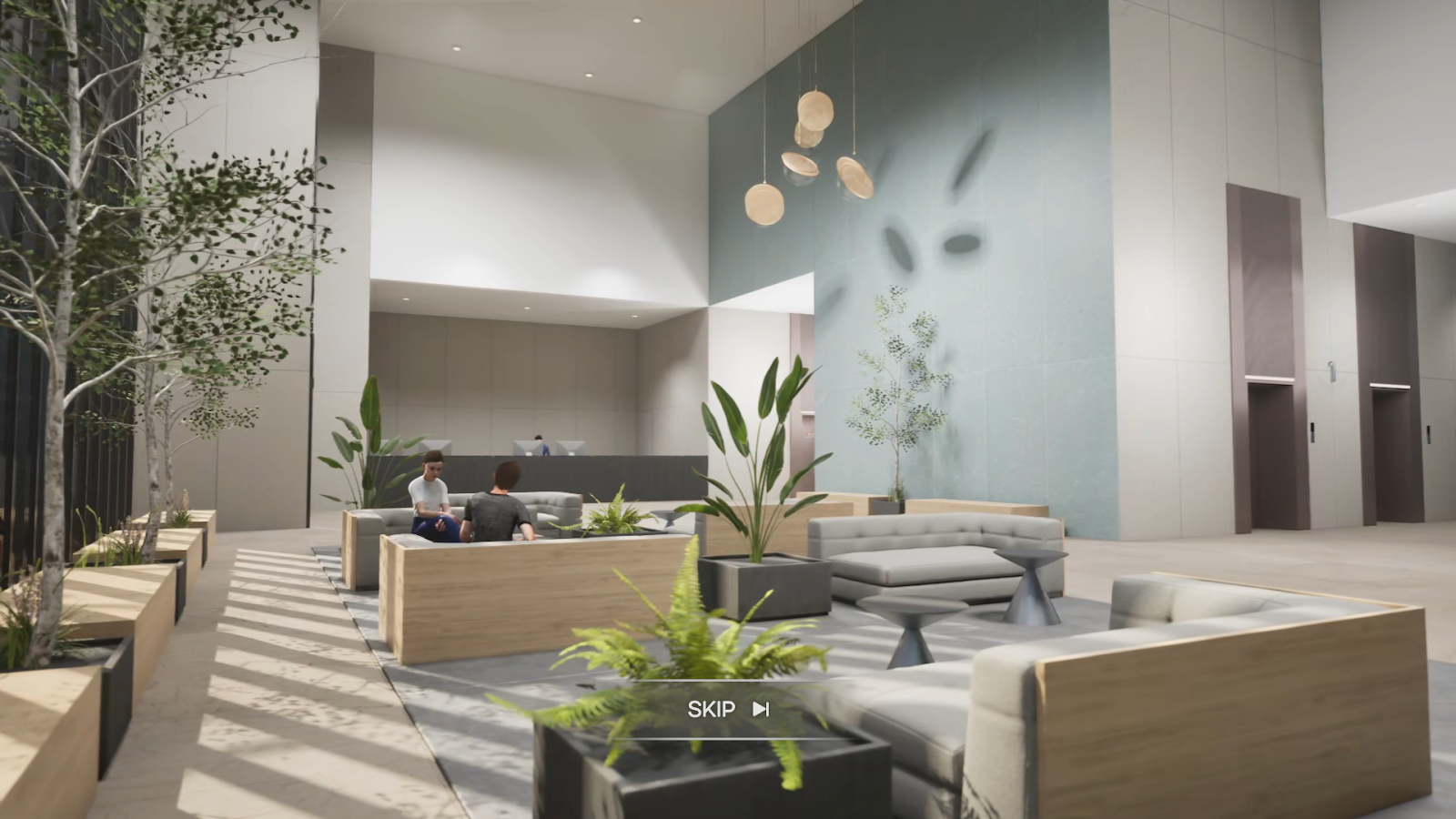

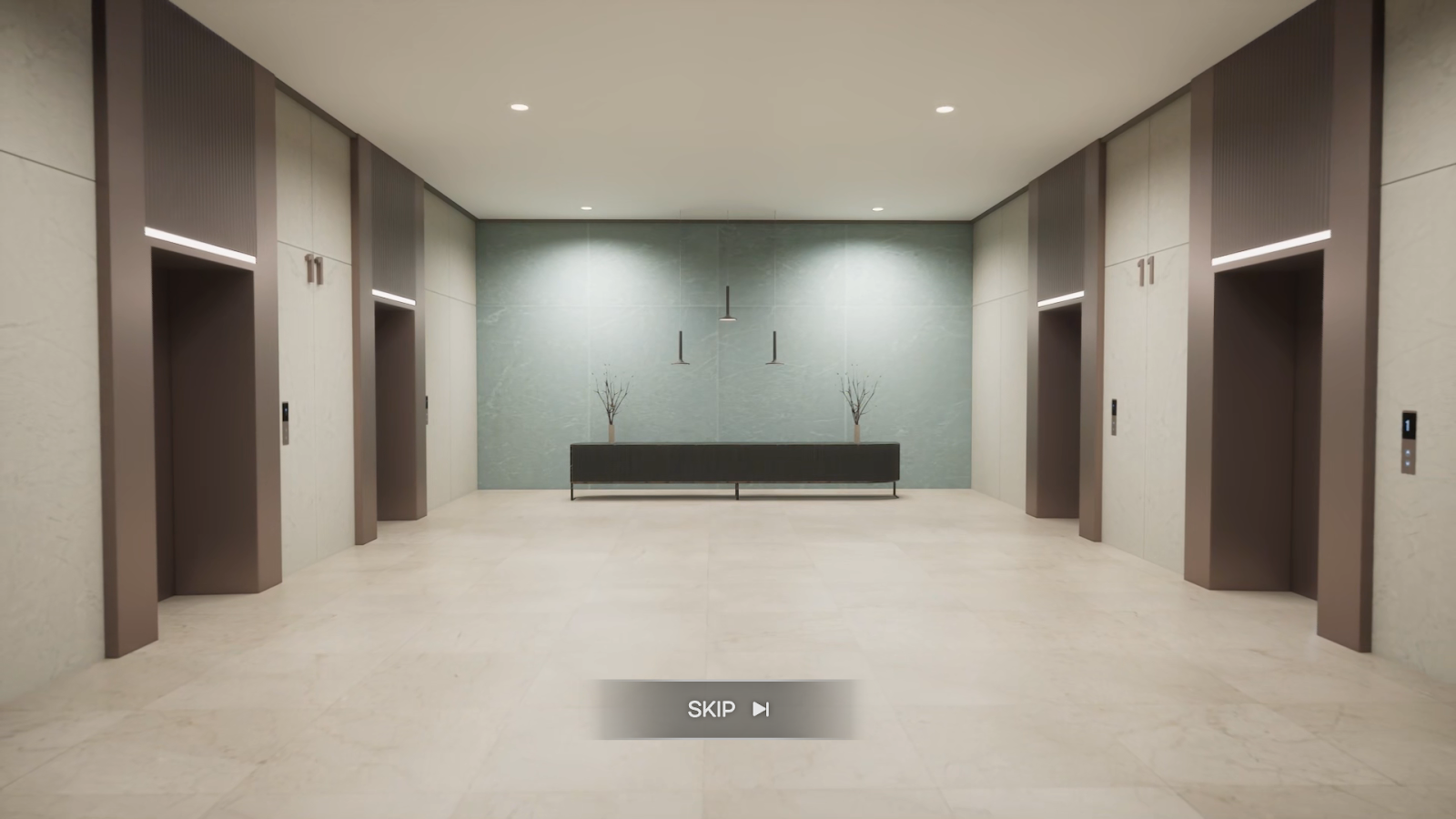

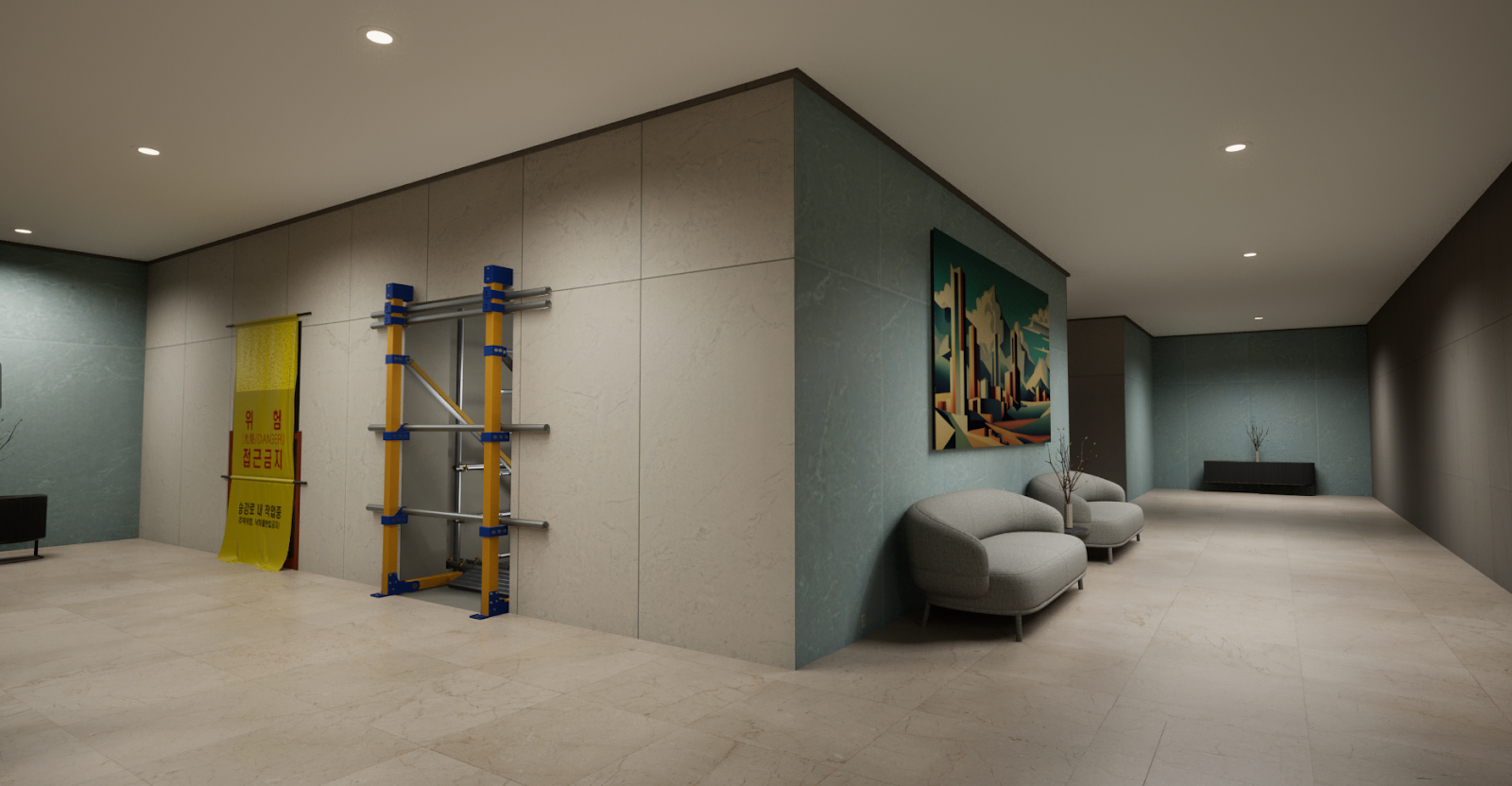

The entire building is recreated in 3D, allowing free exploration from the lobby to the exterior, and the structure of each floor. Through navigation functions, users can immerse themselves from various perspectives. In particular, all the components required for MRL elevator installation are realistically reproduced from the pit to the upper floor, enabling vivid simulation of the entire installation process before actual construction.
02. Procedure-Based Framework Development :
The entire process—including procedures, education, training, and response—is developed with our proprietary standardized framework (IMBuilder-C/CBT), applying XR-based user-centric UI/UX design. Quiz questions can be modified, enabling flexible future expansions.

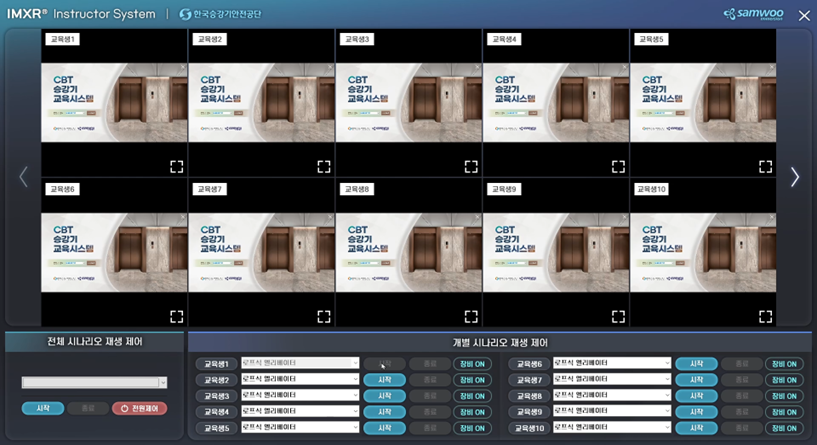

03. Instructor Control Integration :
The system is built so that the content can be experienced on each PC in the training room, and all computers in operation are integrated with the e-podium and 20 PCs within the experience center. This enables real-time monitoring of each CBT participant's progress, as well as power management, content operation, and system control, either individually or collectively.
MXR® MRL Elevator Installation CBT Features

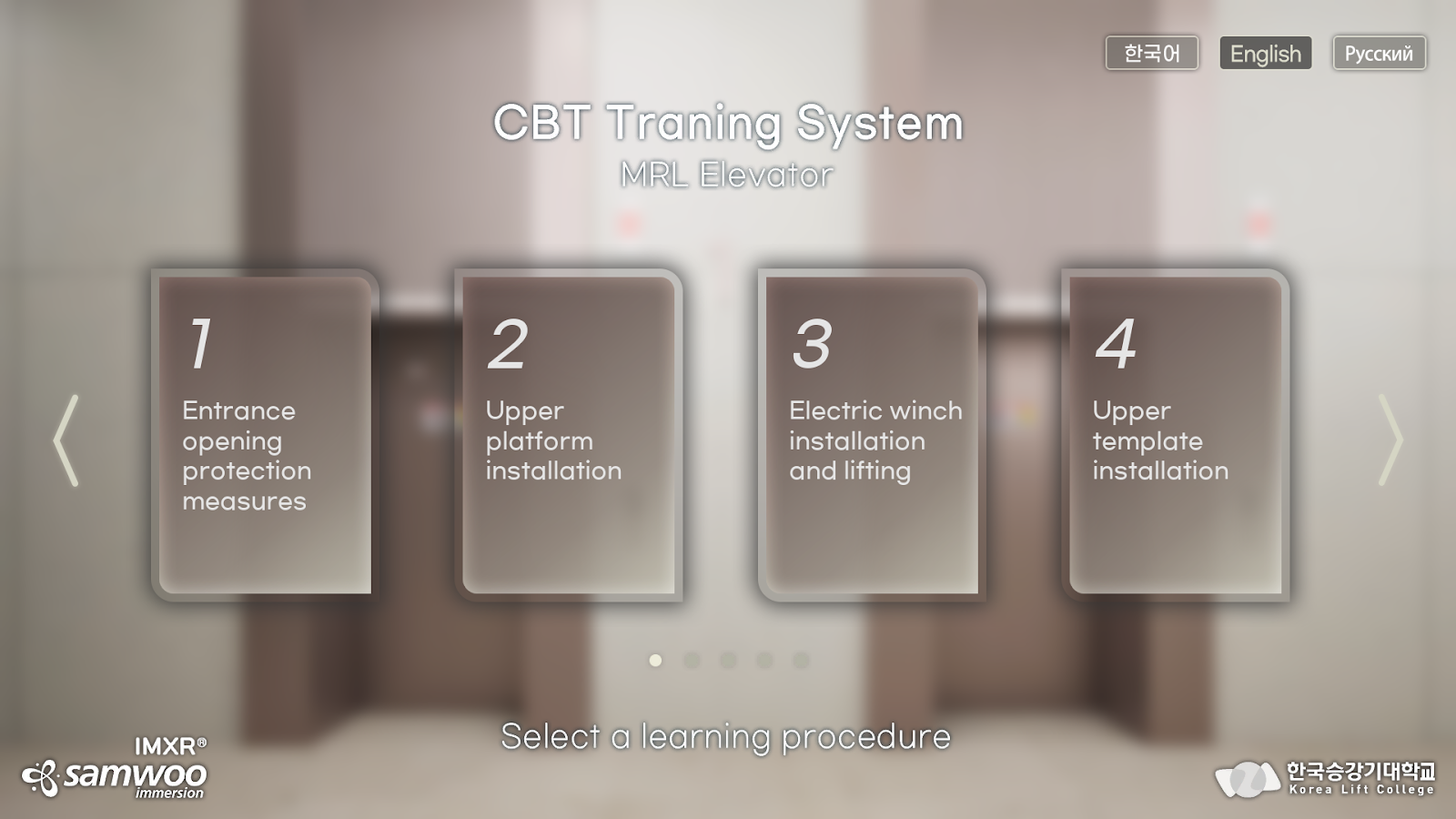

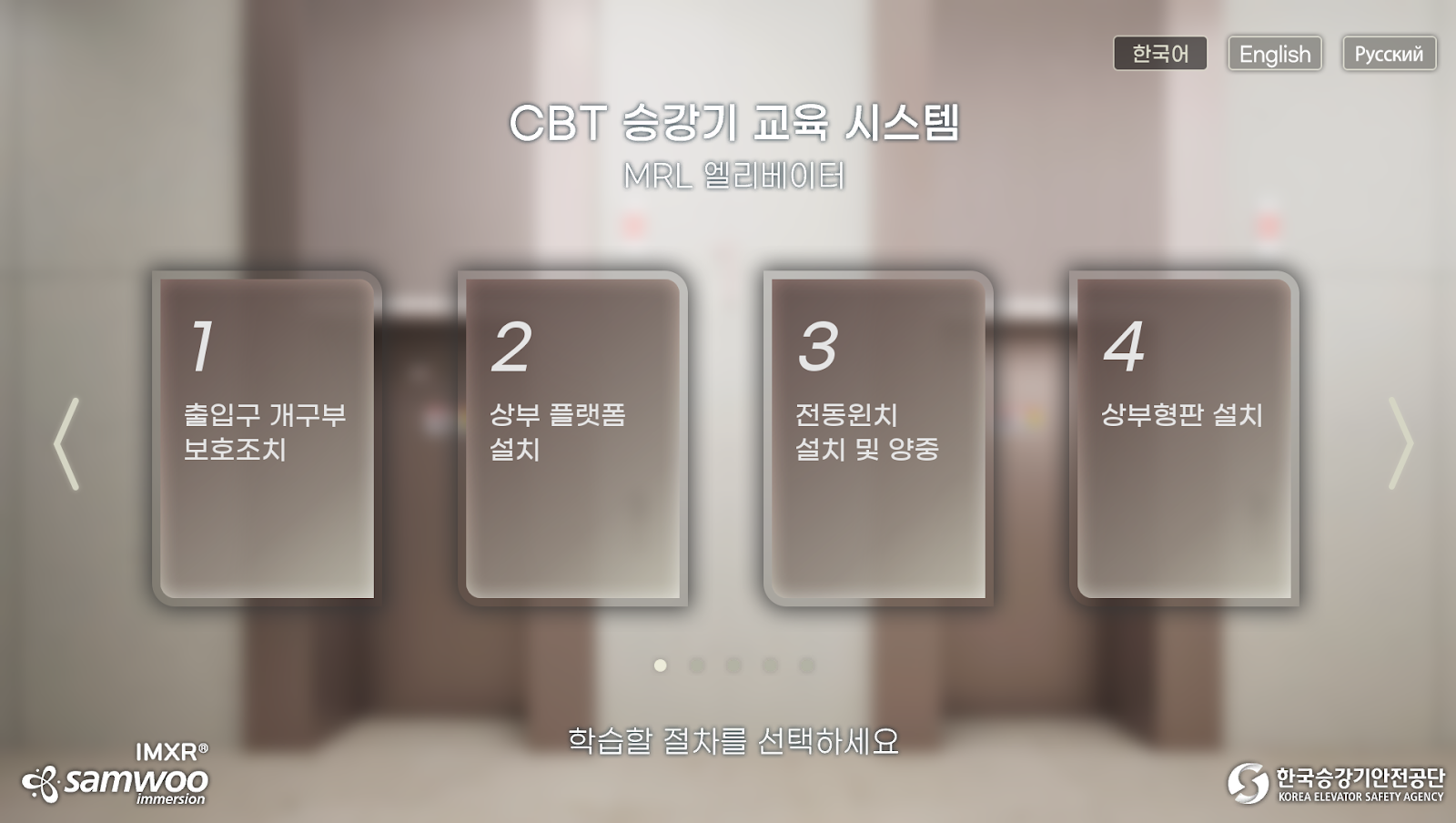

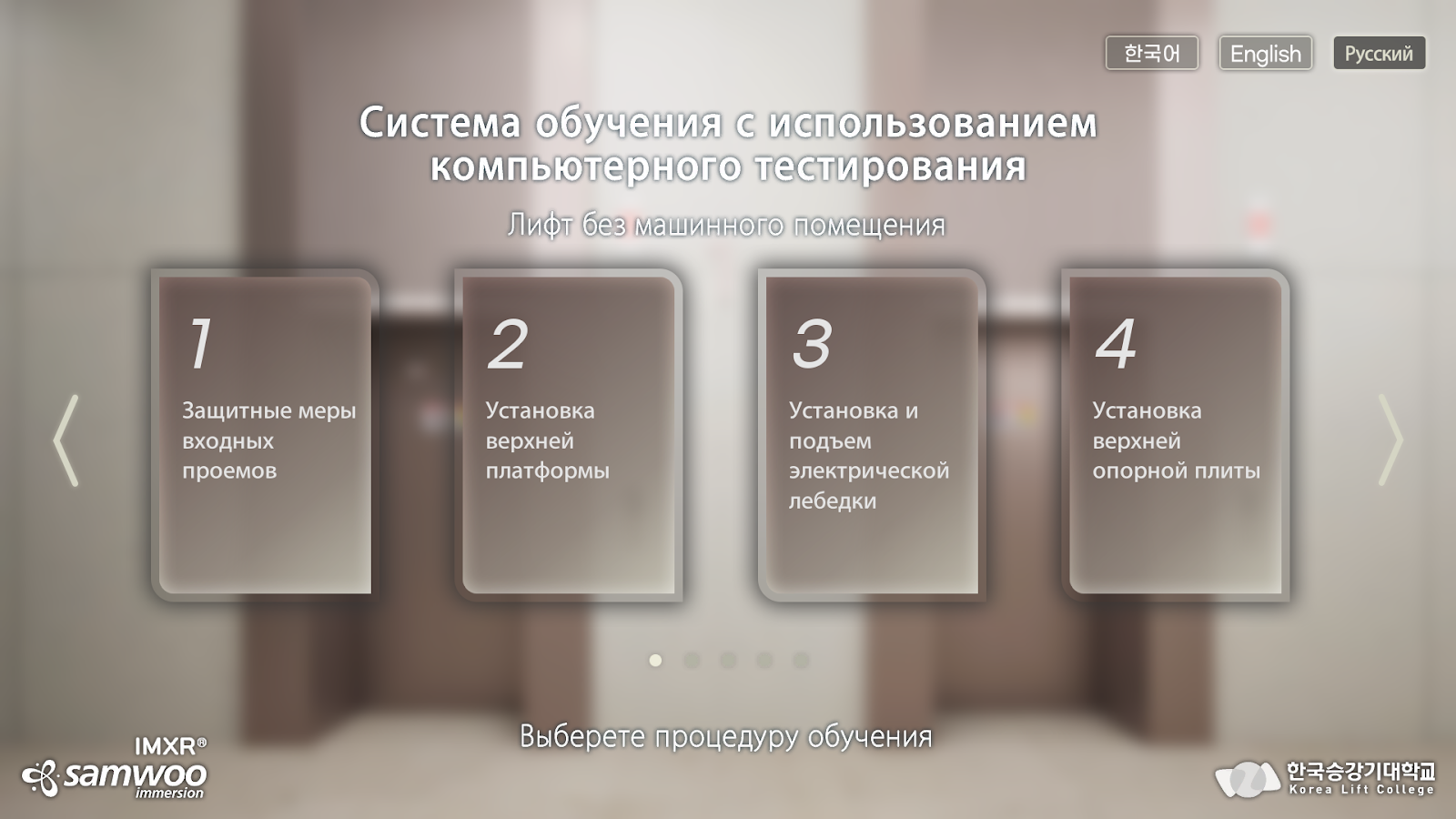

01. Multilingual Support:
Supports Korean, English, and Russian so that not only domestic users but also international students can learn without language barriers. It is optimized for global learning environments, enabling learners of various nationalities to experience the same content.

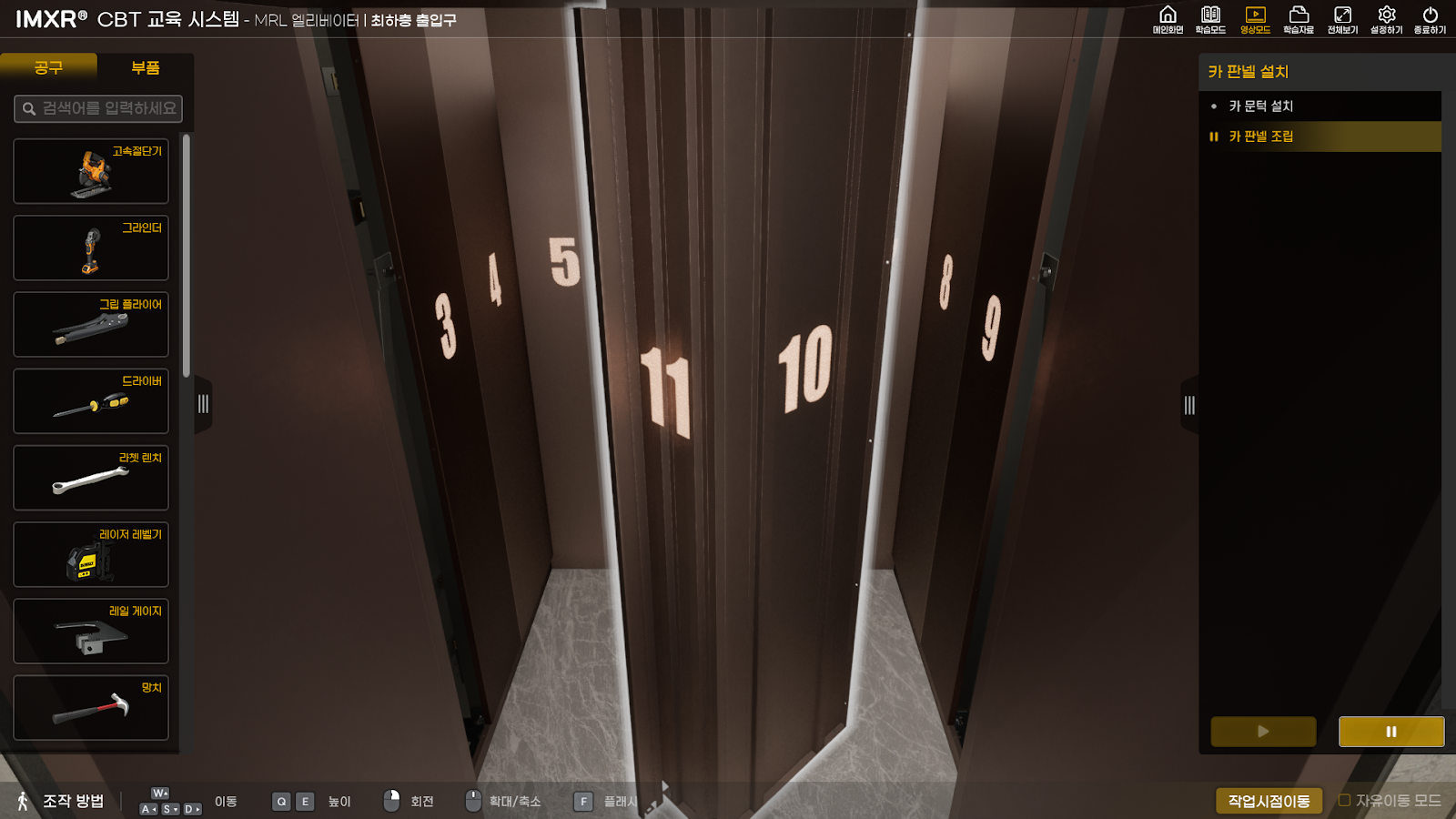

02. Intuitive Virtual Navigation:
Users can freely explore the training space in a computer-based VR environment with a 360-degree view, and easily move to each work location using the CBT navigation menu. A total of 112 parts and 22 tools are precisely modeled, allowing users to select and assemble the necessary materials for each process, and naturally learn the functions and uses of each part.

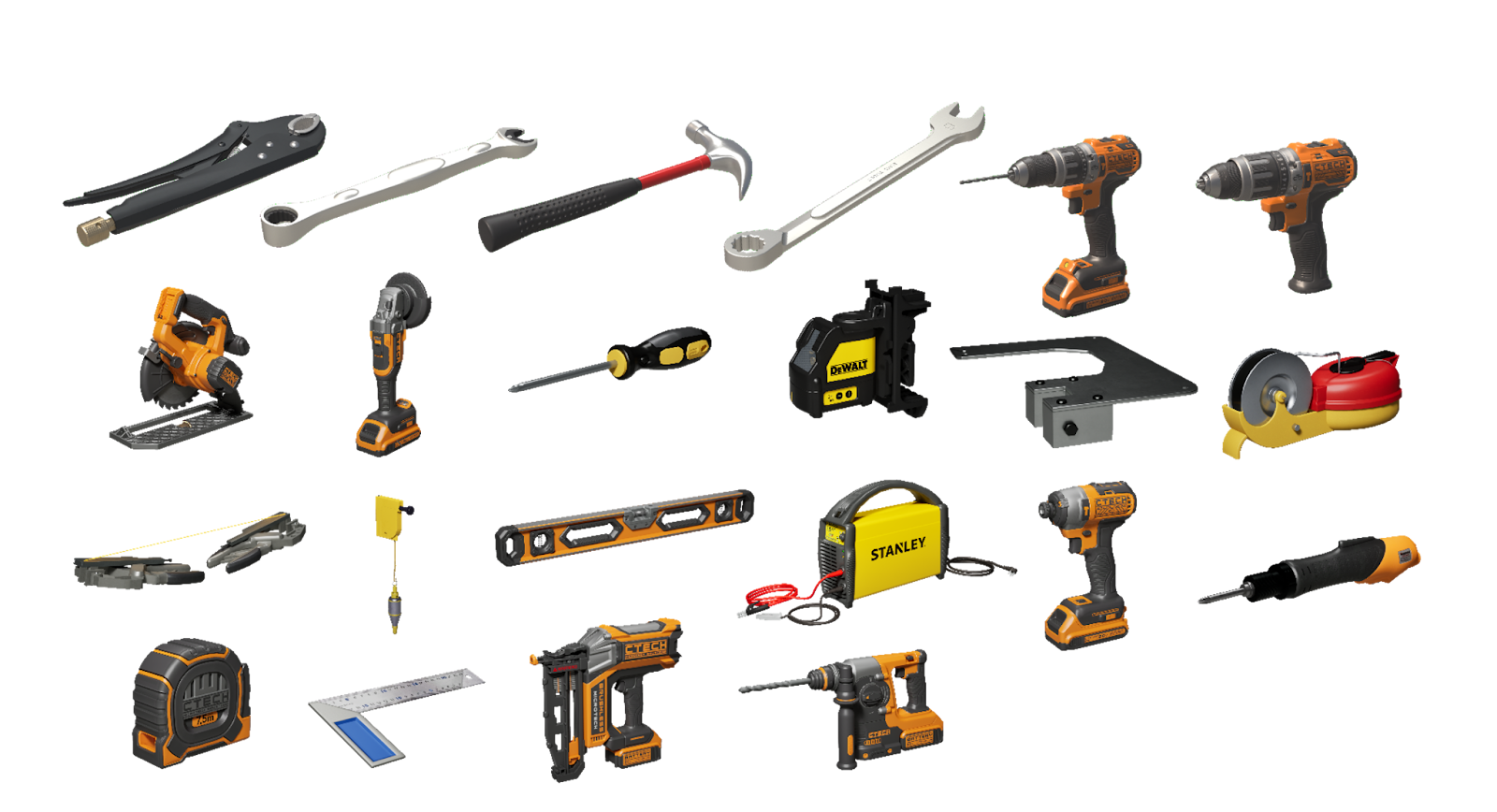

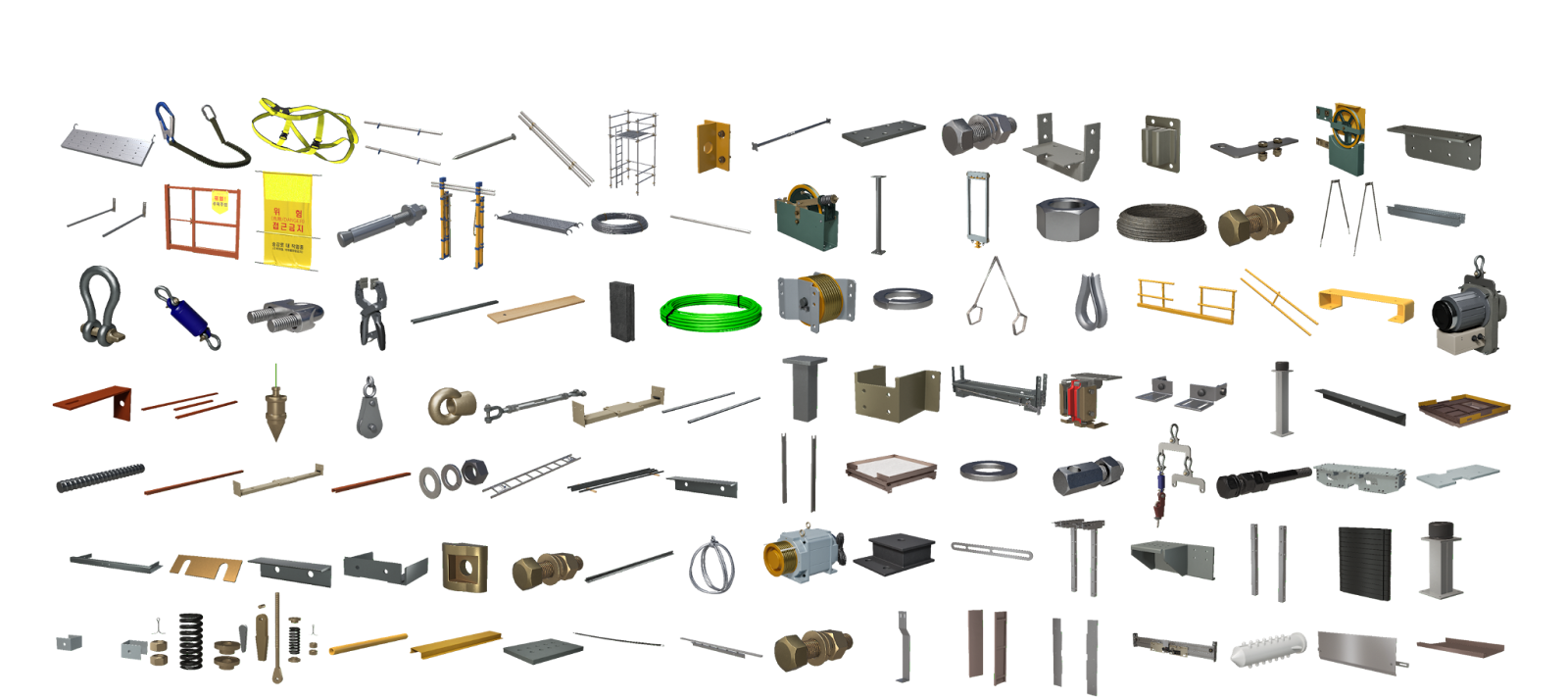

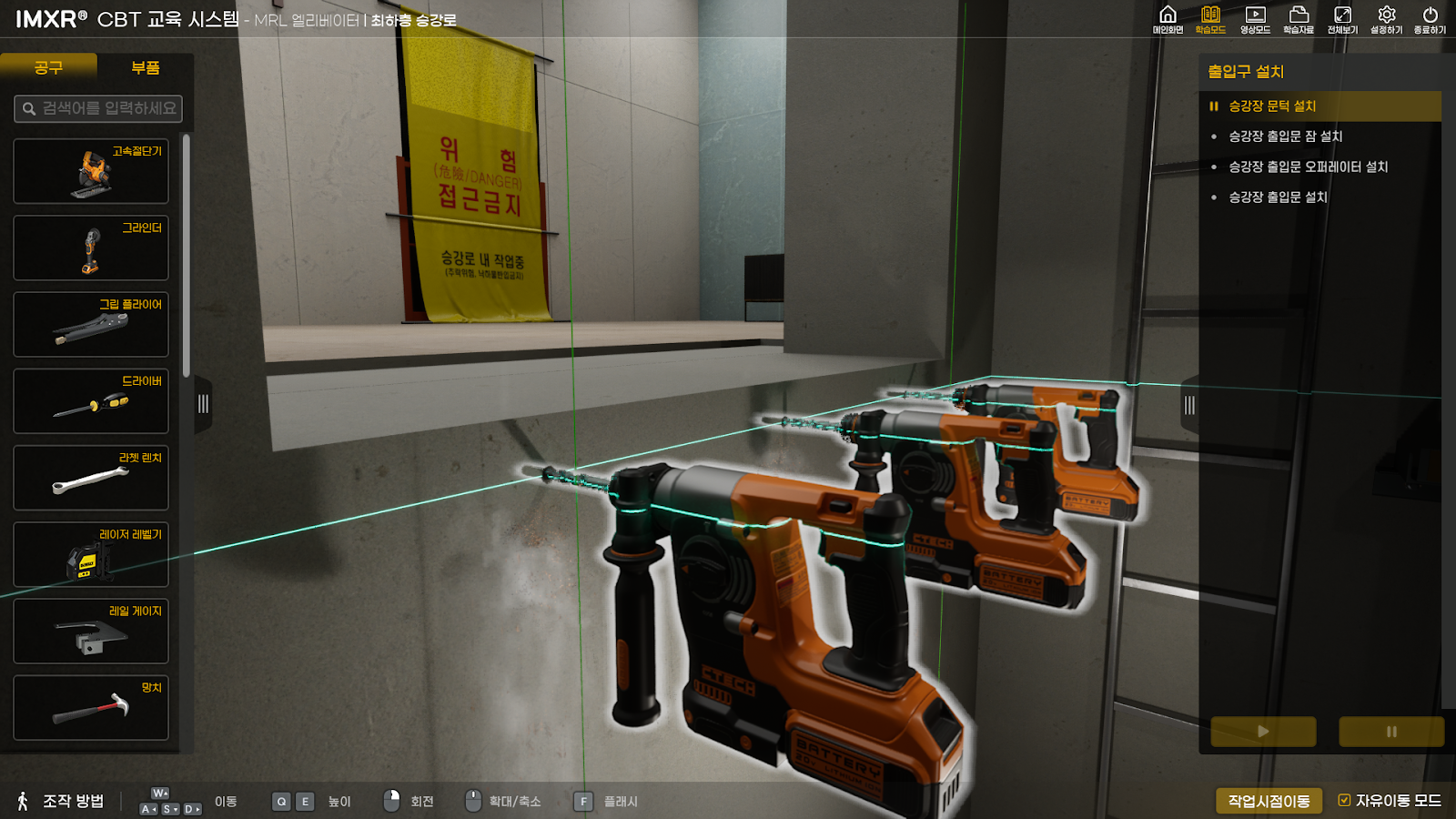

03. Precise Implementation of Parts and Tools:
All 112 parts and 22 tools used in the actual elevator installation process are implemented as 3D models, enabling realistic training. Users can observe and manipulate each component from multiple angles, simulating the real assembly process during learning.

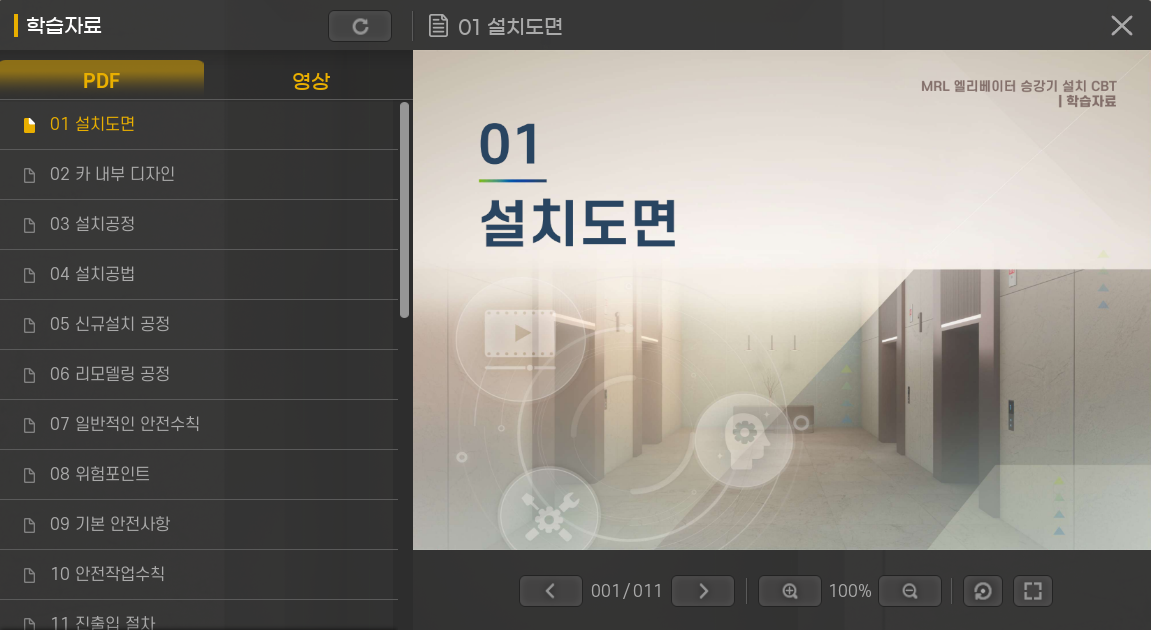

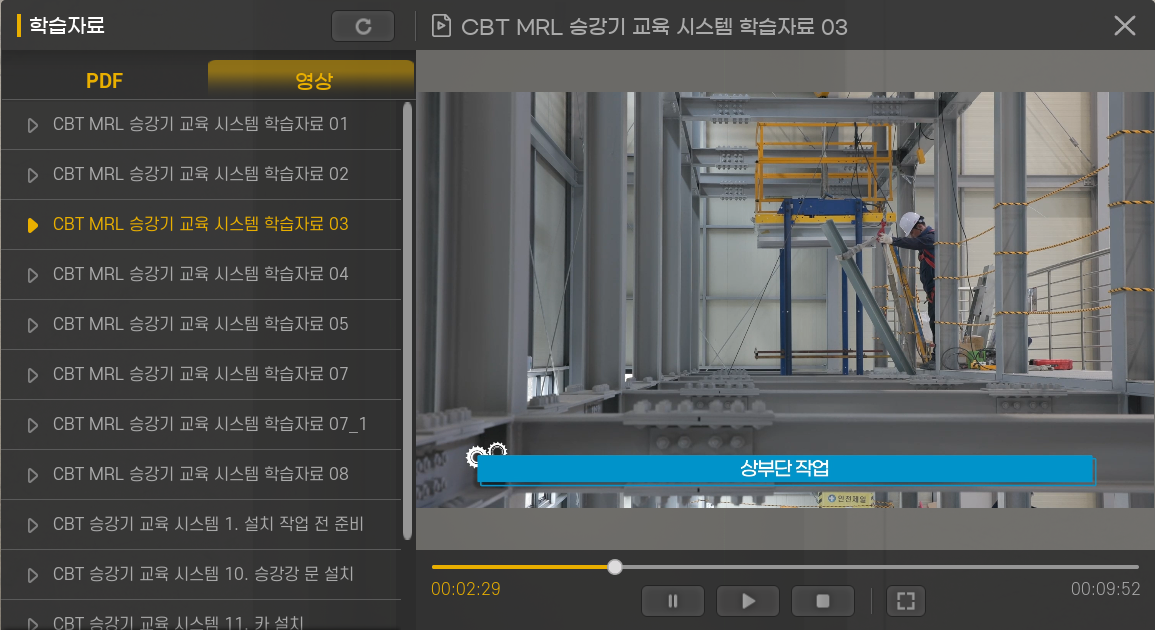

04. Extensive Learning Resources:
PDF manuals and video materials are provided at any time during CBT, deepening the learning experience. These resources are produced directly by the Korea Elevator Safety Agency and Korea Elevator University, maximizing learning effects through the organic connection of theory and practice. These materials can be checked without switching windows even during content execution, and learners can use them for self-study outside of class hours.

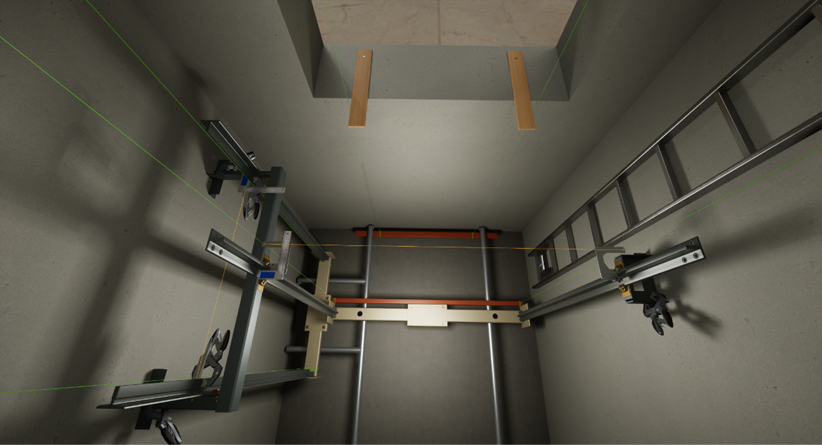

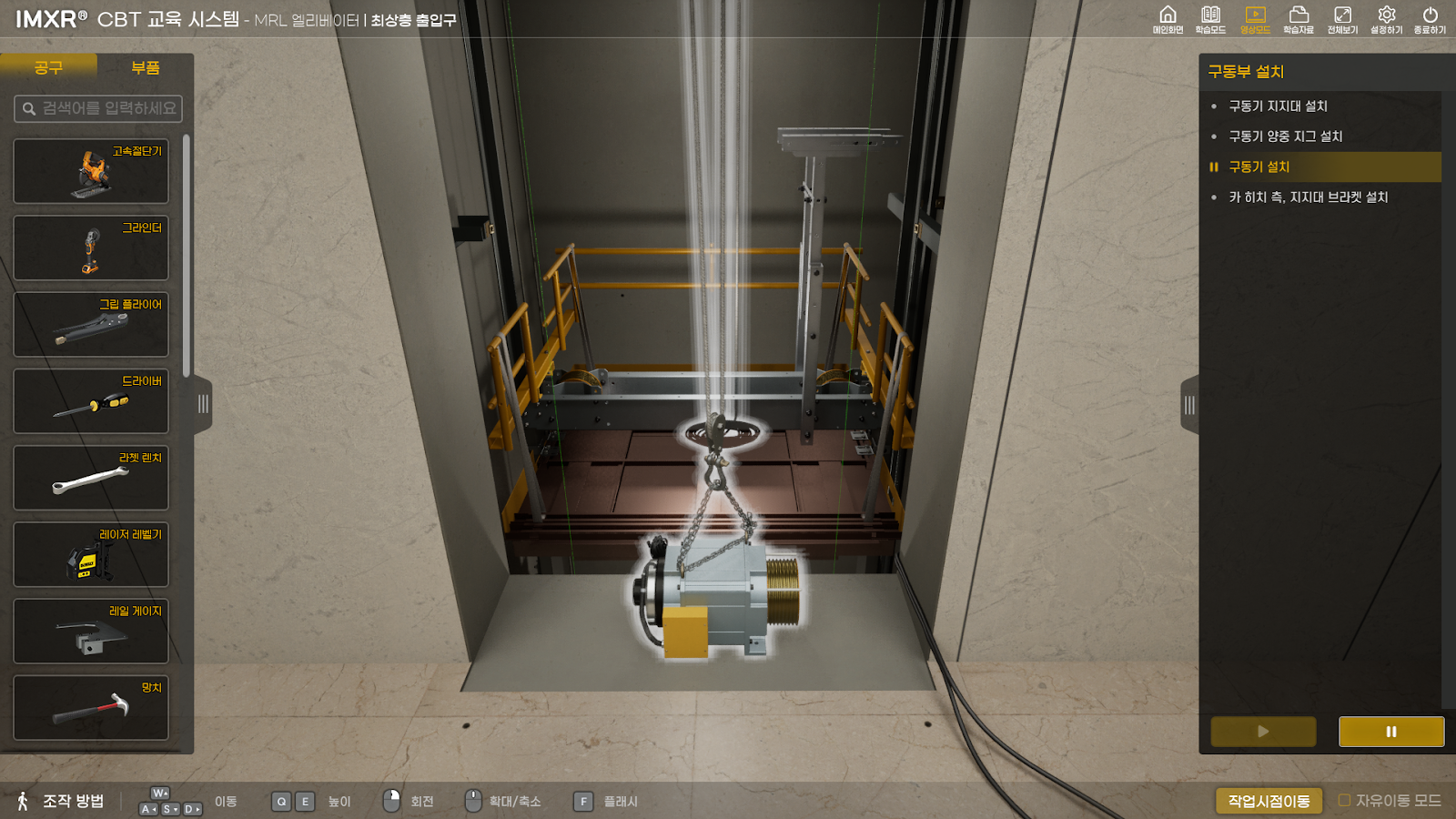

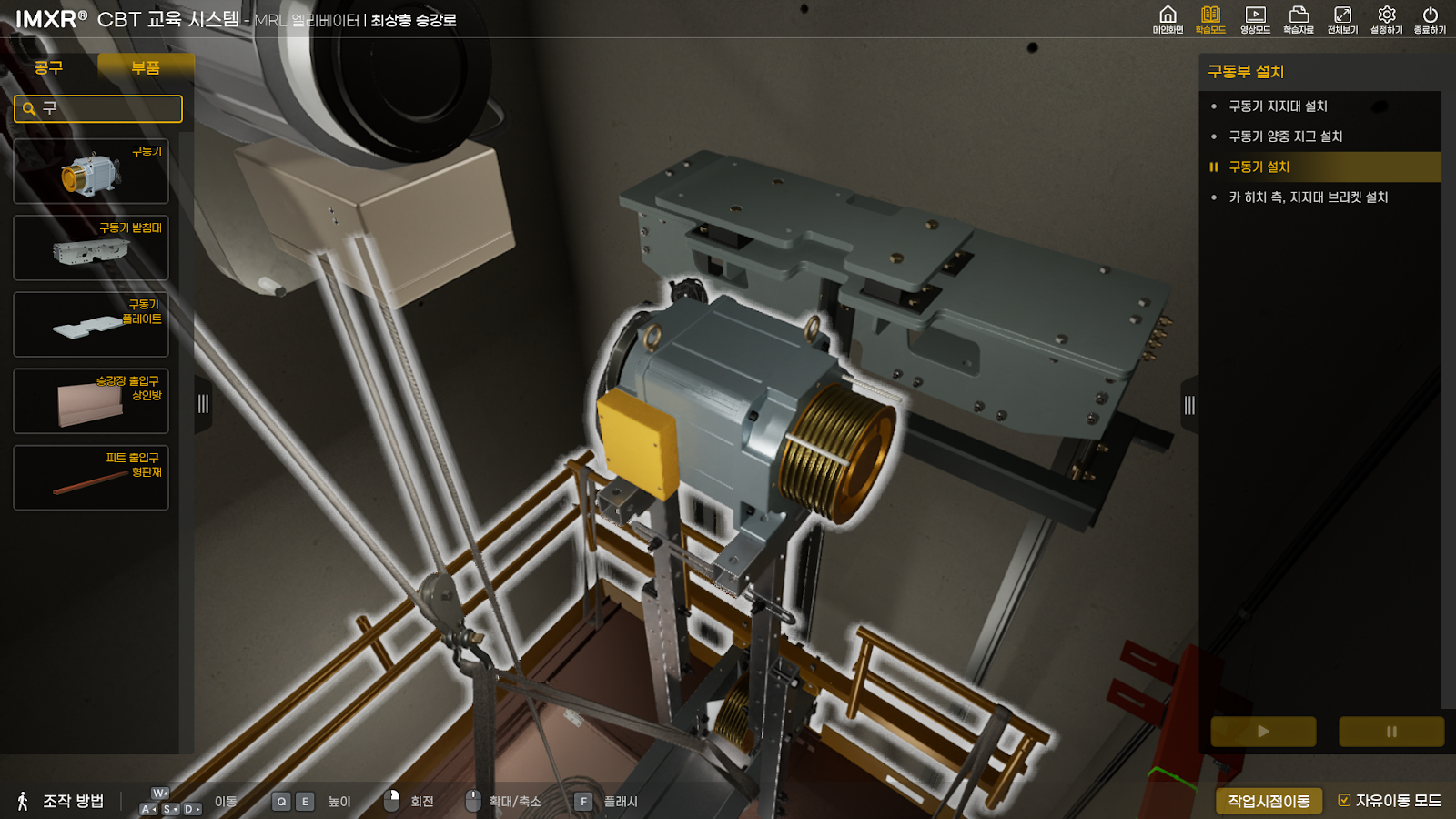

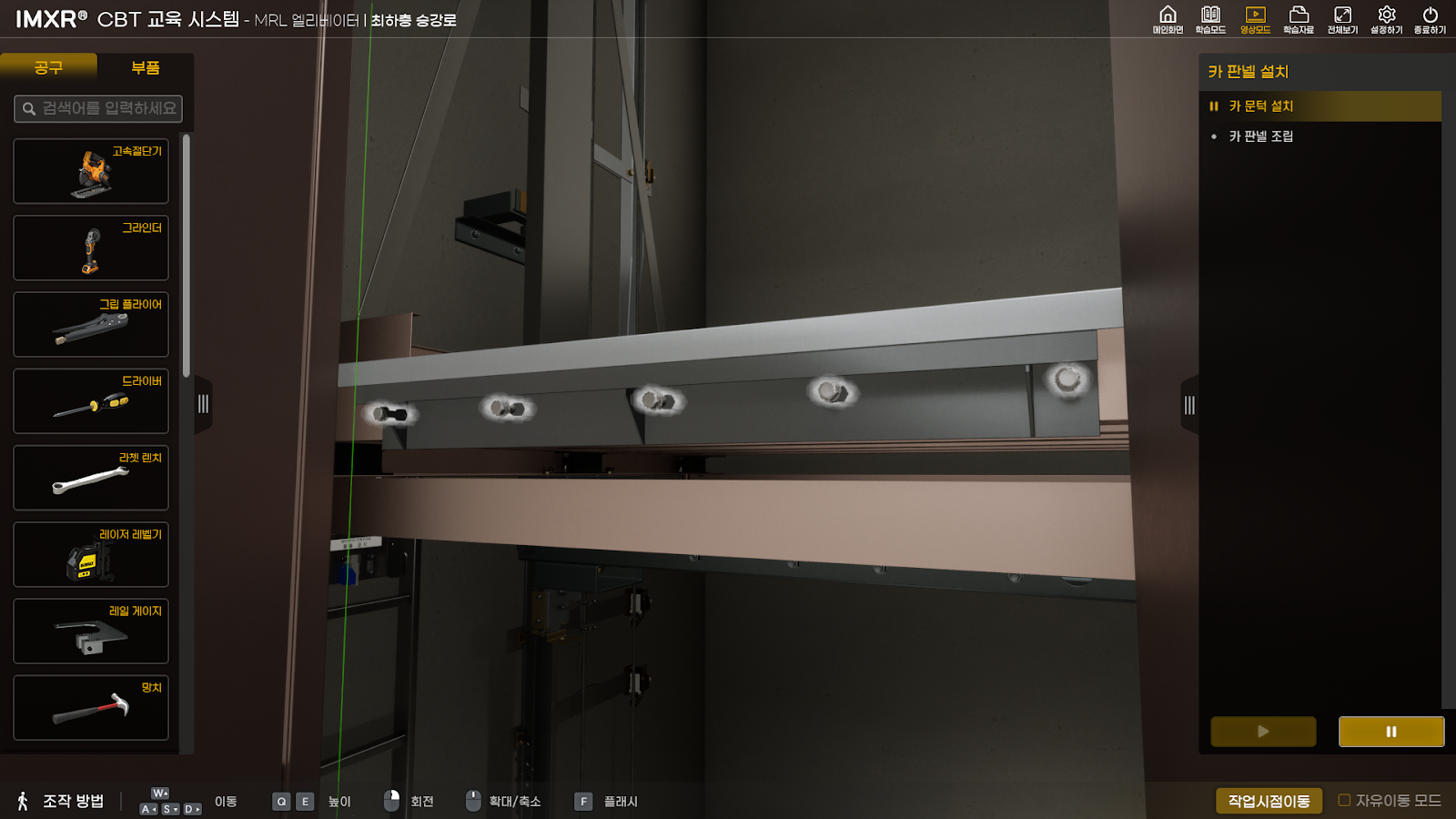

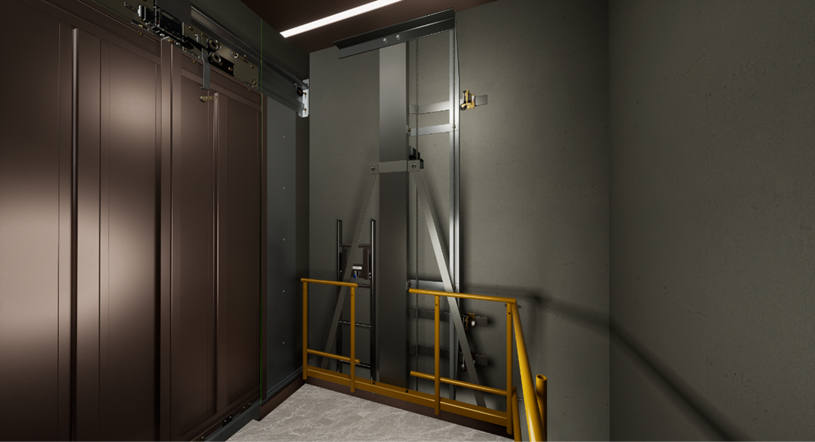

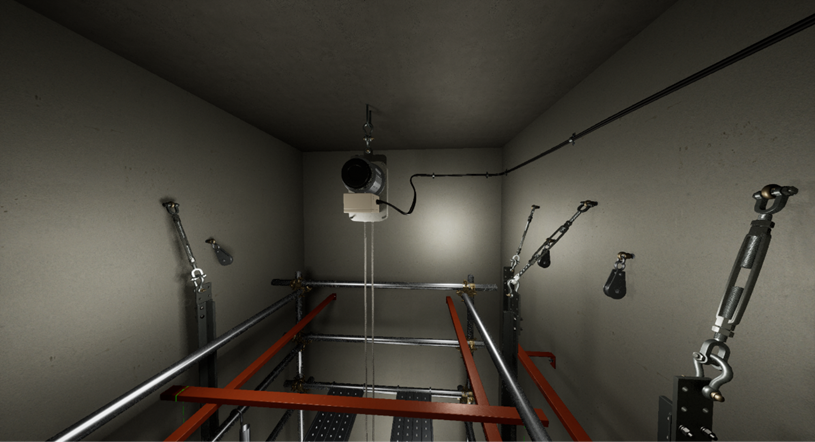

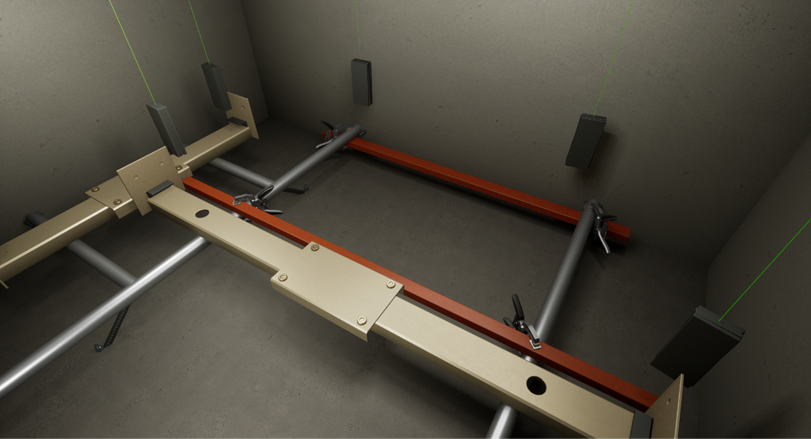

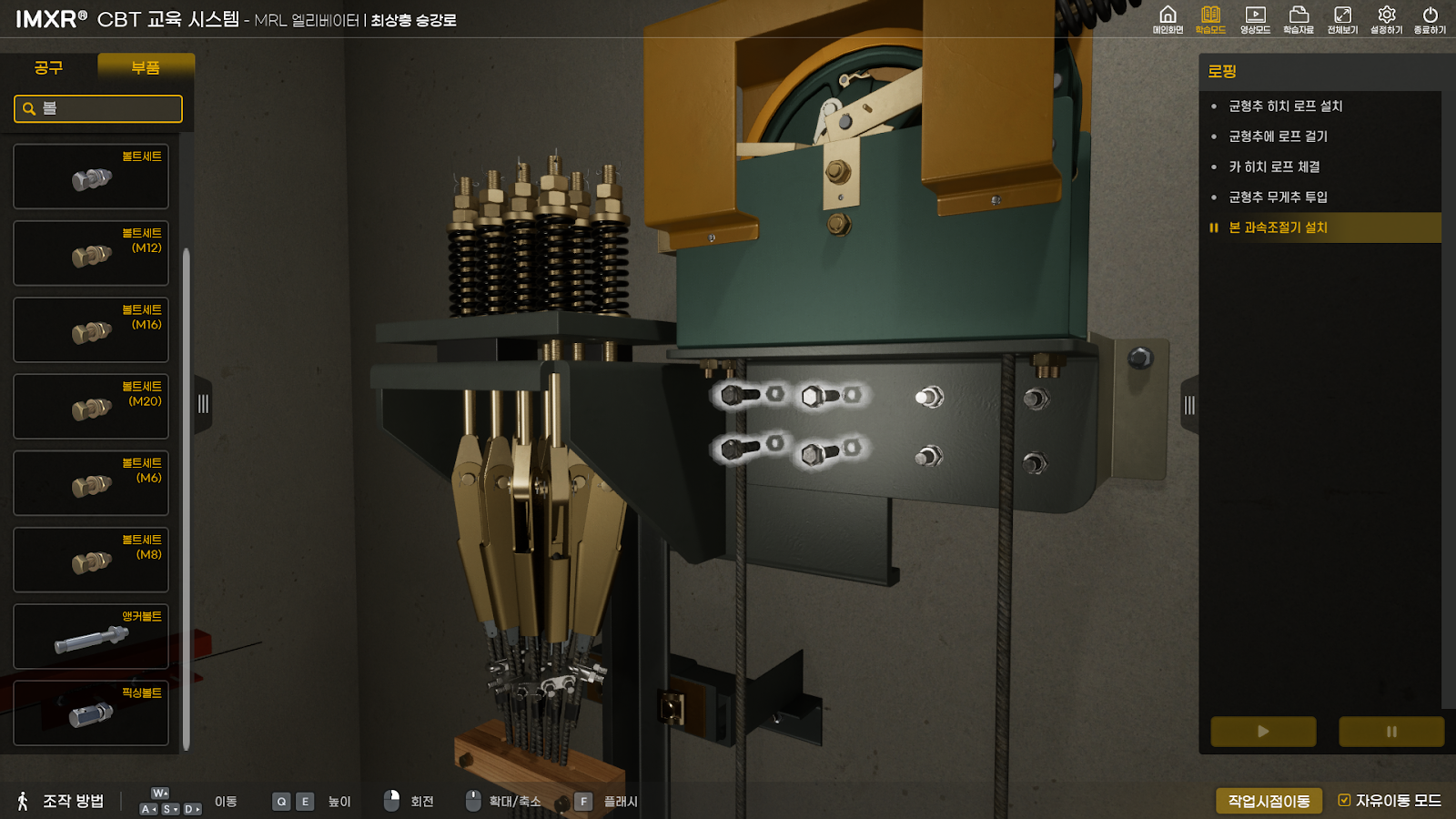

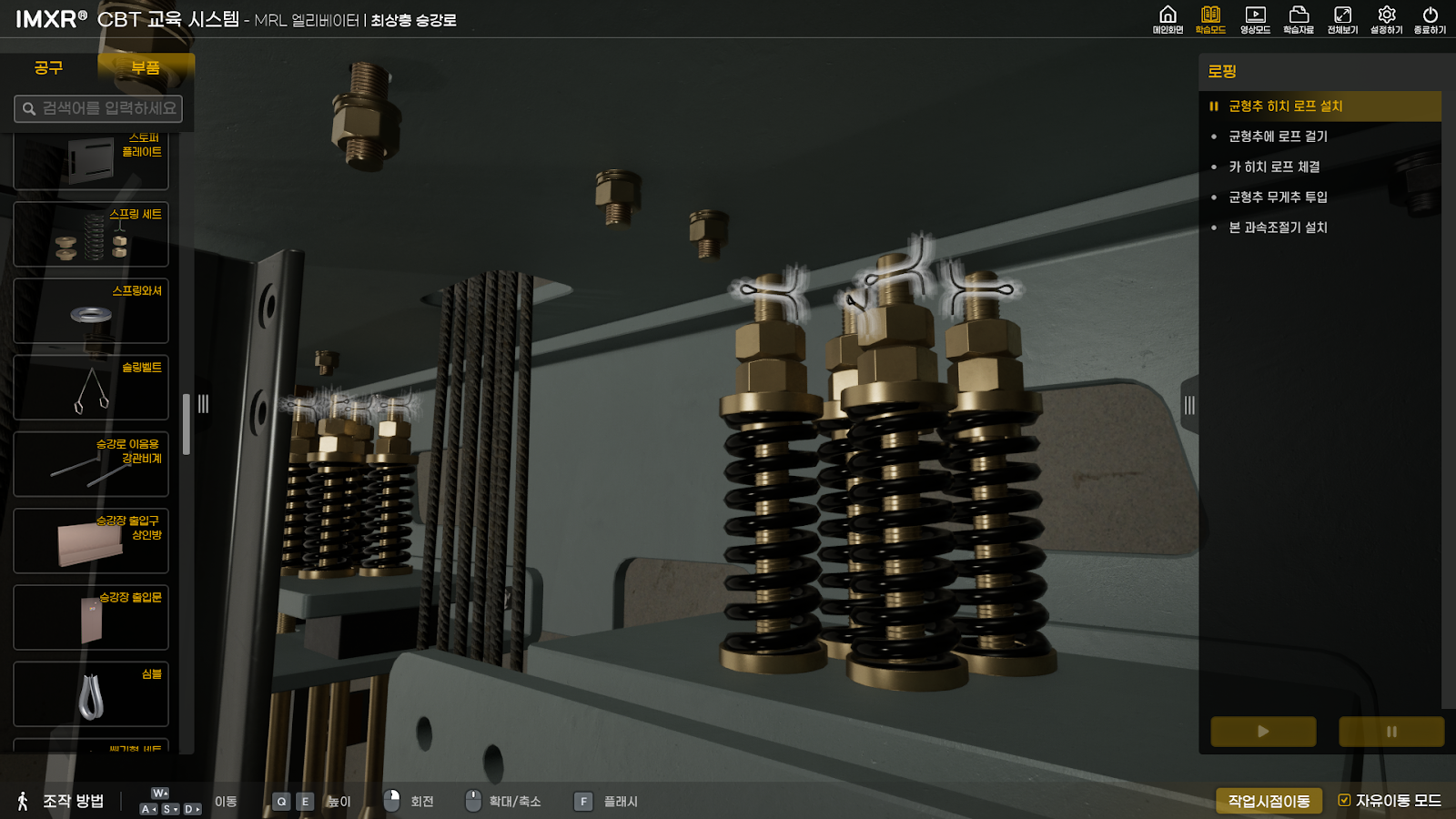

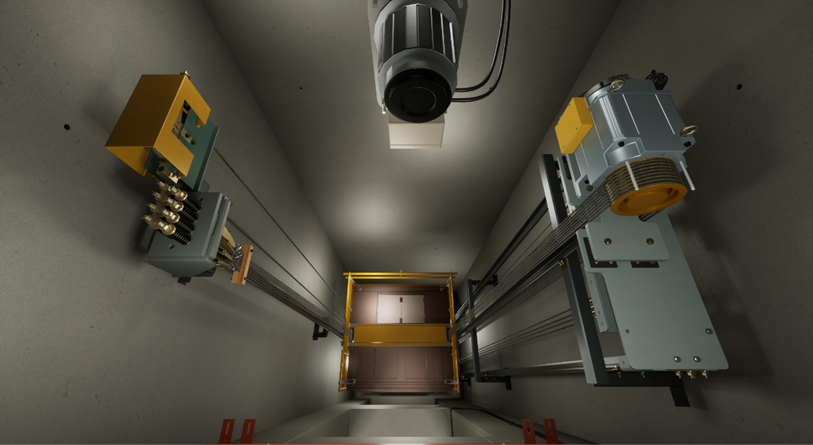

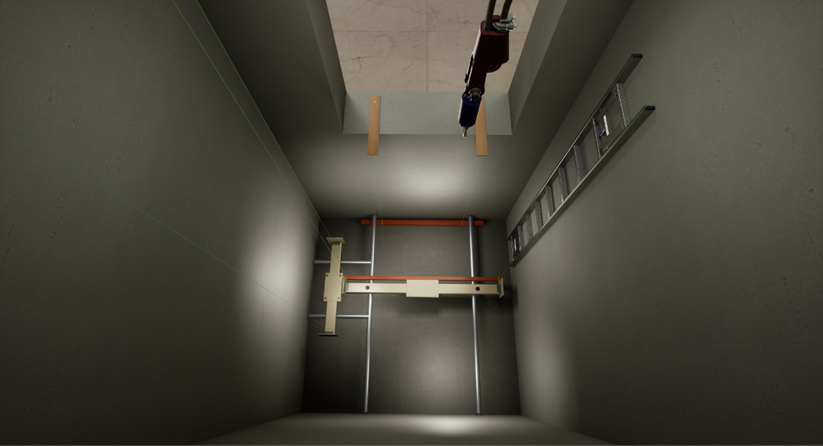

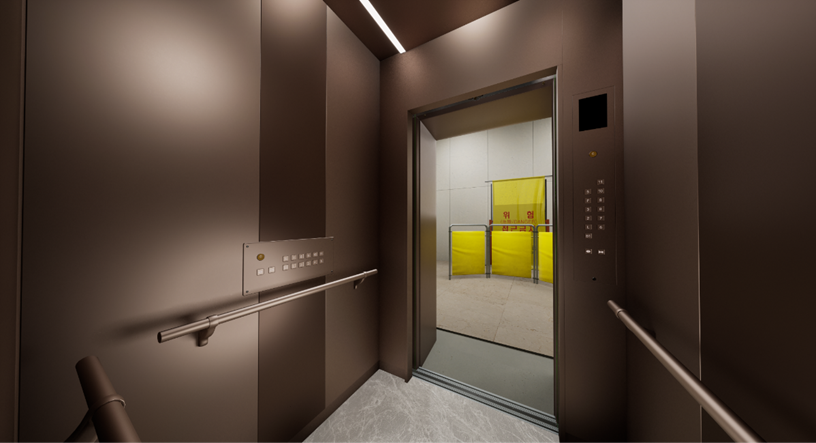

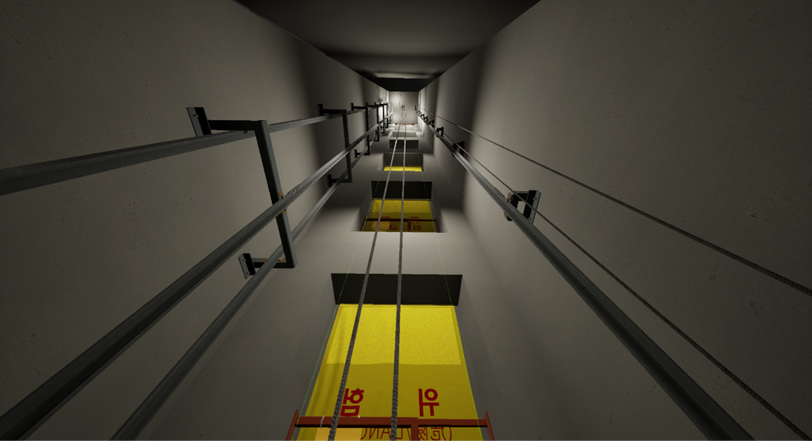

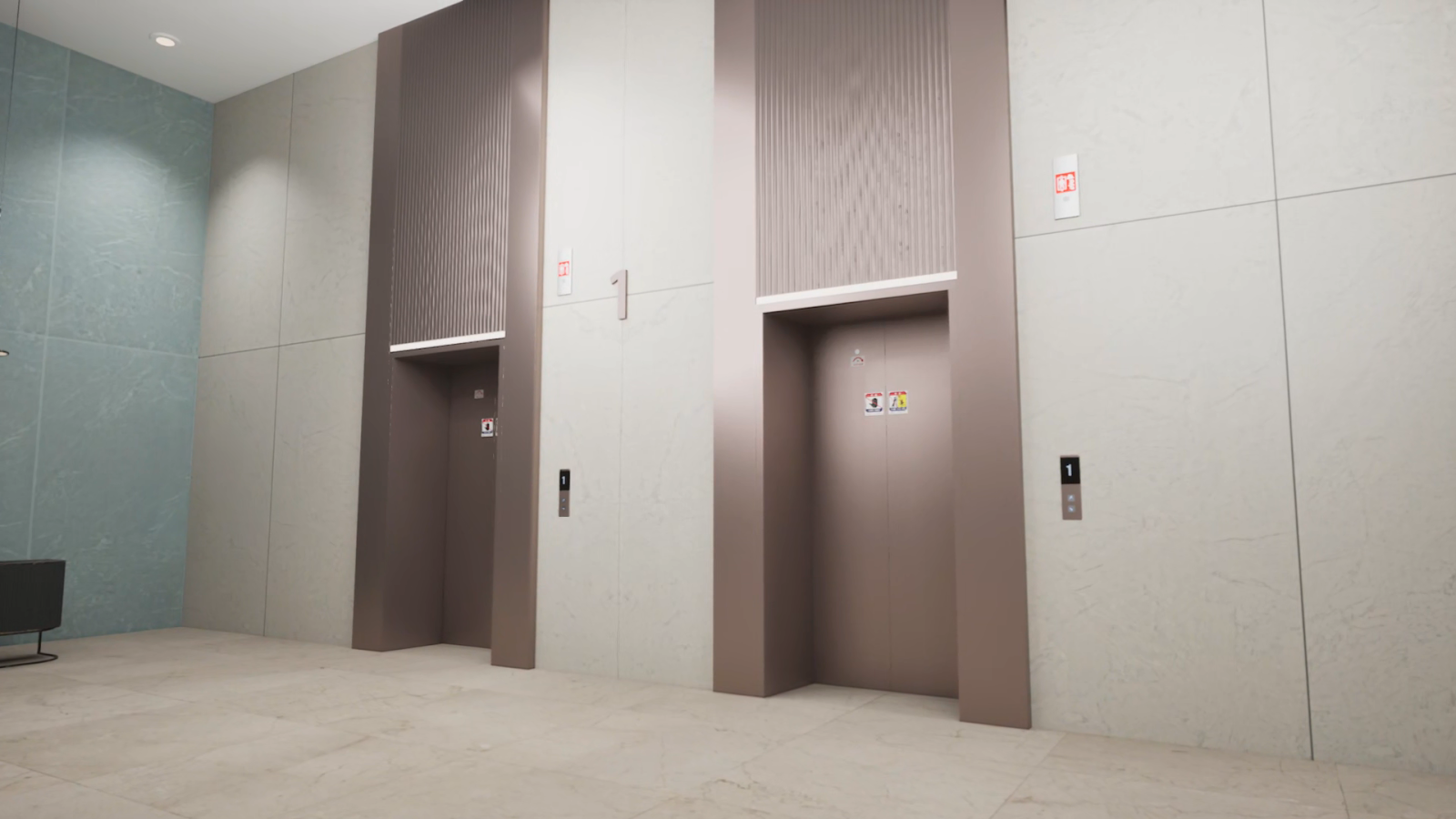

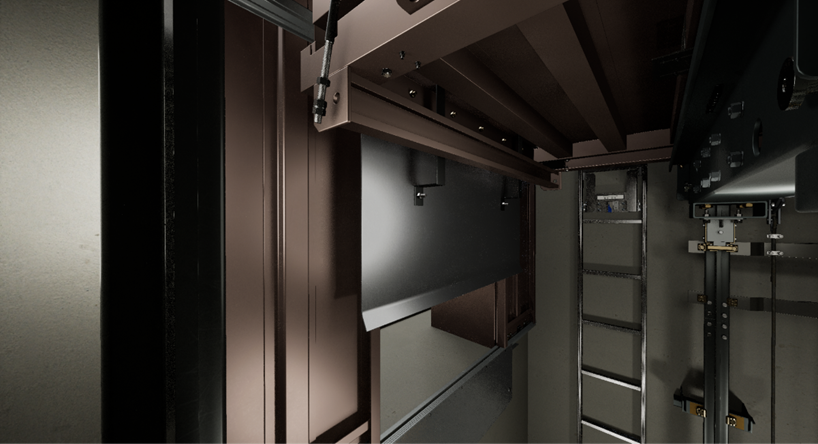

Main scenes of the content
Implementation Case
The first step in digital innovation for hands-on job training—IMXR MRL Elevator CBT Content is with educational institutions and industry sites.
The moment you immerse, you grow! Maximize your capabilities with XR and AI (X-RAI) technology.
If you have any questions about this Samwoo Immersion content or want to inquire about purchasing,
click the 'Inquiry' button below for more information and purchase assistance.
Inquiry
📞 Phone Inquiry | 1600-1663 ✉ Email Inquiry | info@samwooim.com
* Please be sure to include your company information and contact details.
📅 Business Hours | Weekdays 9:30~18:30 * Lunch: 12:30 ~ 13:30 (Closed on weekends and public holidays)
Implementing the Complex Process
of MRL Elevator Installation as CBT
IMXR® Job Training CBT Content
This is CBT (Computer Based Training) content developed to help users effectively understand the MRL elevator installation process and learn core technologies and installation procedures through hands-on practice. This content is composed of a total of 19 MRL elevator installation scenario steps, allowing users to participate in each stage of the installation through simulation play for immersive learning. Each scenario is designed and verified by field operators and technical experts. PDF manuals and video resources are provided to enhance understanding and support repeated learning. Learners can sequentially experience key installation procedures in a worksite-like environment, such as selecting installation locations, installing rails, and understanding the core structure of MRL (Machine Room-Less), making this CBT solution optimal for practical job training and pre-safety education.
INTRO
Spatial Constraints · Physical Environment Issues · Lack of Customized Training · Instructor Management Limitations
University training labs face spatial constraints and a lack of equipment, making it difficult for many students to directly experience installation work. The equipment and parts required for hands-on training are limited, so it is hard to provide enough time for repeated learning or improving proficiency. In addition, environments like mechanical parts rooms can be physically challenging due to high temperatures in summer or heavy equipment, making it hard to concentrate in class. When one instructor must teach and manage multiple students simultaneously, the quality of learning naturally declines, resulting in many practical limitations for effective, site-oriented hands-on training.
SOLUTION :
IMXR MRL Elevator CBT Content was developed to overcome the limitations of traditional hands-on environments and provide a more effective learning experience. This content consists of 19 scenarios, allowing users to directly perform the elevator installation process step-by-step in a virtual environment, as if they were handling actual tools and parts. Computer-based virtual training enables repeated learning and helps users naturally become familiar with the shapes and installation order of each part. Users do not just watch videos, but actively participate in learning by making their own decisions and operating the process. In addition, with automatic procedural videos, PDF manuals, and educational videos, the content supports a rich learning environment where users can review and understand the material in various ways.
About 5 minutes per scenario
Korean, English, Russian
PC
MRL Elevator Installation CBT Content Structure
MRL (Machine Room-Less) elevator installation is a complex process requiring high safety and precision. To systematically learn and understand this process, the CBT (Computer-Based Training) content is organized step-by-step, following the actual installation sequence and work procedures. Below is a description of the content structure based on the scenario topics and steps.
Main Scenario Topics & Key Scenes
3. Electric Winch Installation & Hoisting
4. Upper Template Installation
5. Inert Installation for Rail Suspension
6. Lower Template Installation
7. Pit Ladder Installation
8. No.1 Guide Rail Installation
9. Pit Working Platform Installation
10. Rail Installation
11. Car Frame Installation
12. Electric Winch 2:1 Roping
13. Removal of Upper Shaft Platform
14. Drive Unit Installation
15. Roping
16. Entrance Installation
17. CAM ASSY & FLS ASSY Installation
18. Car Panel Installation
19. Car Parts Installation
Specialized Technologies of MRL Elevator Installation CBT Content
01. Realistic Environment Simulation :
The entire building is recreated in 3D, allowing free exploration from the lobby to the exterior, and the structure of each floor. Through navigation functions, users can immerse themselves from various perspectives. In particular, all the components required for MRL elevator installation are realistically reproduced from the pit to the upper floor, enabling vivid simulation of the entire installation process before actual construction.
02. Procedure-Based Framework Development :
The entire process—including procedures, education, training, and response—is developed with our proprietary standardized framework (IMBuilder-C/CBT), applying XR-based user-centric UI/UX design. Quiz questions can be modified, enabling flexible future expansions.
03. Instructor Control Integration :
The system is built so that the content can be experienced on each PC in the training room, and all computers in operation are integrated with the e-podium and 20 PCs within the experience center. This enables real-time monitoring of each CBT participant's progress, as well as power management, content operation, and system control, either individually or collectively.
MXR® MRL Elevator Installation CBT Features
01. Multilingual Support:
Supports Korean, English, and Russian so that not only domestic users but also international students can learn without language barriers. It is optimized for global learning environments, enabling learners of various nationalities to experience the same content.
02. Intuitive Virtual Navigation:
Users can freely explore the training space in a computer-based VR environment with a 360-degree view, and easily move to each work location using the CBT navigation menu. A total of 112 parts and 22 tools are precisely modeled, allowing users to select and assemble the necessary materials for each process, and naturally learn the functions and uses of each part.
03. Precise Implementation of Parts and Tools:
All 112 parts and 22 tools used in the actual elevator installation process are implemented as 3D models, enabling realistic training. Users can observe and manipulate each component from multiple angles, simulating the real assembly process during learning.
04. Extensive Learning Resources:
PDF manuals and video materials are provided at any time during CBT, deepening the learning experience. These resources are produced directly by the Korea Elevator Safety Agency and Korea Elevator University, maximizing learning effects through the organic connection of theory and practice. These materials can be checked without switching windows even during content execution, and learners can use them for self-study outside of class hours.
Main scenes of the content
Implementation Case

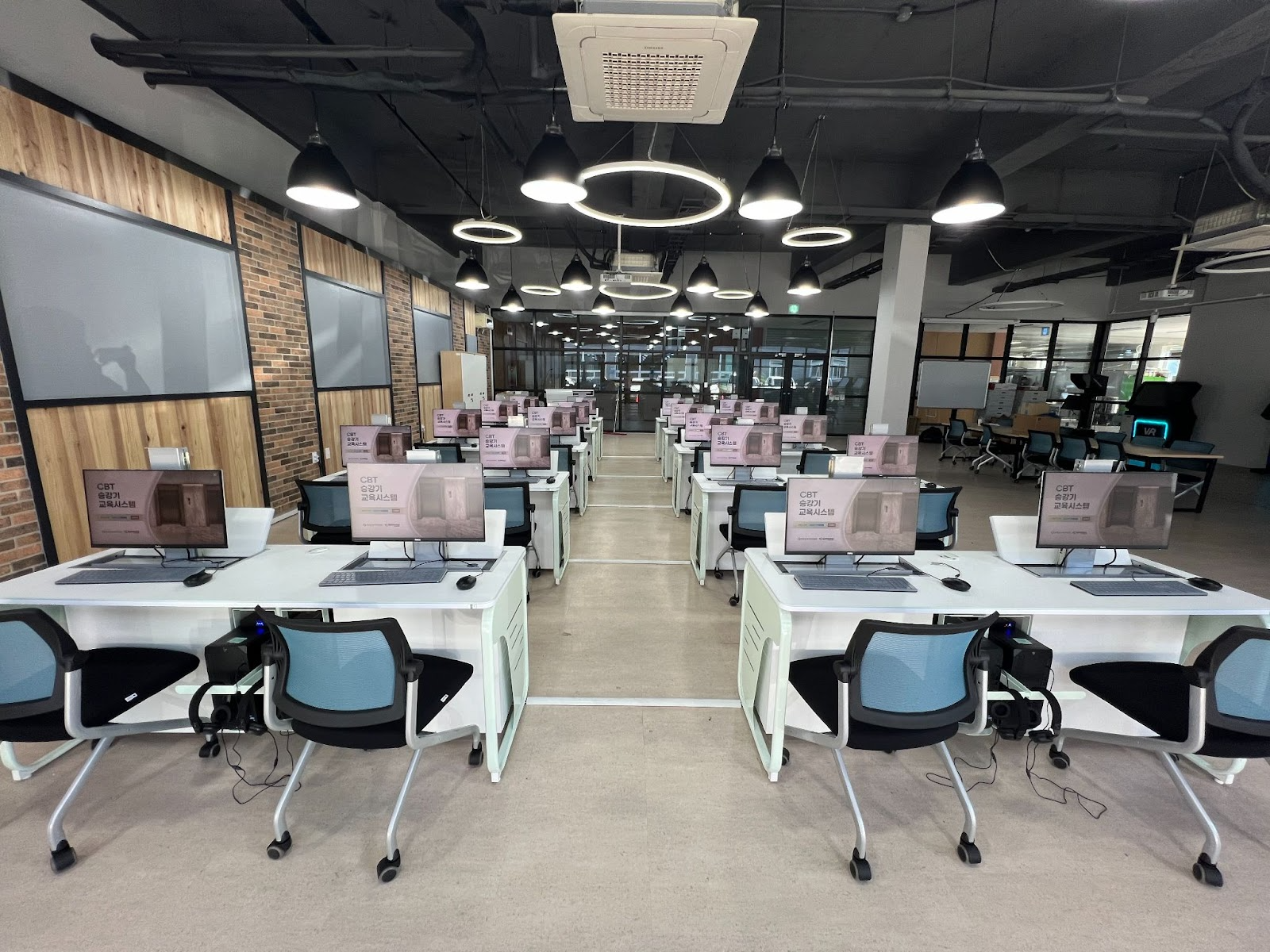

CBT Learning Facility Built at Korea Elevator University (Click here for details)
