Real-Time Collision Risk Monitoring for Marine Construction Sites

Marine Construction Safety Monitoring Digital Twin System

The Smart Marine Construction Safety Monitoring Digital Twin System is built to help prevent collisions between construction vessels and passing vessels near marine construction sites. It receives AIS, radar, and CCTV field data, then overlays vessel information, construction zones, and nautical chart data onto CCTV video through AR-based visualization so operators can quickly understand risk conditions on site.

Client
Project Marine Construction Safety Monitoring Digital Twin System Deployment
Period 2021.03

System Concept

Marine Construction Safety Monitoring Digital Twin System

This integrated safety control system connects CCTV, AIS, radar, and work-vessel operation data collected from marine construction sites into a digital twin environment for real-time visualization. By linking the site and control room in real time, it supports faster and safer decision-making through AI-based collision prediction and risk analysis.

Control Center

AR Mapping System #1

AR Mapping System #2

HDMI Interface
HDMI Interface
Switching Hub (Main)

AR Service

Collision Prediction

Deep Learning Vessel Recognition

WWW
Field Site

Work Vessels / Passing Vessels

Wireless Data Link

LTE / Wireless Network

Intelligent CCTV

AIS Antenna / Receiver

Marine Radar

AIS Data Integration System

Field Switching Hub

SAMWOO IMMERSION Remote Management

Infrastructure maintenance and exception handling support

Smart Alarm App

Sends urgent field push alerts when collision or route risks occur

Key Features

Marine Construction Safety Monitoring Digital Twin System

By connecting field video, vessel positioning data, collision risk analysis, and automated vessel recognition, the system enables operators to monitor work status and risk factors across marine construction zones in an integrated view.

01

AR Service System

Vessel information, construction zones, and nautical chart data are overlaid on CCTV footage from the marine construction site, allowing operators to monitor real-time field conditions. Radar-based positioning data can also be combined so multiple data types can be reviewed on one screen.

AR Service System screen
02

Vessel Collision Prediction System

This AI-based system applies vessel collision detection and avoidance algorithms to identify and assess collision risks involving fishing boats and small coastal vessels. It is based on a navigation risk assessment model that combines a collision risk evaluation formula with dynamic ship domains.

Vessel Collision Prediction System screen
03

Deep Learning Vessel Recognition

Vessels captured in CCTV footage are detected through deep learning and camera calibration, then displayed with AIS-based vessel type classification. Expanded image training data improves the accuracy of the vessel classification AI model.

Deep Learning Vessel Recognition screen

Components

Marine Construction Safety Monitoring Digital Twin System

CCTV cameras, AIS antennas, AIS receivers, and related field devices collect vessel position and video data around the marine construction zone. The collected data is transmitted to the control room through network equipment, where operators use AR mapping, collision prediction, and deep-learning vessel recognition systems to understand site conditions.

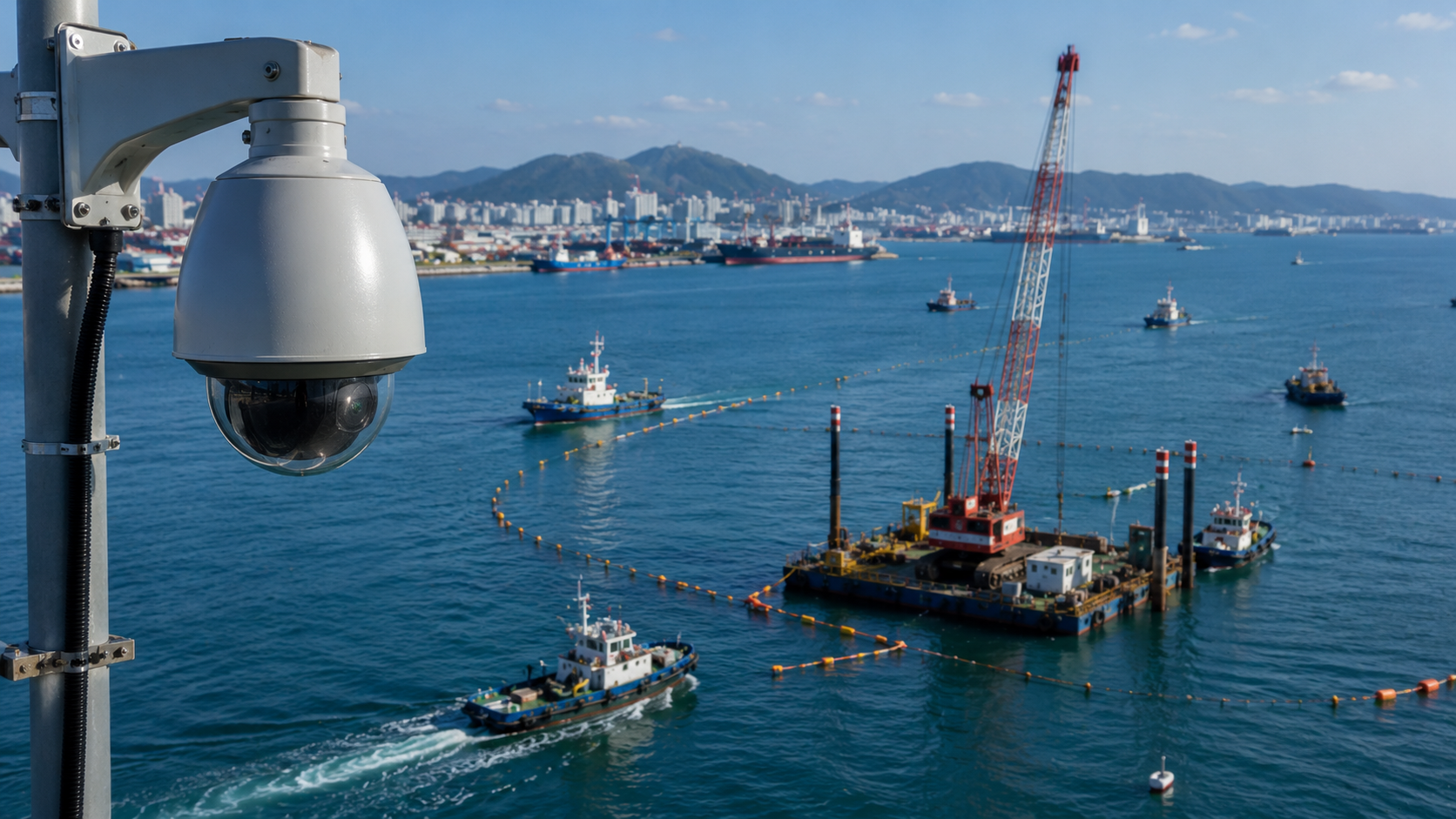

Field data collection equipment

Field Data Collection

CCTV cameras, AIS antennas, AIS receivers, and radar collect position and video data for construction vessels and passing vessels.

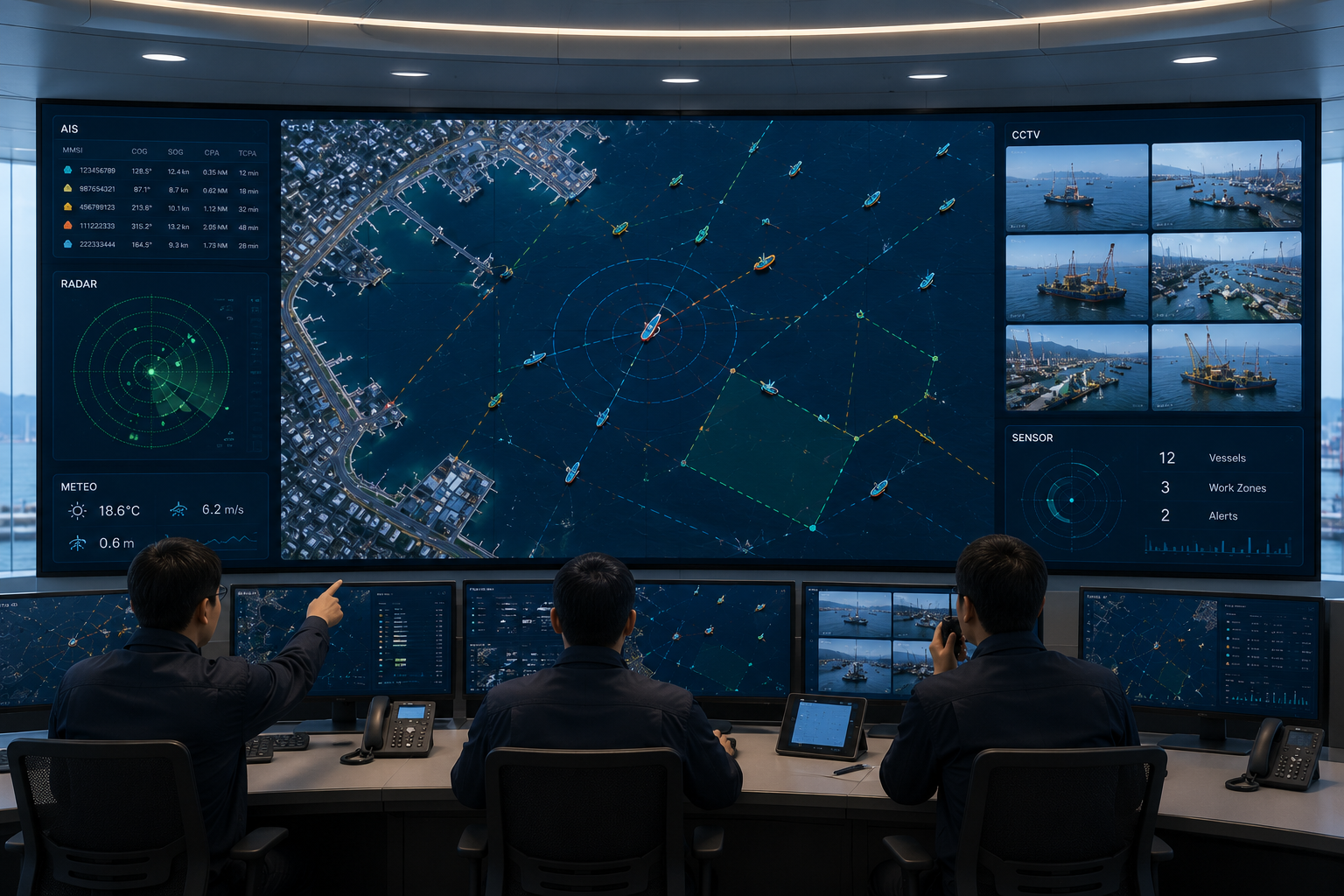

Control data integration system

Control Data Integration

Field data is connected through network equipment and an AIS data integration system so it can be used in the control room.

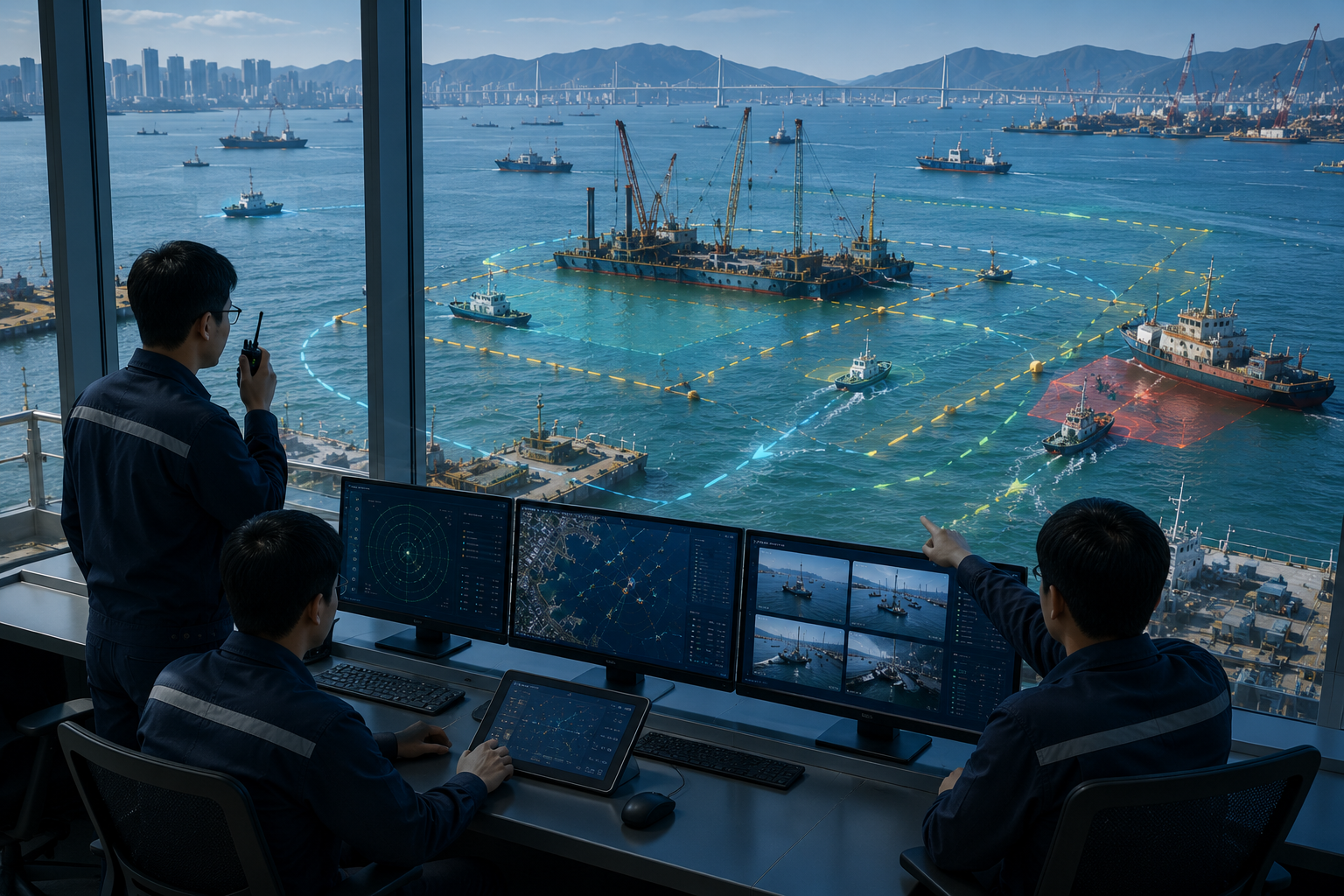

Safety Monitoring Service

Safety Monitoring Service

AR-based video overlays, collision risk detection, track recording, and work-zone management support safer marine construction.

Expected Benefits

Marine Construction Safety Monitoring Digital Twin System

The system integrates vessel position and video data from marine construction sites in real time, helping operators identify collision risks in advance and maintain safer day and night operations.

Real-time vessel positioning image
Real-Time Vessel Positioning
Collision risk detection image
Collision Risk Detection

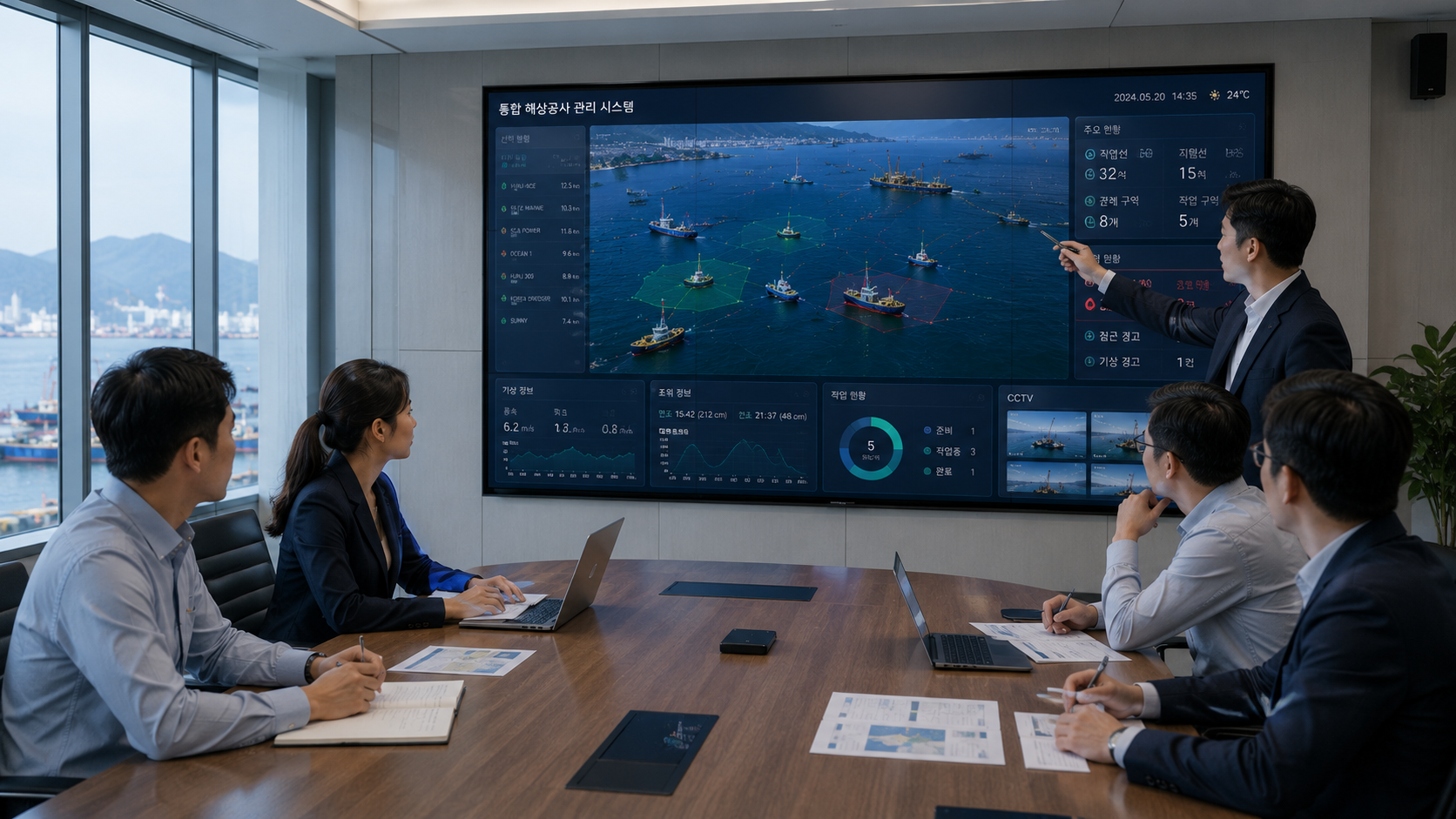

Marine work-zone management image
Marine Work-Zone Management

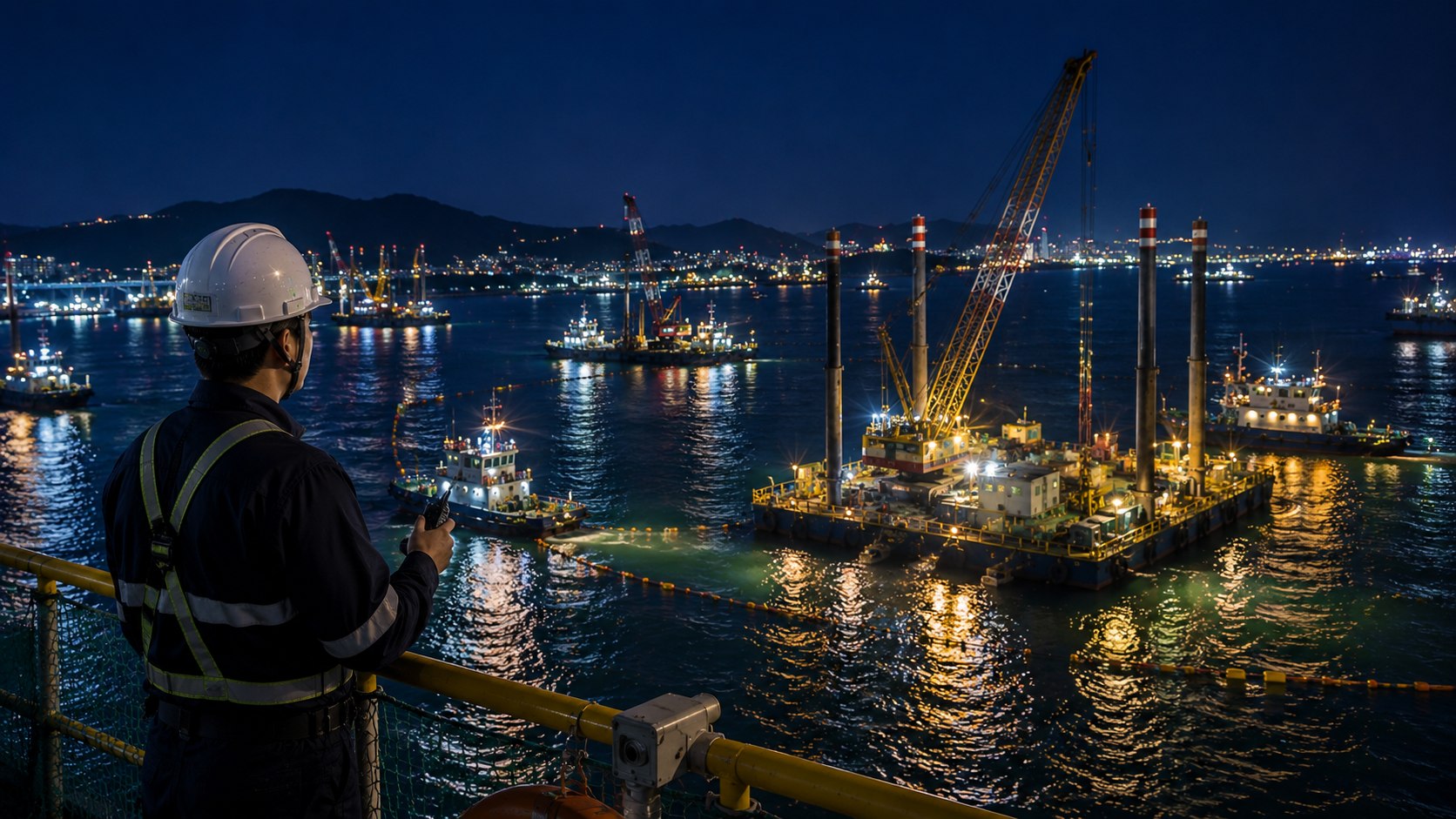

Day and night site monitoring image
Day & Night Site Monitoring
Vessel track recording image
Vessel Track Recording
Safer control operations image
Safer Control Operations

Portfolio

Marine Construction Safety Monitoring Digital Twin System

The VARLOS® Smart Marine Construction Safety Monitoring Digital Twin System has been applied to real marine construction sites, including breakwater revetment works, revetment construction, and port construction projects, establishing a safer control environment for construction vessels and passing vessels.

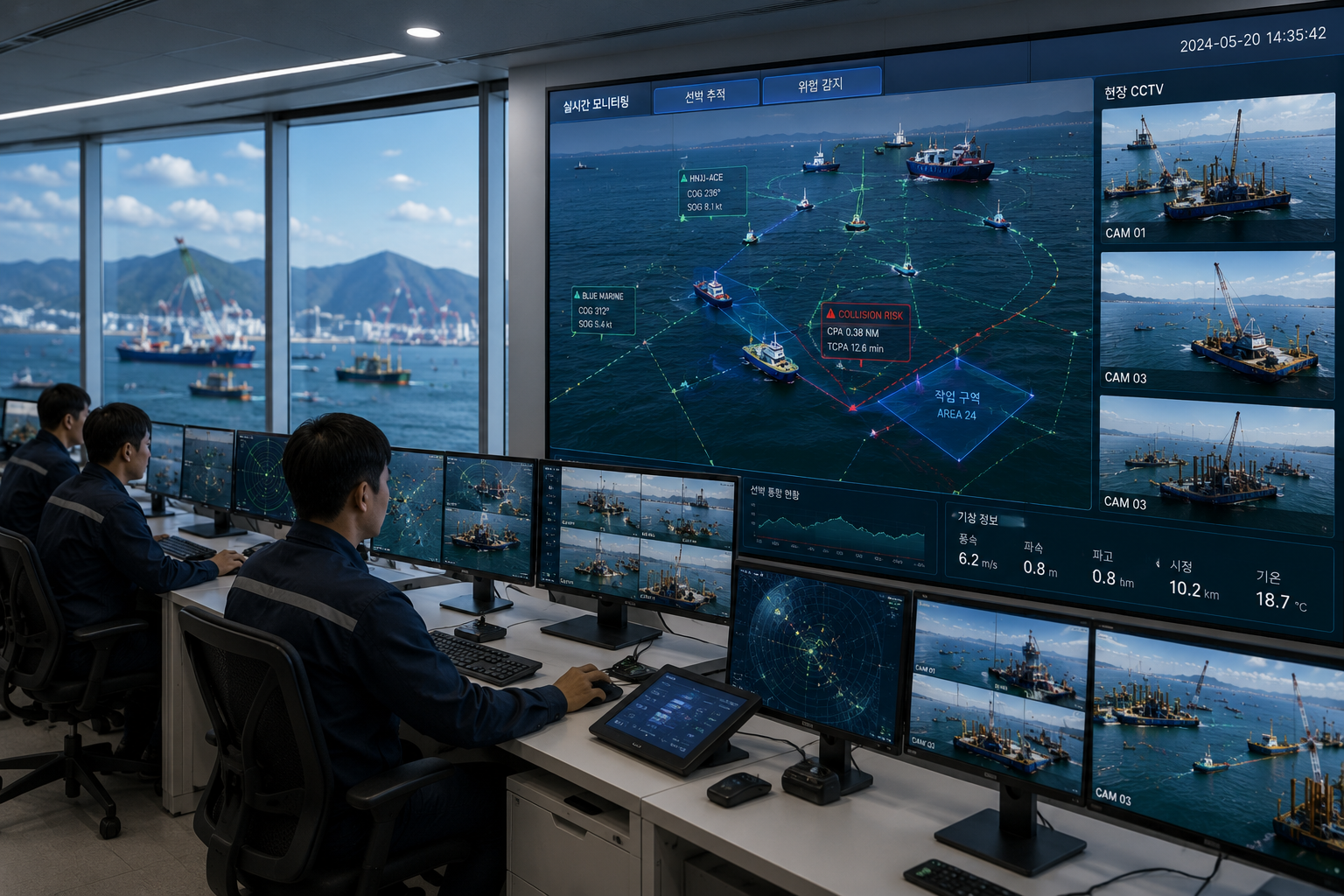

Marine Construction Safety Monitoring Digital Twin System main image
Portfolio

Marine Construction Safety Monitoring Digital Twin System

VARLOS®-based safety monitoring systems were applied to real marine construction sites, including the Donghae Port Phase 3 Breakwater Revetment Project, the Incheon New Port Revetment Construction Project in Songdo, and the Sorae Port Construction Project. By connecting CCTV footage, AIS, and radar data, the system enables operators to monitor construction vessels and passing vessels while displaying construction-zone and nautical chart information together, helping manage collision risks before incidents occur.

Project Marine Construction Safety Monitoring Digital Twin System Deployment
Period 2021.03

Project Overview

The Marine Construction Safety Monitoring Digital Twin System is a safety control system that connects position and video data from construction vessels and passing vessels so operators can monitor risk conditions across marine construction zones in real time.

The system collects information on construction vessels and passing vessels around the target marine construction area, linking CCTV footage with AIS and radar-based positioning data for control-room monitoring.

During daytime operations, CCTV-based position information is used, while radar and other field equipment help support night monitoring, improving safety across marine work zones.

Detailed Scope

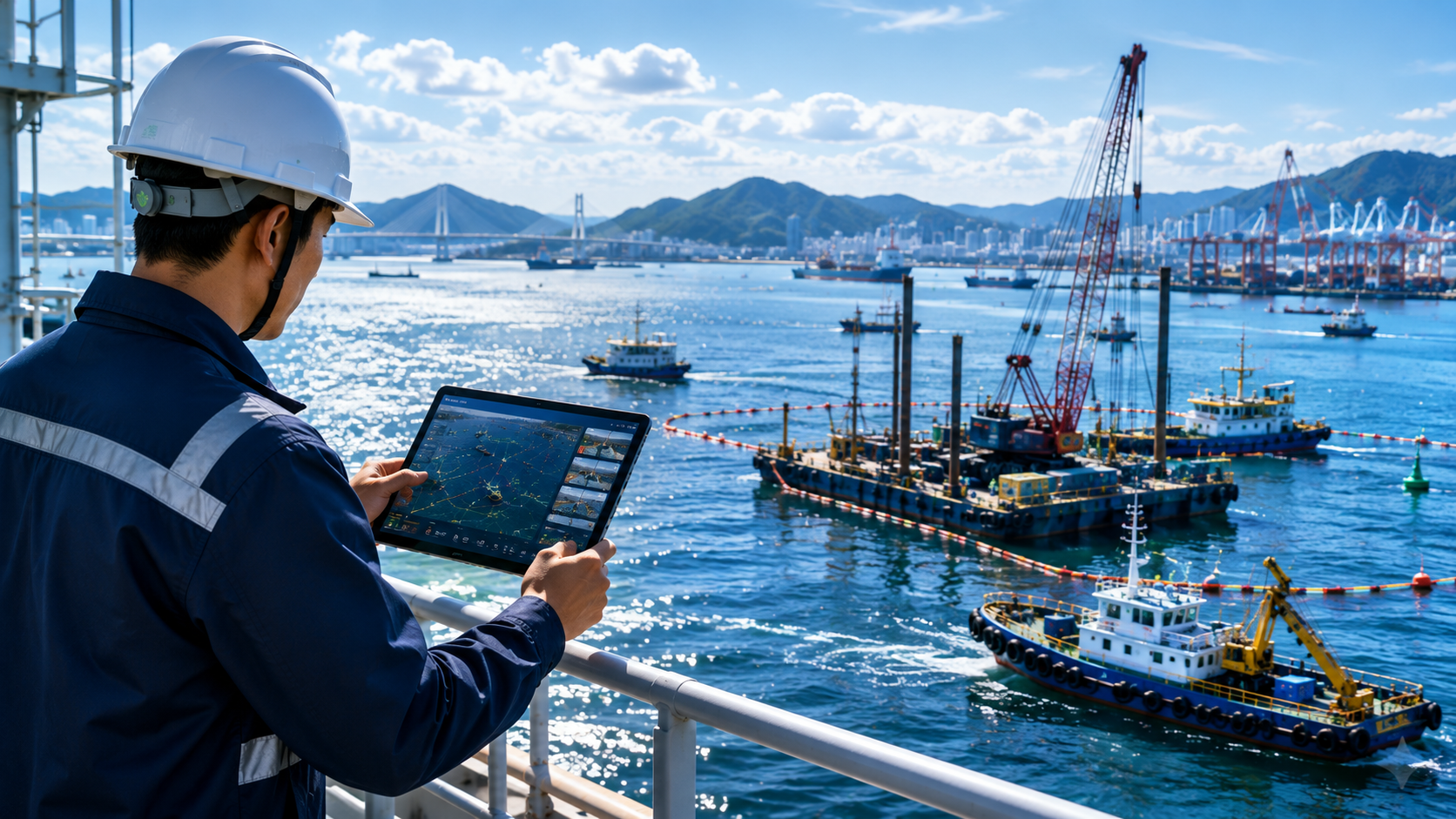

AR-based marine construction monitoring screen

01AR-Based Marine Monitoring

  • Overlay vessel and work-zone data on CCTV
  • Visualize marine work zones through AR
  • Support real-time monitoring and video correction
Vessel position and collision risk detection screen

02Vessel Position & Risk Detection

  • Connect AIS and radar positioning
  • Map vessel positions in 2D and store track records
  • Support collision risk detection and vessel alerts

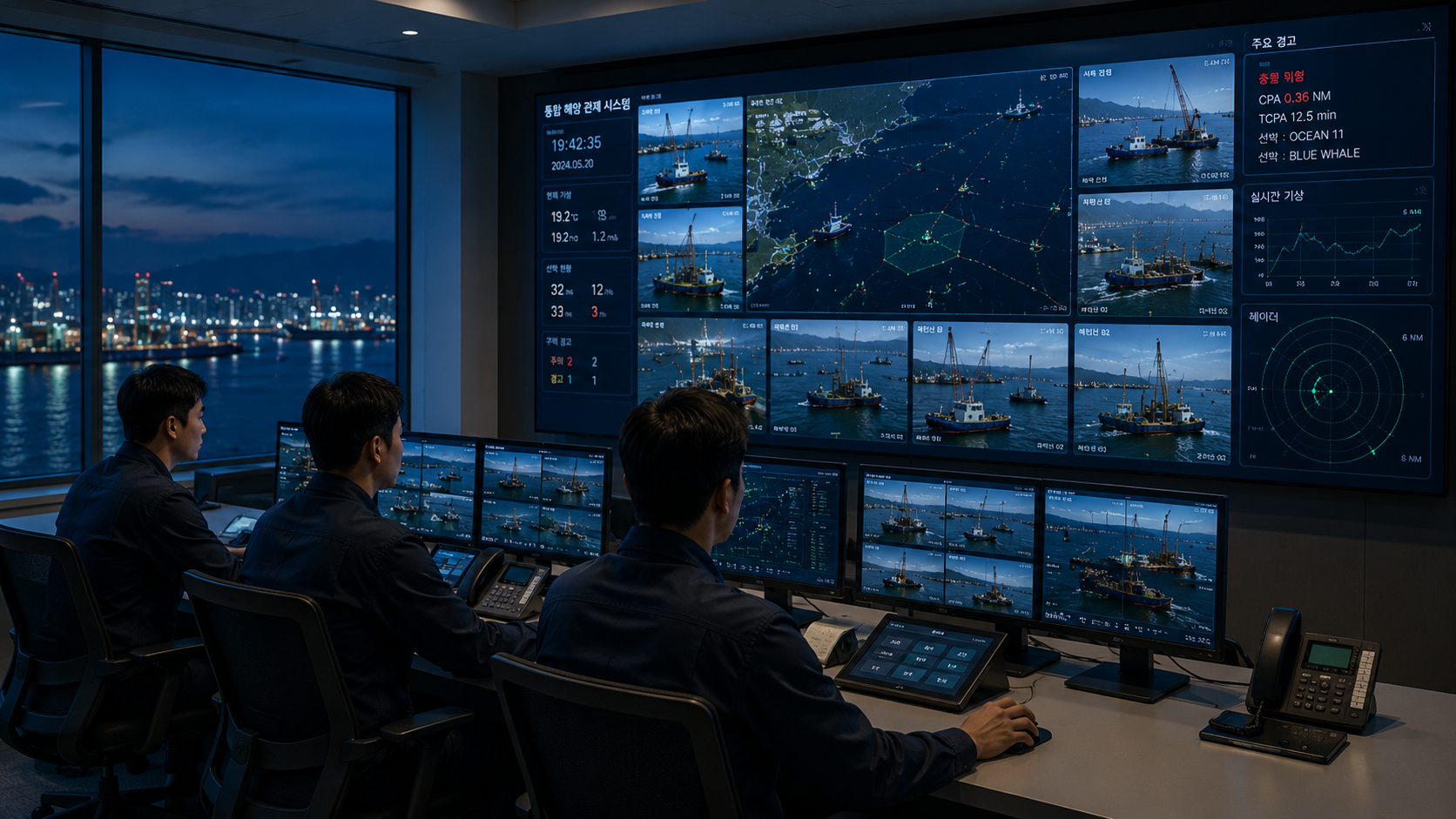

Work-vessel data management screen

03Work-Vessel Data Management

  • Manage work zones and vessel registration
  • Manage vessel AIS data and work status
  • Send app alerts with alarm screenshots
