National Korea Maritime & Ocean University Establishment of a new technology-based logistics education simulation experience space

A port logistics education simulation program that starts with an overview of smart ports and allows you to experience logistics flow, terminal operation processes, and equipment.

“ It is a great advantage that we can conduct viewing education on smart ports in one space with viewing content and conduct experiential content, and that education can be conducted. ”

I think that the experiences that practitioners or trainees related to smart ports have through watching videos and experiencing VR in places like movie theaters will remain in their minds longer than education through theory. In addition, I think that the educational environment and process have become richer as a tool for fostering smart logistics convergence talents with ICT and DNA capabilities that our business division aims for. I hope that in the future, the quality of education can be improved by adding new VR content in equipment inspection and operation, including audiovisual materials.

Viewable content on a wide screen	3 types of experiential content
Confirm delivery and share your thoughts on the content	Content Delivery Manual and VR Kit

Overview

Building a logistics education simulation experience space based on new technology

We, SamwooImmersion, have built an experience center in Busan Techno Park to effectively enhance the understanding of port operations by experiencing the cutting-edge unloading systems of advanced domestic and foreign ports through virtual reality. The experience center consists of one viewing type and three experiential types of smart port content, allowing educators and trainees to experience the advanced technological innovation of the new logistics system.

Building an experience center

Building a large screen and VR experience space for new concept education in smart ports

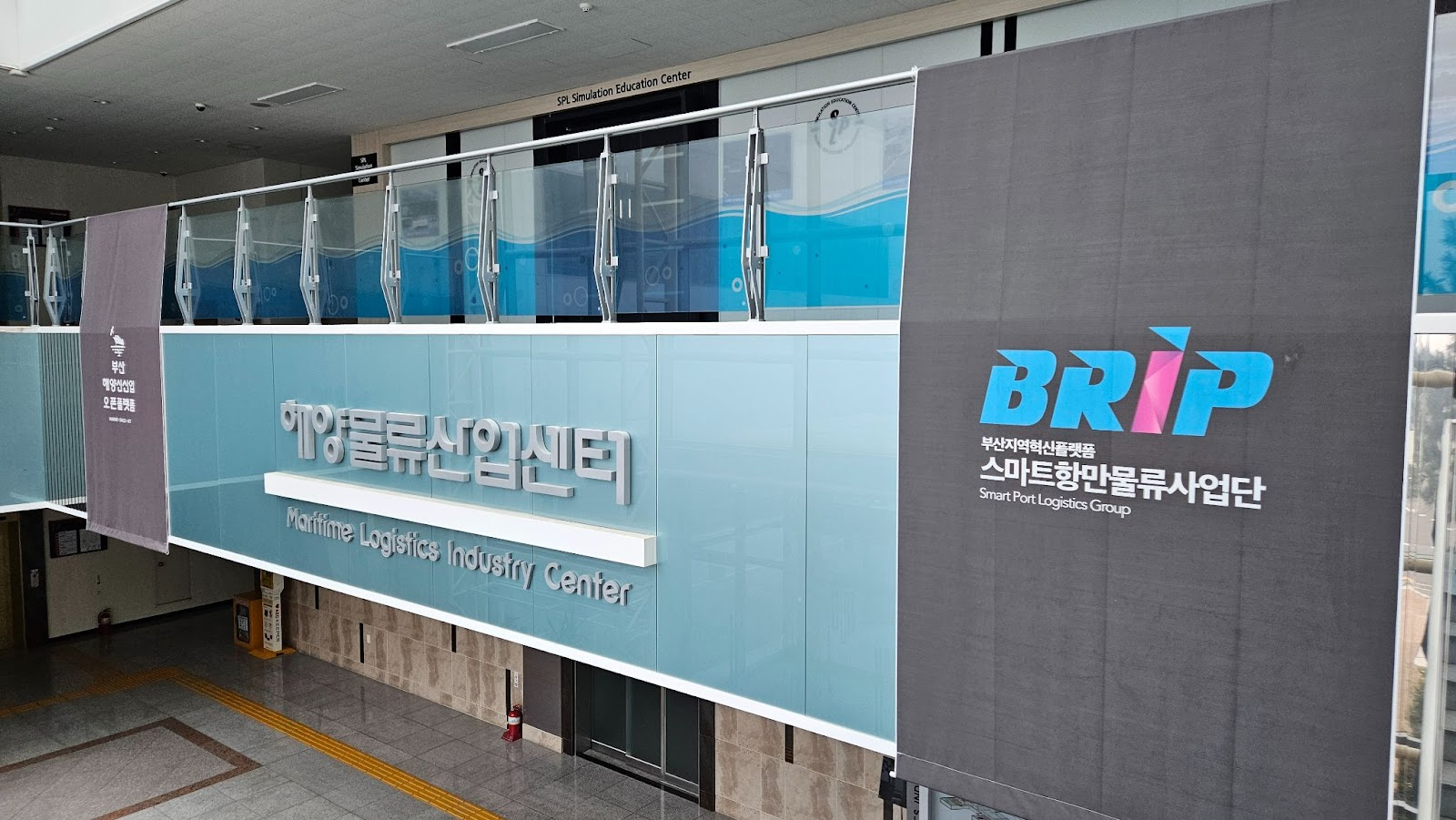

The experience center, located in the conference room on the 2nd floor of the Busan Techno Park Marine Logistics Industry Center, is a 308.50㎡ (approximately 93 pyeong) space, and was built by dismantling the timber and structure, and constructing the ceiling, electricity, and network. By connecting and linking 5 projectors and simulator equipment, as well as installing a full-screen projection structure, you can experience viewing content through a large 12m wide screen. The interior is configured like a movie theater, and the chairs are foldable movie theater chairs, and a total of 30 people (3 rows, 10 sets) can sit.

Business team overview	Inside the experience center	wide screen

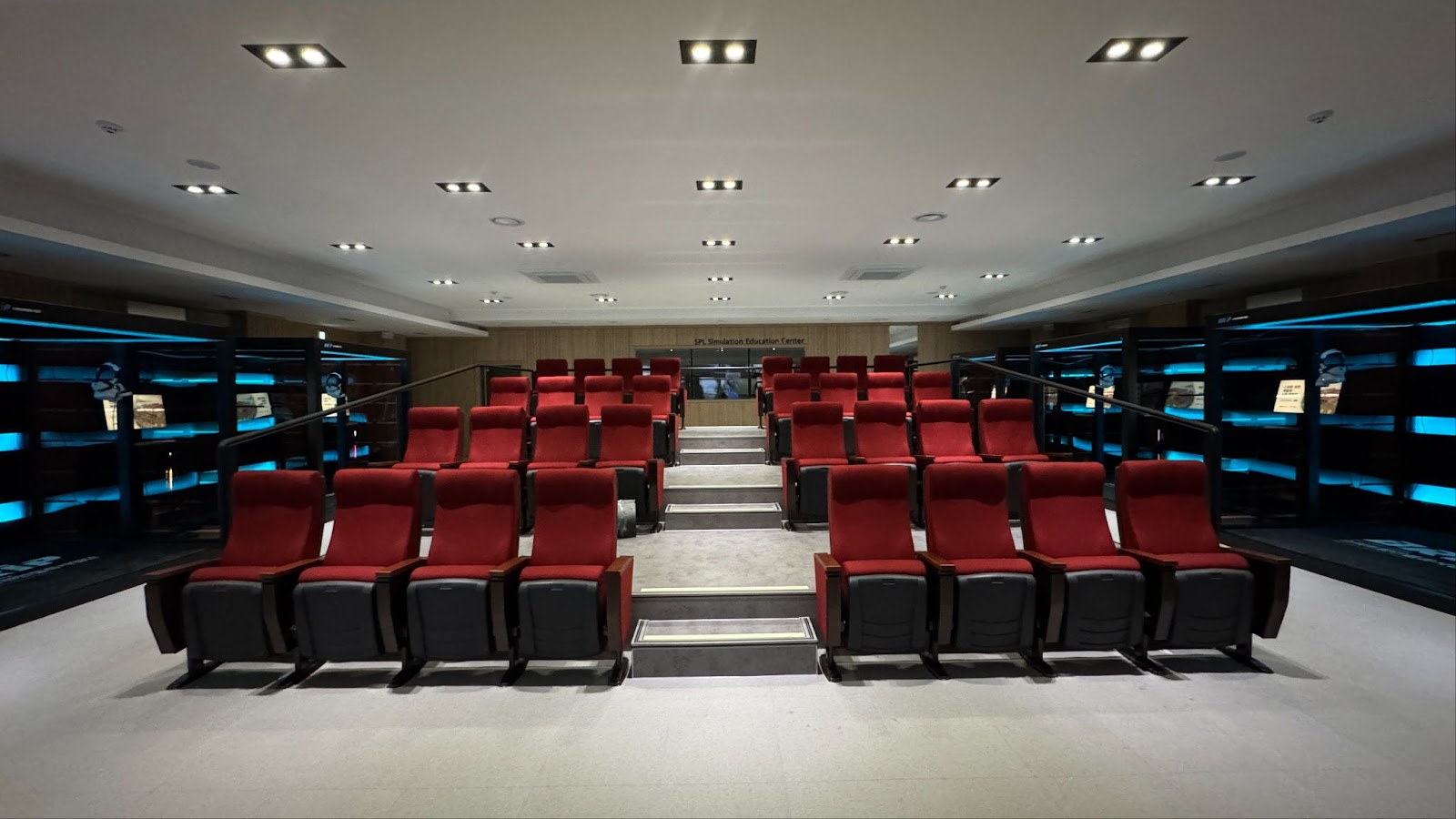

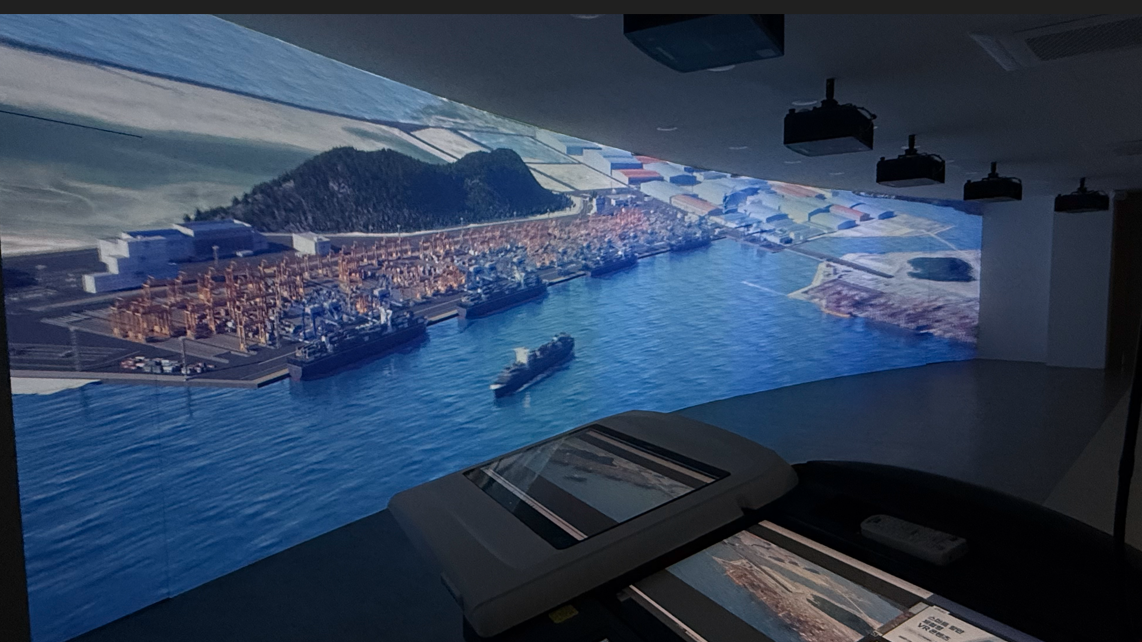

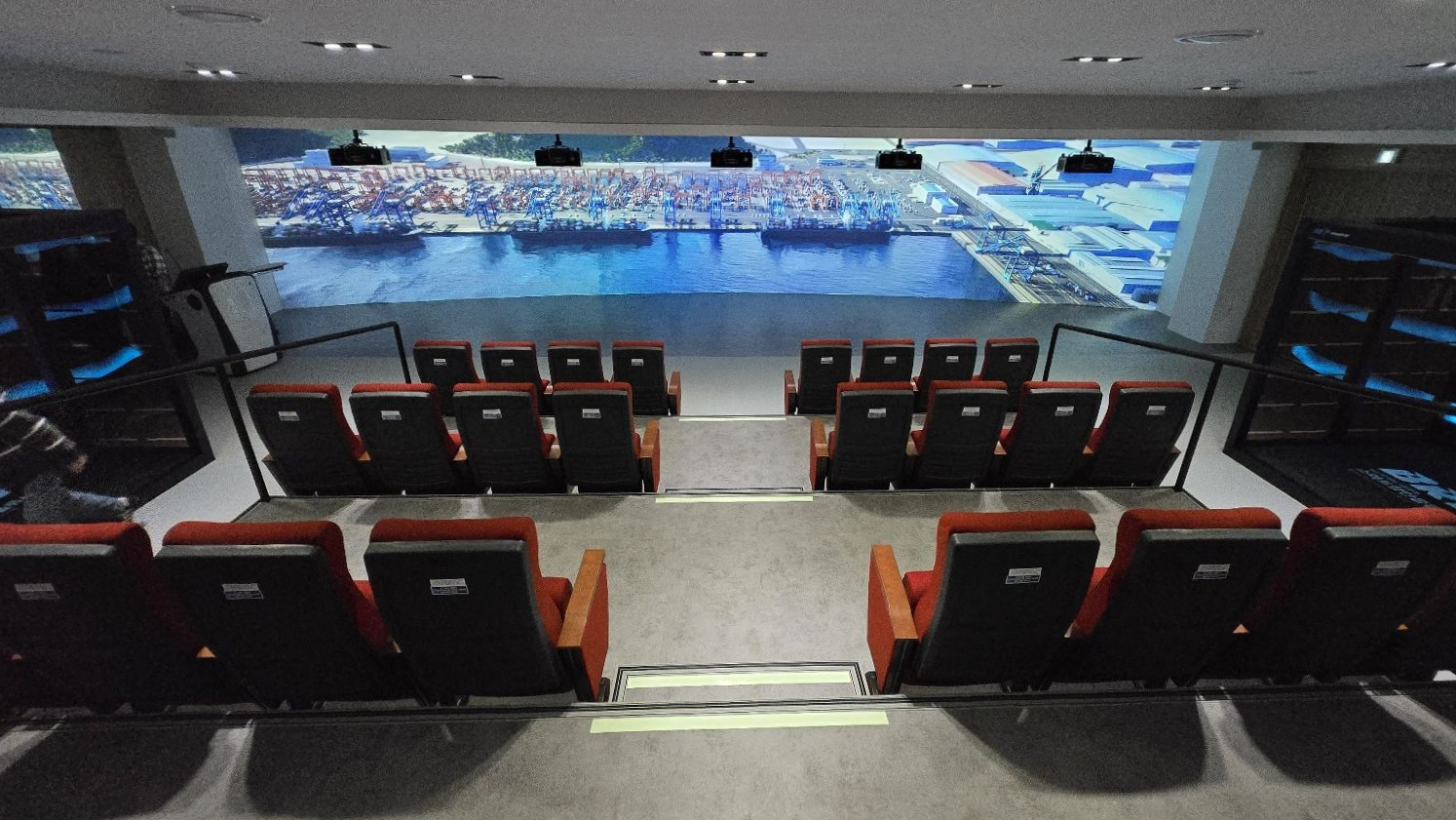

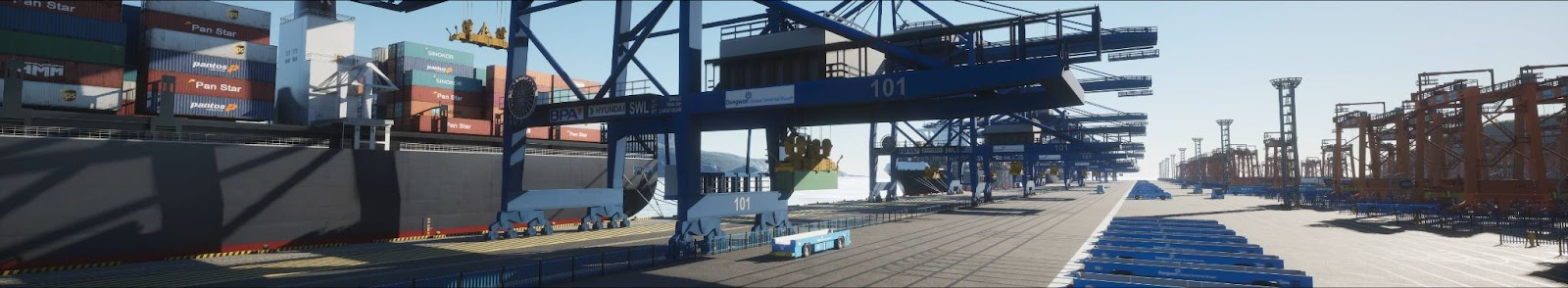

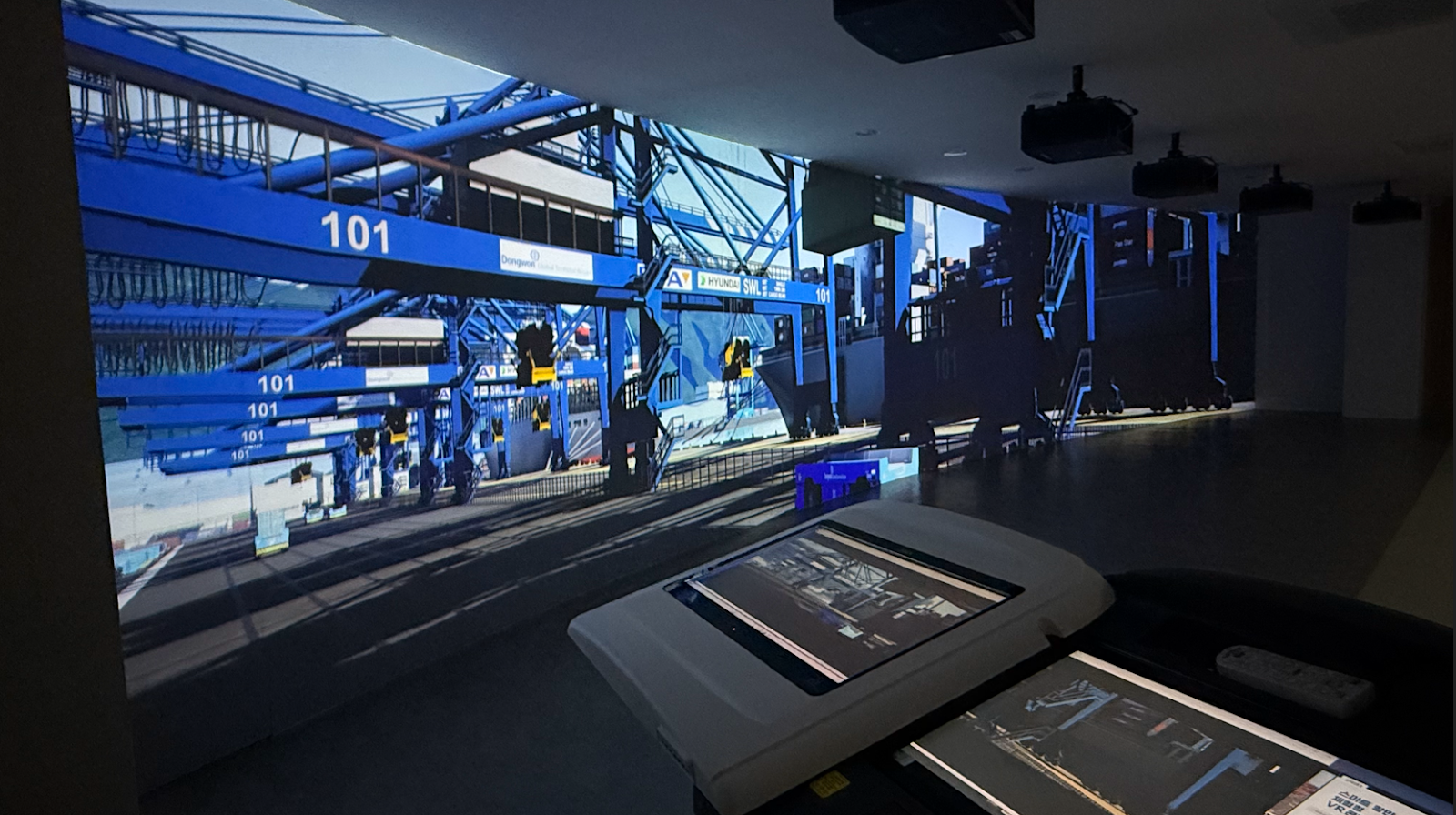

The front wall is used as a beam screen to view ultra-high definition viewing content provided in 4K, allowing you to learn about the logistics flow of advanced ports and the current status of automation in terminal operation processes.

Building a wall that can be used as a full-screen beam screen in the indoor experience center

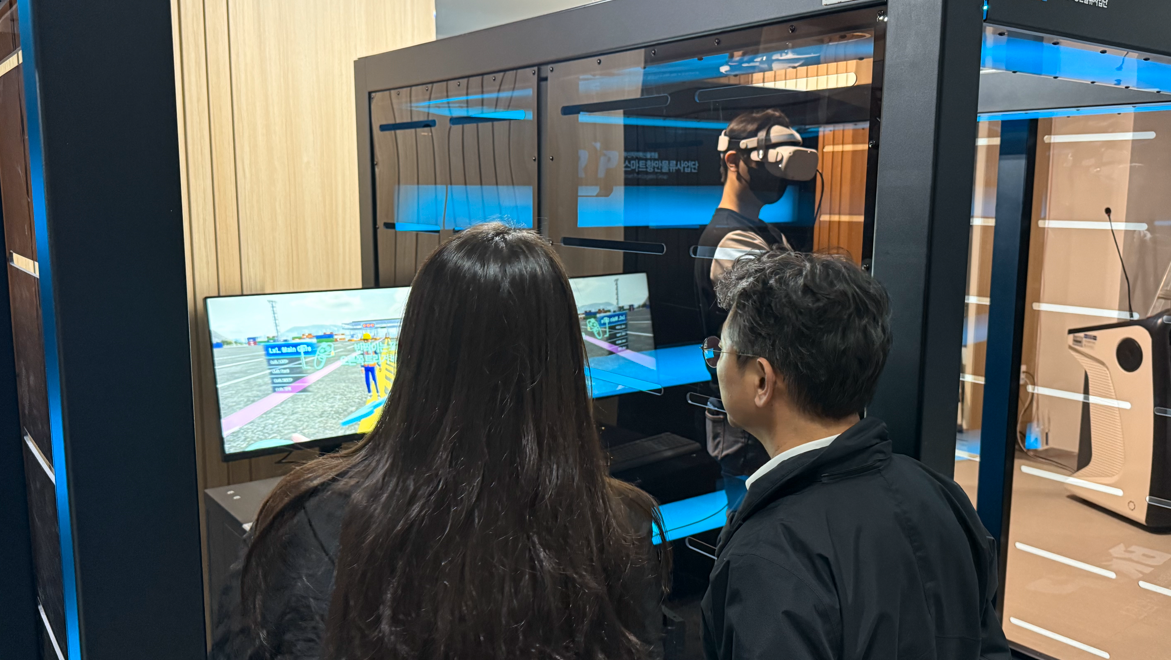

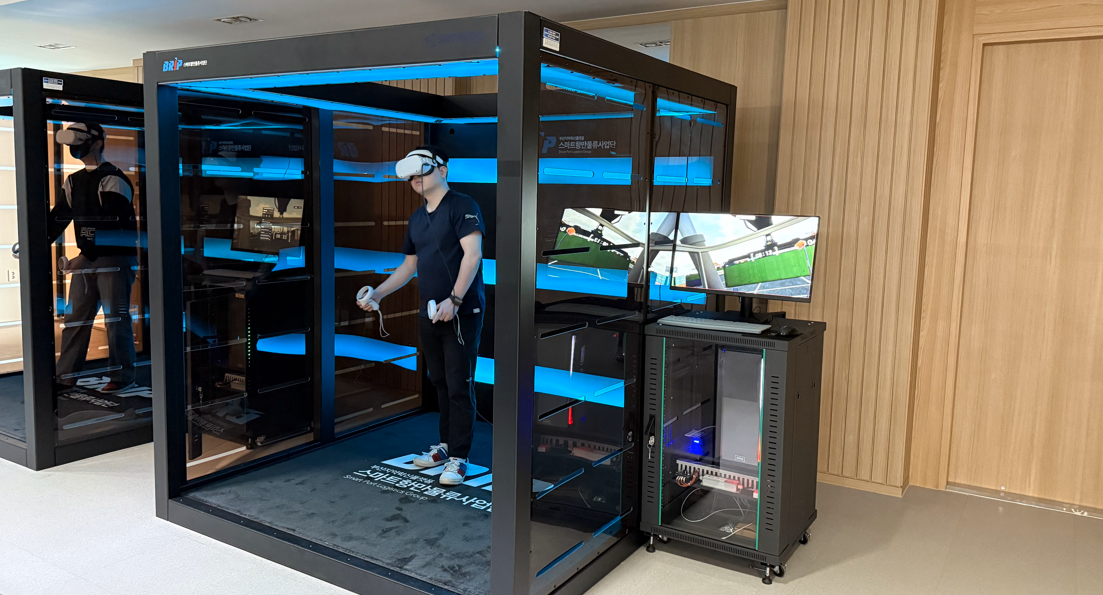

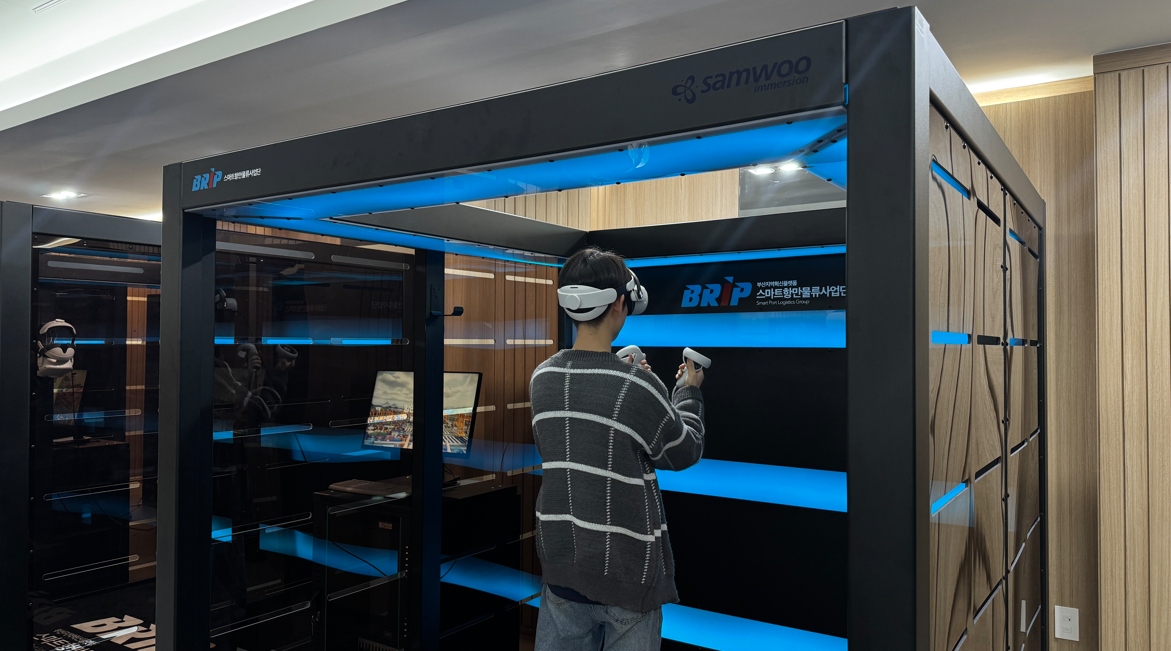

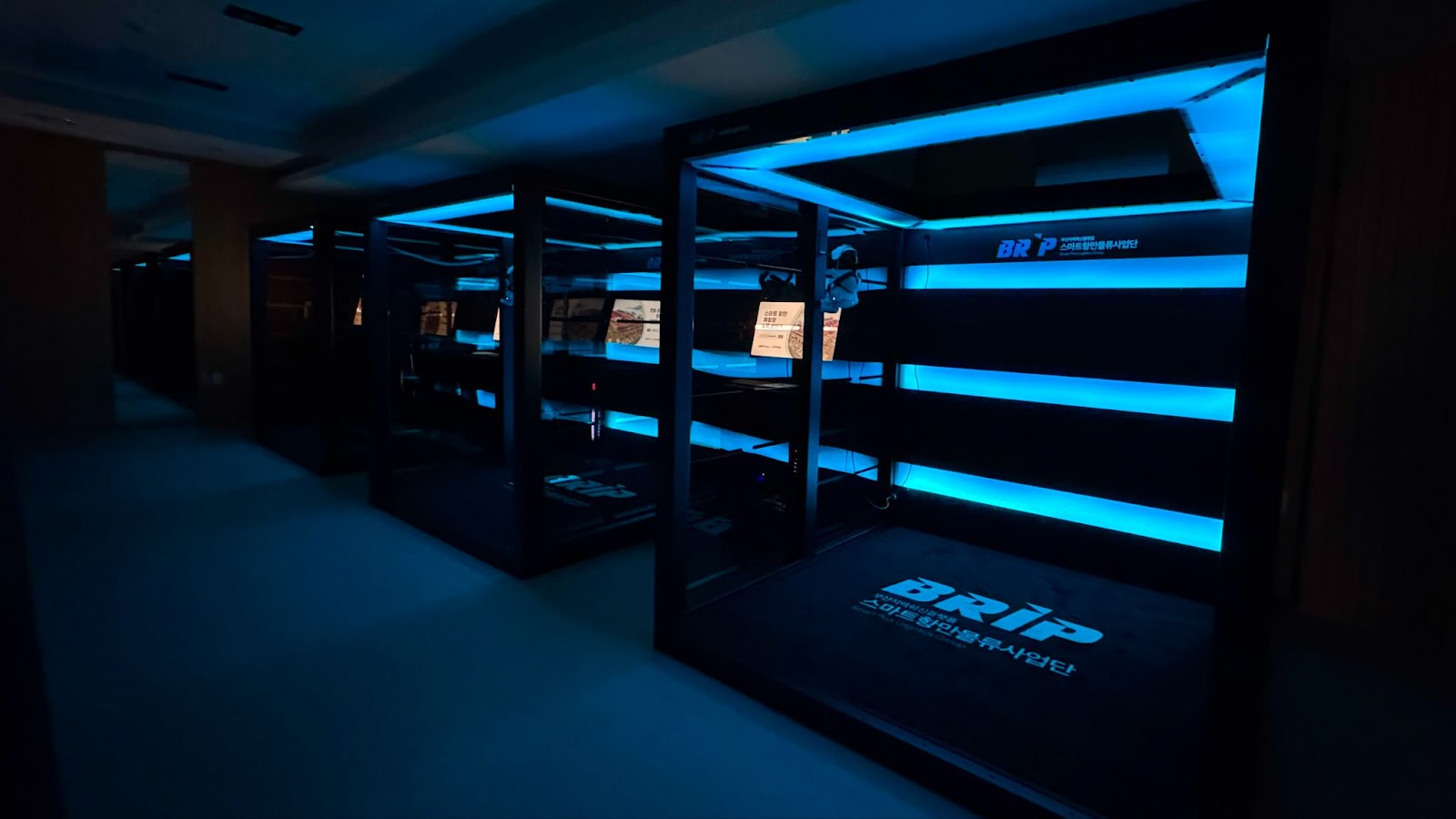

There are a total of 5 VR Station Cabins installed on both sides of the full screen, allowing VR experiences, and they are designed so that port logistics industry workers and trainees can experience the characteristics of automated logistics in an interesting way without having to move separately after viewing the content. In particular, it has been customized considering the movement and activity radius of the content for a free and effective experience, and a rubber mat has been installed on the floor for safety reasons to enable an uncomfortable experience.

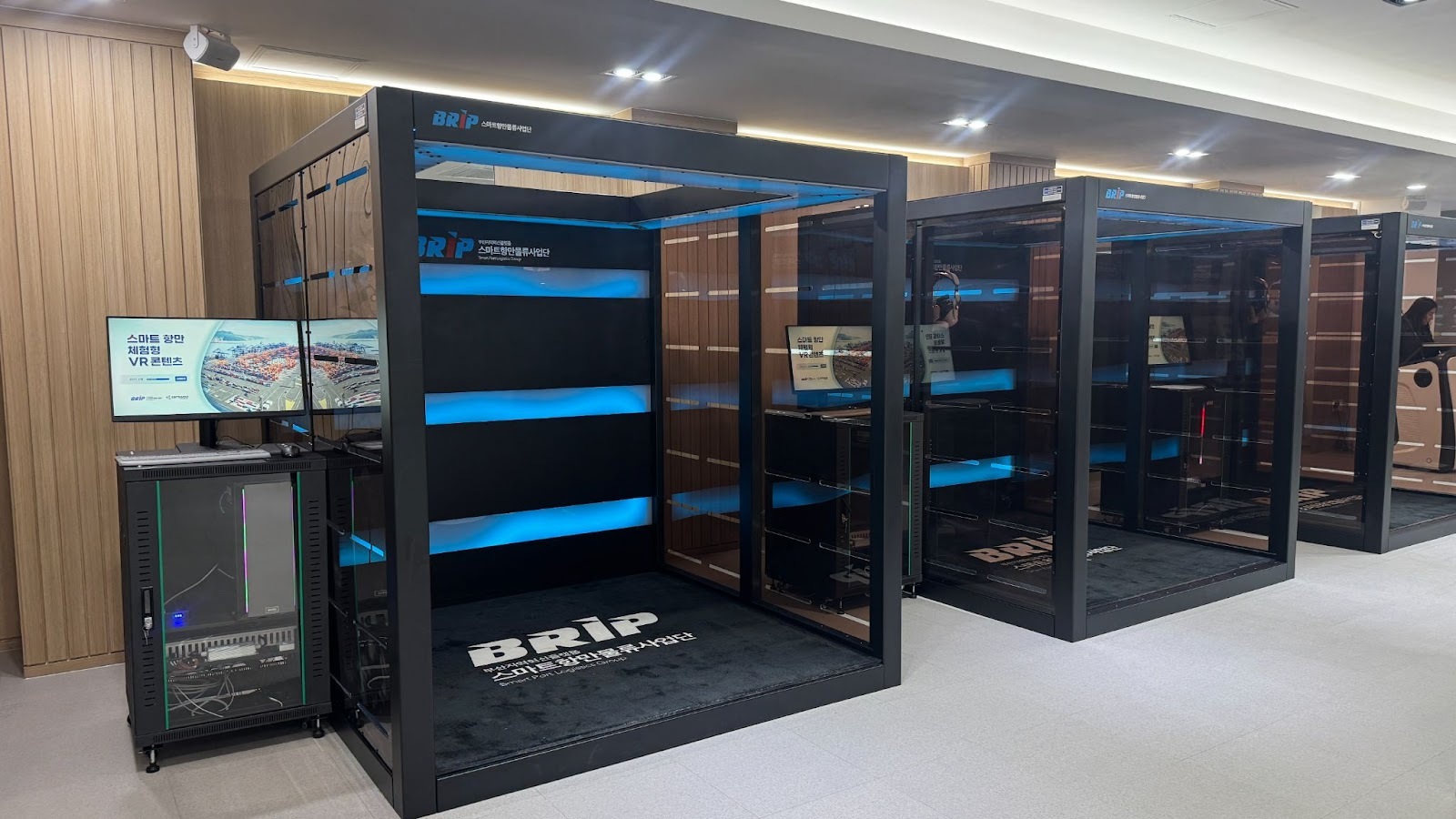

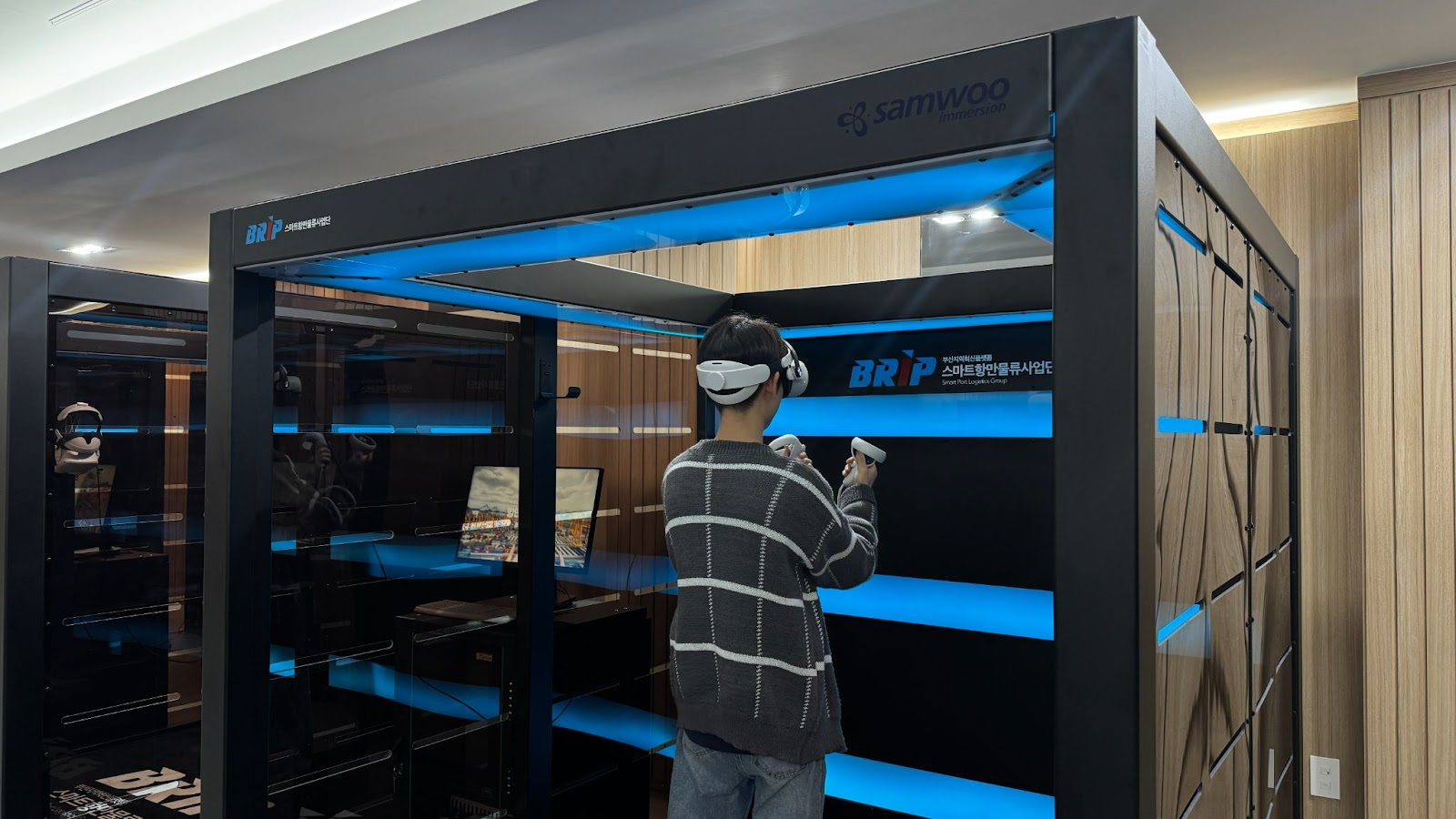

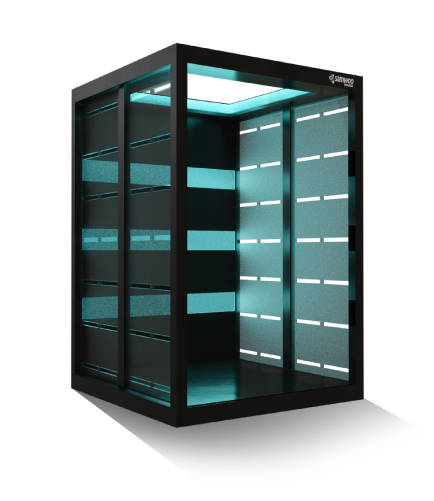

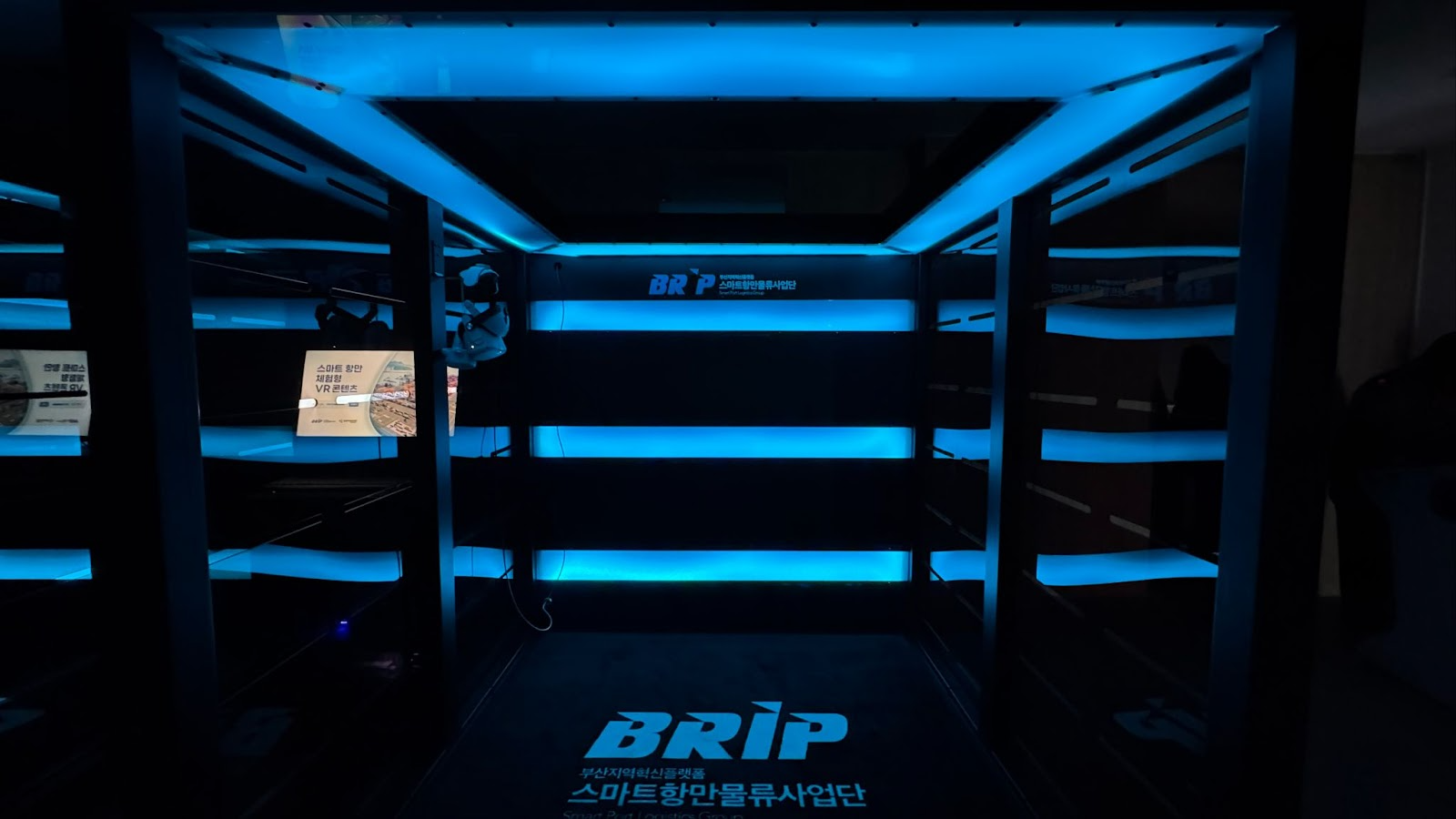

VR Station Cabin where you can experience VR content

VR Station Cabin Configuration and Specifications
composition	27-inch FHD display, safety mat, HMD, link cable and other components
standard	2,000 * 2,000 * 2,100 (W*D*H)
ingredient	Cold rolled steel sheet 2.6~3.2T / Polycarbonate 8.0t
coating	Electrostatic Dispersion (TX Black)

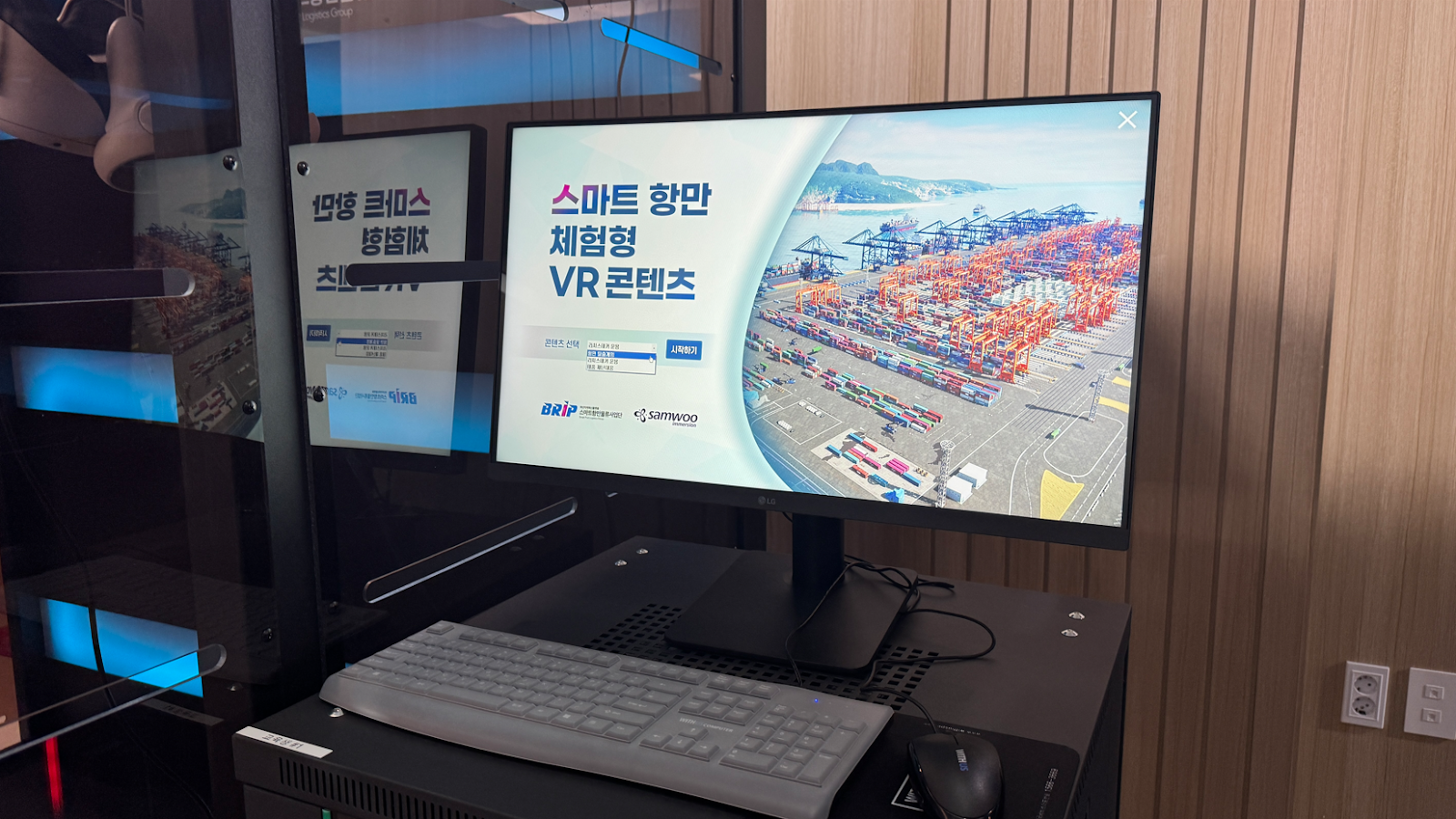

characteristic	- Control your PC and content with a 27-inch monitor  - User monitor mirroring possible - Attach HMD equipment and link cable hanger inside the cabinet - Ceiling and rear ambient installation and control function - Support RTSP transmission of user monitor screen

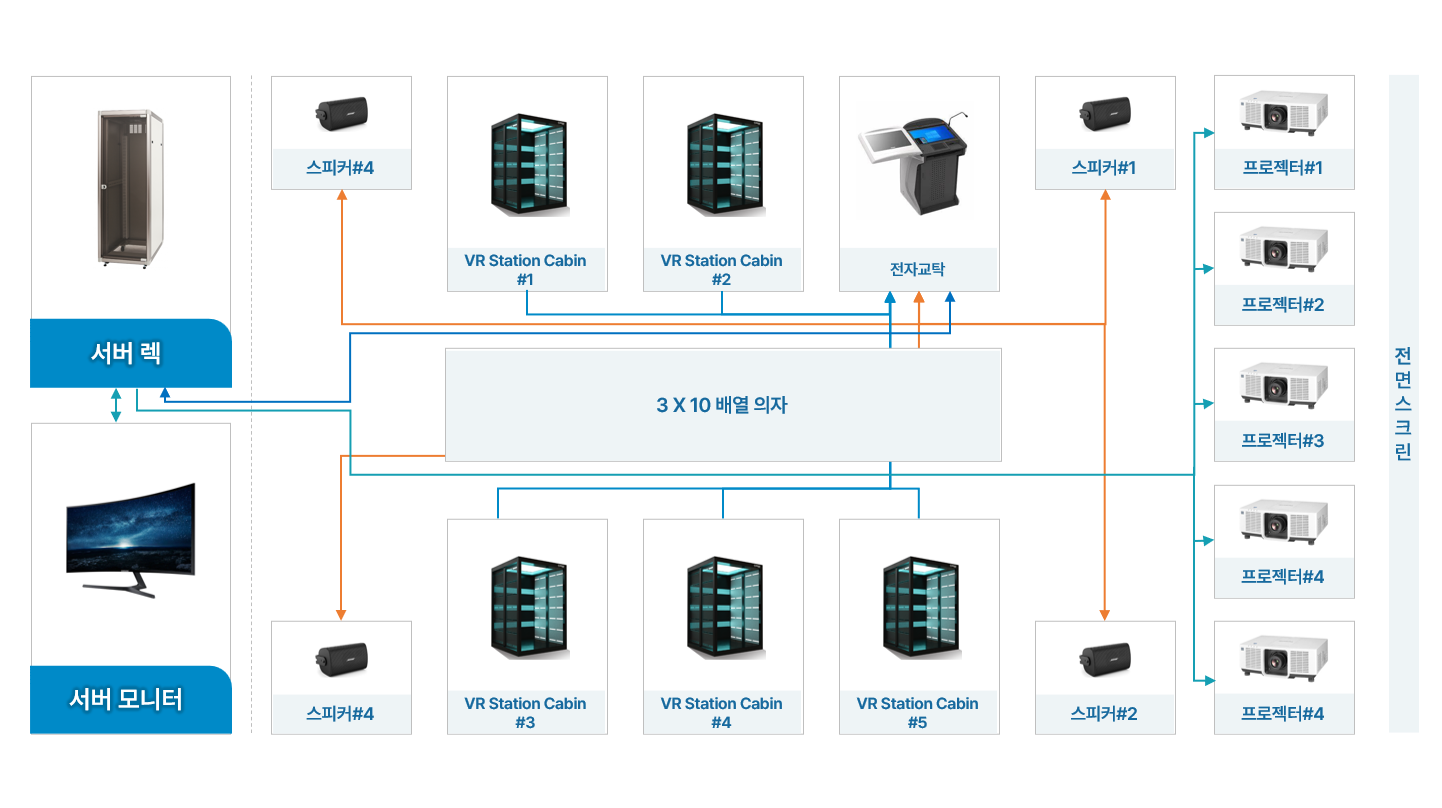

Experience Center System Configuration and Instructor Control

Multi-control support through power and content control management on the electronic podium

All computers operating in the VR Station Cabin are linked to the electronic podium and the system within the experience center, making it possible to check the real-time progress of VR experiencers individually or collectively, control the power management of the computers, and operate and monitor the four types of content.

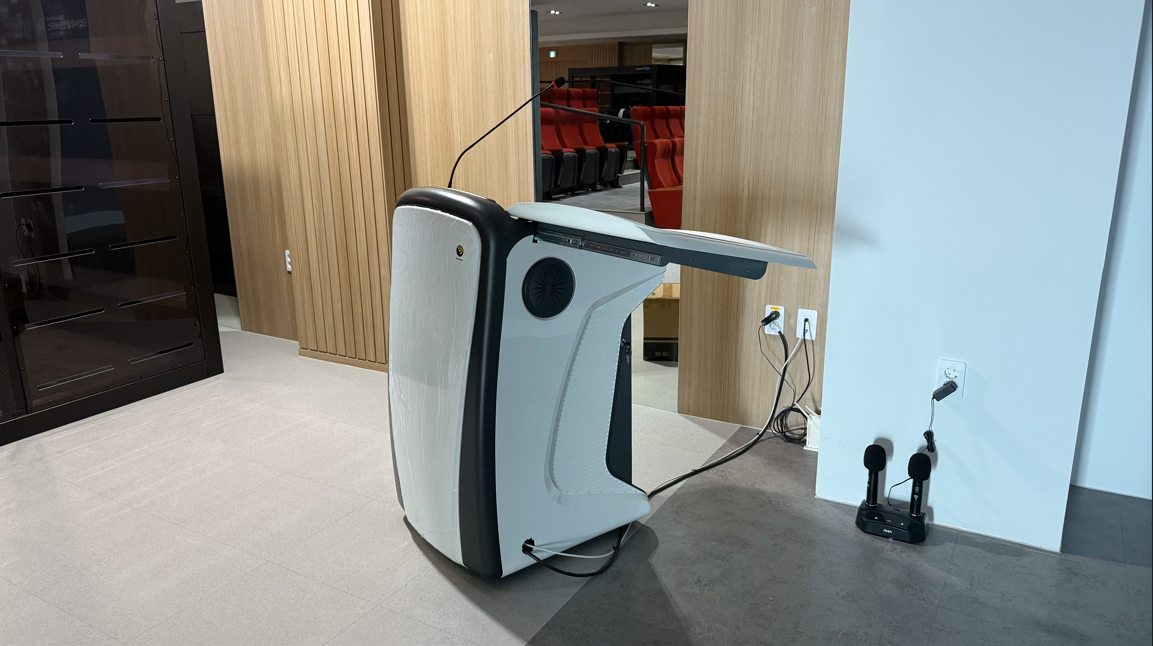

electronic lectern	VR experience in progress	Instructor screen for the experience

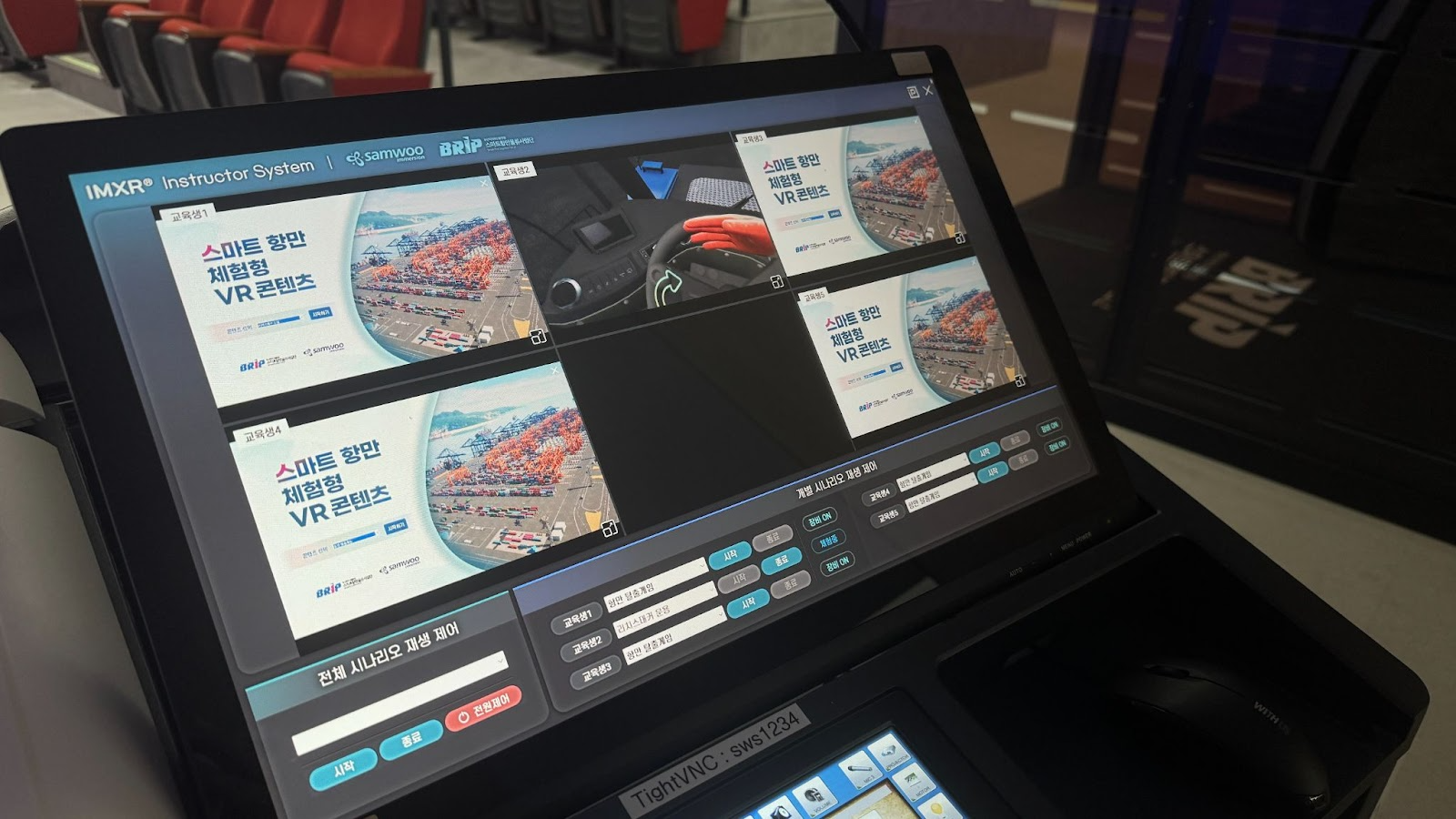

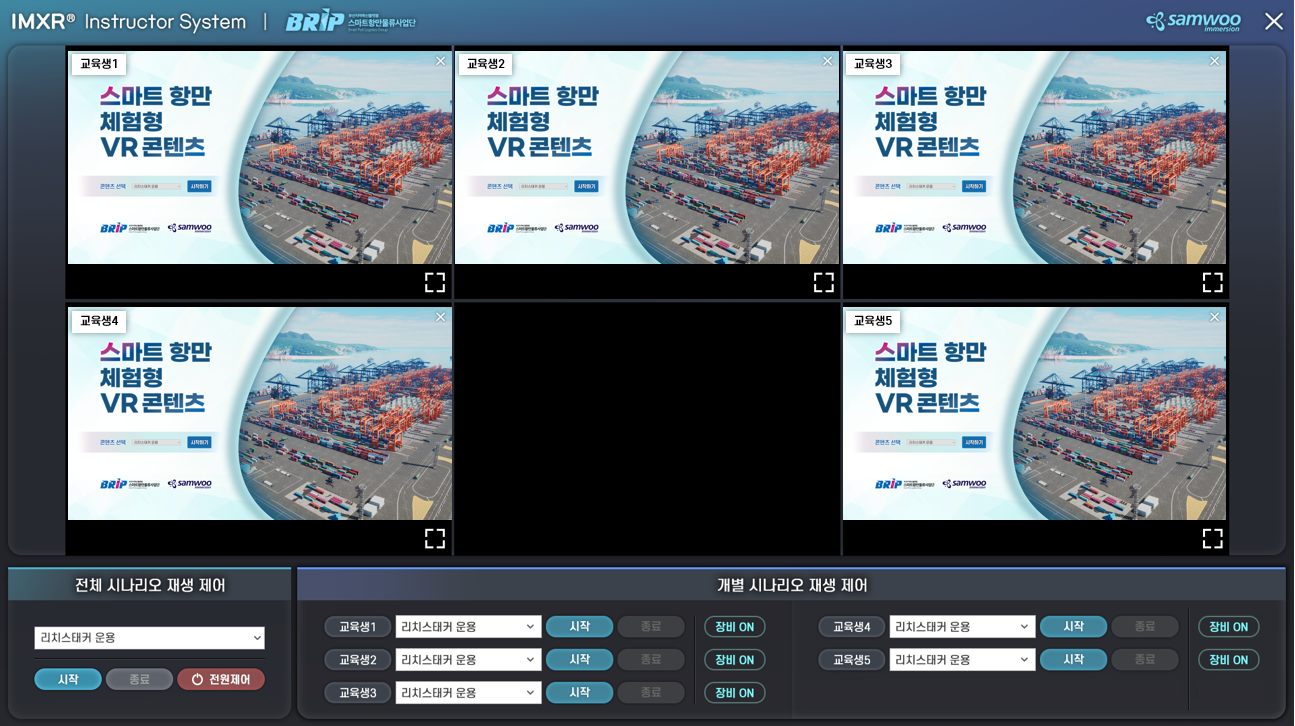

Main Instructor Screen	Instructor control screen for 5 PCs

The instructor control function allows for the monitoring of the content progress of the participants in bulk, and remote control of individual content such as pausing, restarting, and changing content when necessary, thereby ensuring both the participants’ immersion and safety. The instructor can check the reactions and progress of each participant in real time and provide appropriate guidance according to the situation, enabling more effective experience operation.

* Example of instructor control screen

H/W Solution

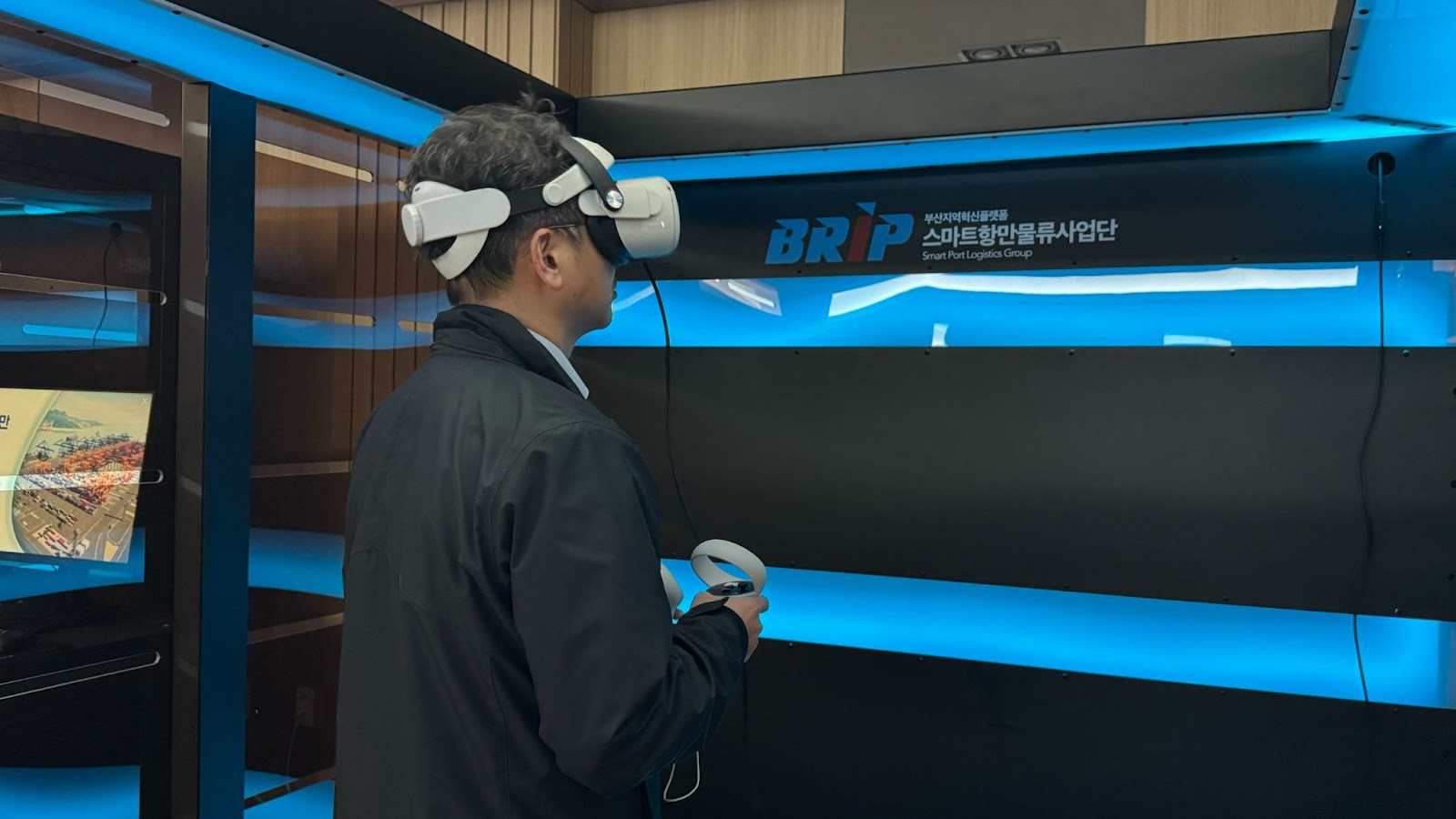

Korea Maritime and Ocean University's Smart Port Logistics Division is utilizing three types of Samwoo Immersion's IMXR smart port contents for education using Meta Quest 2.

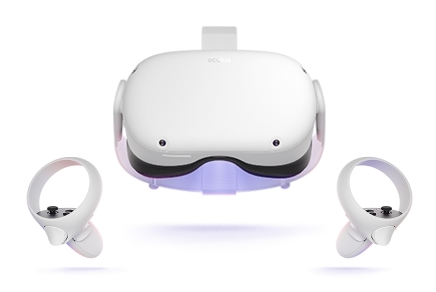

Experience content using VR HMD	VR HMD : Meta Quest 2

VR Station Cabin eliminates physical risks during operation in a 2M x 2M space, providing a smooth experience so that users can experience interactions that are as similar as possible to those they would feel in an actual physical space. The VR HMD, which is utilized to enable greater immersion in virtual reality within the experiential space with a modernized design, utilizes Meta Quest 2 to allow free movement between reality and imagination through spatial and temporal experiences in virtual reality.

4 types of smart port content

Innovative educational content that opens the future, completed with colorful perspectives and in-depth approaches!

The smart port content, consisting of one viewing type and three experiential types, is an educational simulation that effectively increases understanding of port operations by experiencing the cutting-edge cargo handling systems of advanced domestic and foreign ports in virtual reality. By establishing an educational infrastructure that combines advanced ports with mirror-type practice through virtual reality, it enhances the effectiveness of the curriculum for fostering innovative talents and strengthens interaction between instructors and learners through experiential logistics simulation education.

1 type of smart port viewing content

3 types of experiential content
Reach Stacker Operation	Port escape game	Typhoon Disaster Response

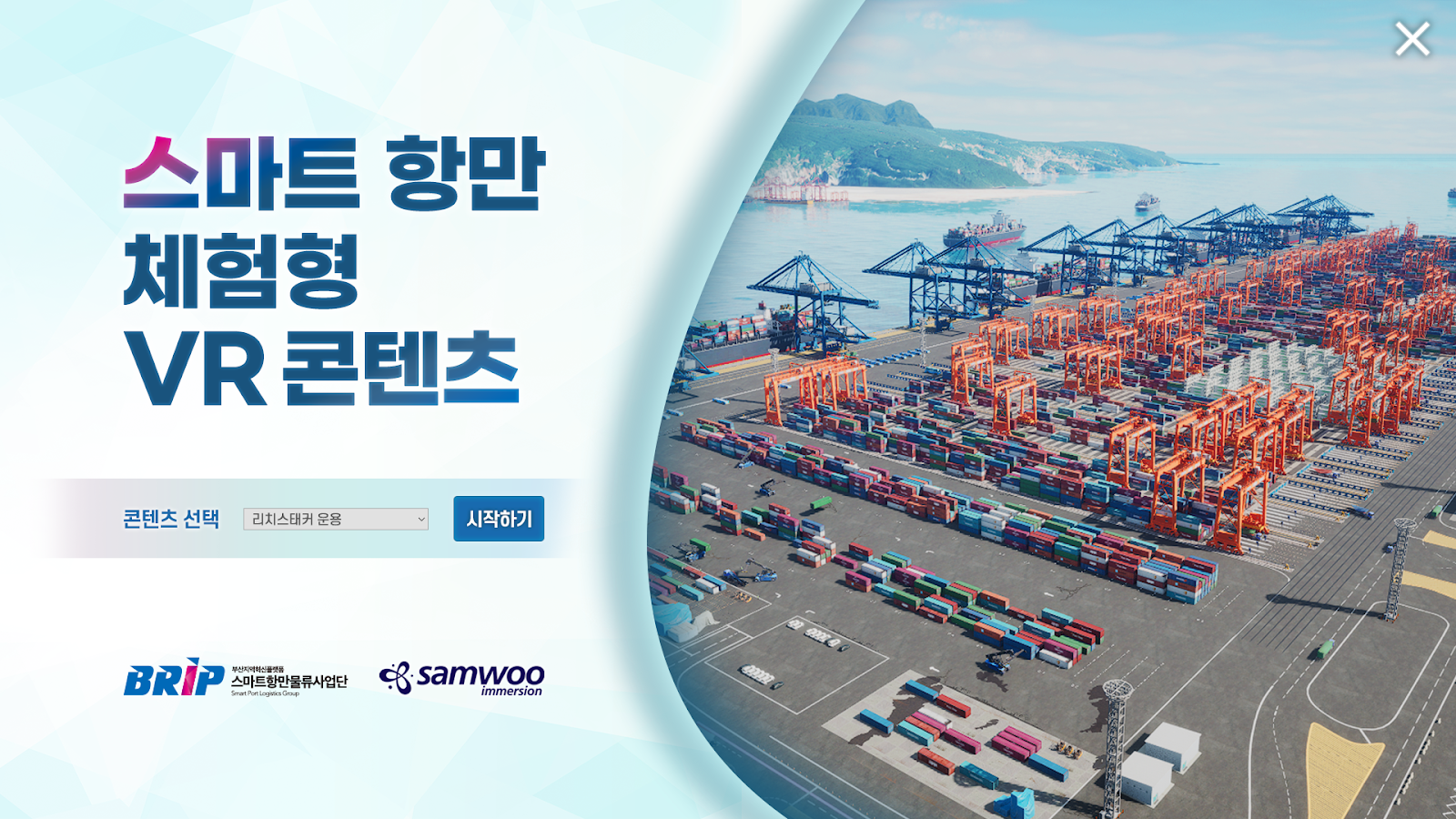

1. Smart Port Viewable Content 1

* Running Time: 20 minutes I Quality: 6528 x 1200 I Capacity: 9.5GB I Language: Korean/English

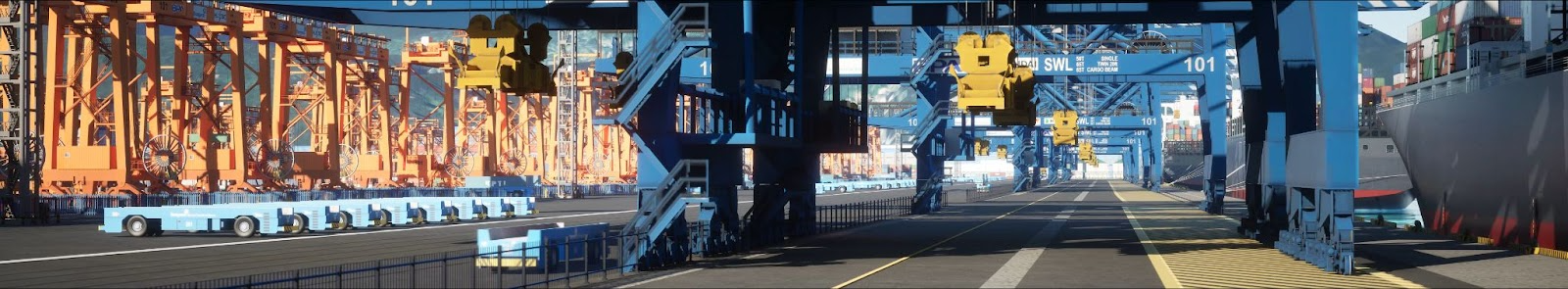

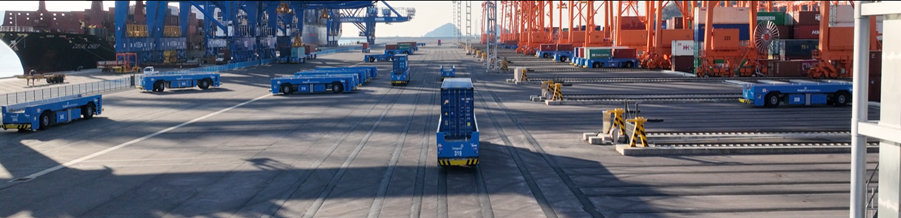

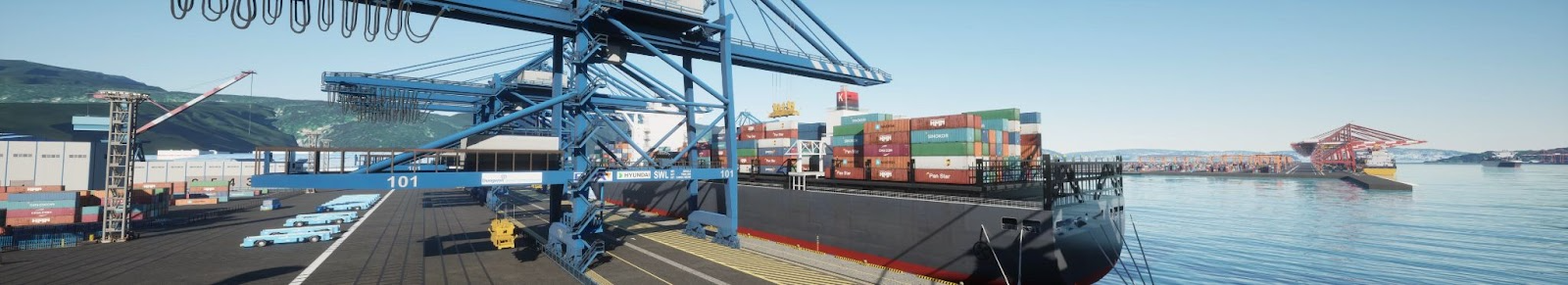

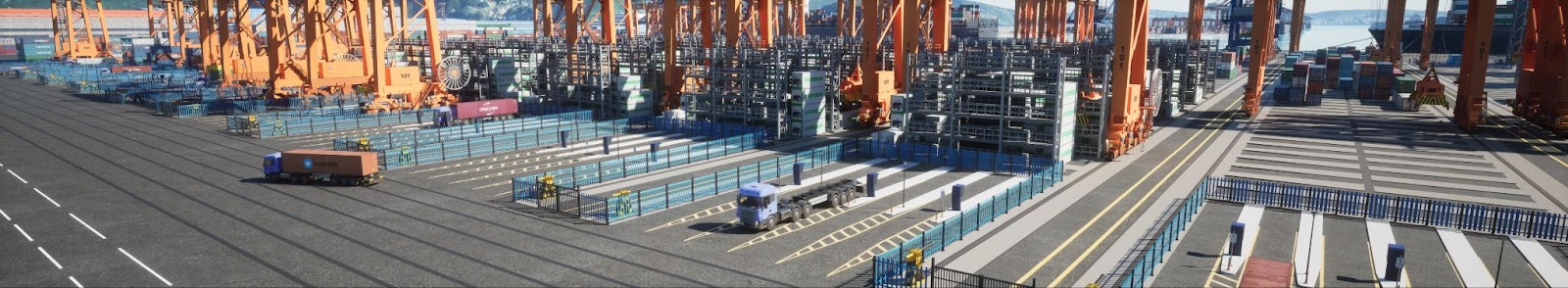

In the midst of rapidly changing competition among advanced ports, we provide viewable content that reflects actual cases of smart port operation and logistics processes in drone footage to allow you to experience the smart container terminal, a smart port logistics system with the world's best unmanned automation technology. Starting with an introduction to the components of the smart port's automated terminal, a high-quality video was produced that visually implements the terminal configuration, unloading system, and logistics process with a high level of detail and physics-based light processing. The English version of the promotional video helps overseas visitors better understand and experience the concept of a smart port. It not only improves the quality of the visit, but also serves as an effective tool for global promotion and education.

2. 3 types of smart port viewing content

For experiential content, systematic planning and structured composition are used to maximize the educational effect centered on the experiencer, and 1:1 scale 3D modeling is produced with high-quality textures based on real-life references, allowing the user to experience various elements of a realistic smart port.

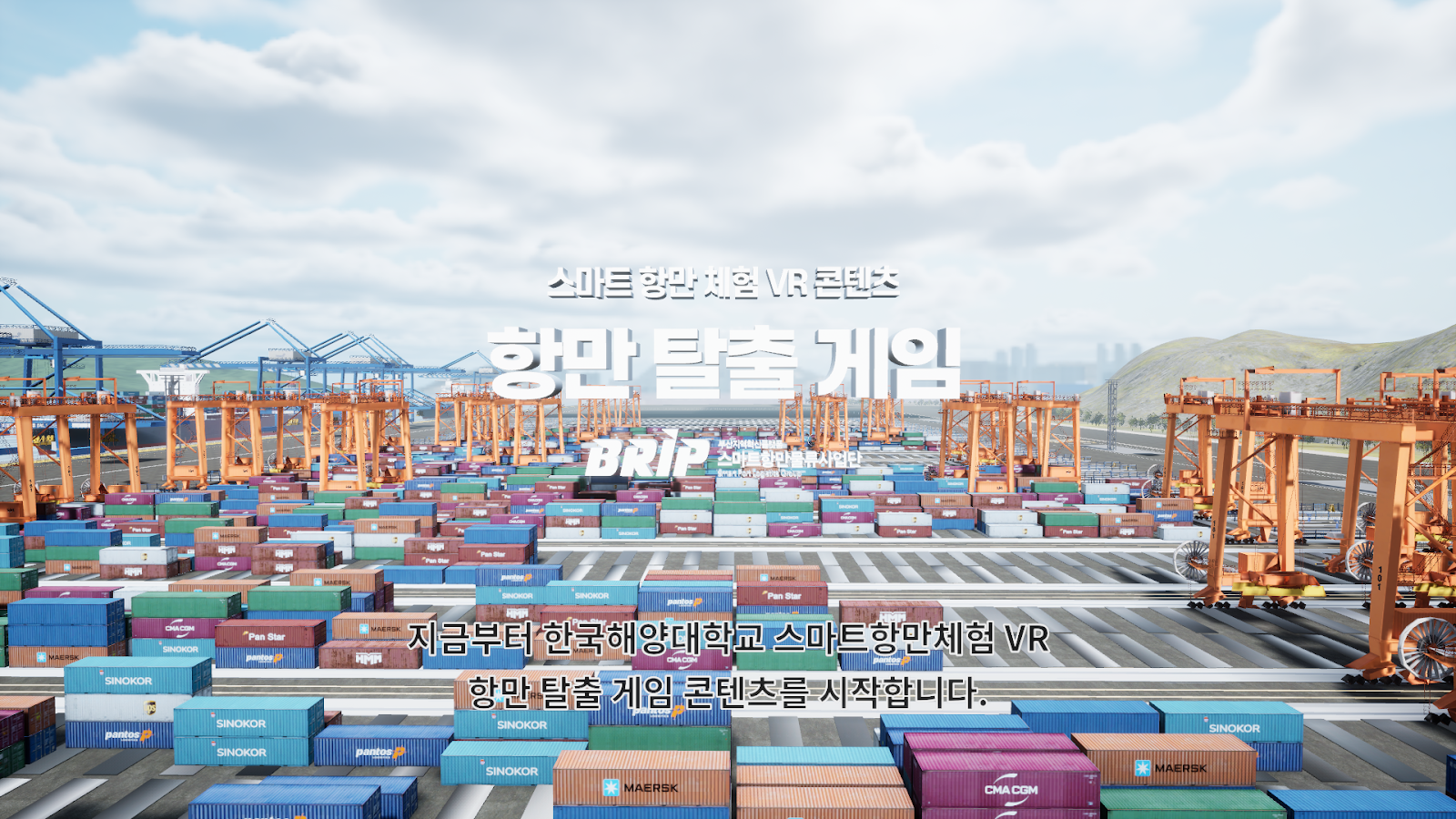

2-1) Experiential content 1: Port escape game  * Running time: 5 minutes

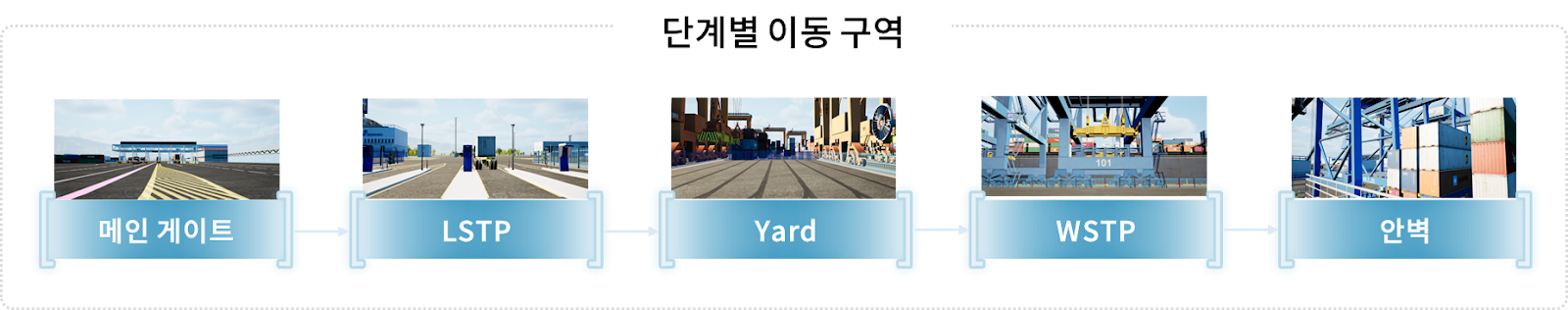

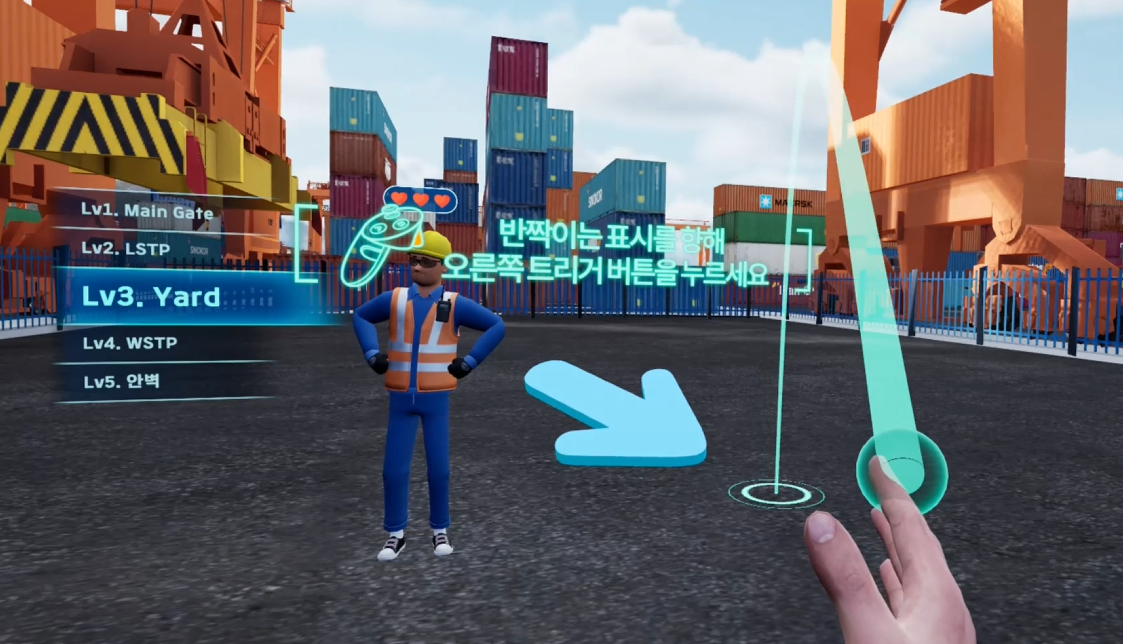

We created experiential quiz content that moves through the main areas of the smart port terminal implemented with 3D modeling according to the export process, and the main areas, equipment, and import/export processes. The quiz is structured with difficulty levels for the general public, trainees, and employees, so that step-by-step in-depth learning is possible through solutions, and when passing each stage, you can obtain glasses, gloves, a walkie-talkie, work boots, and a work jacket to complete the character who works safely at the port.

If you answer incorrectly to 3 or more questions, the scenario ends, but you can try again by pressing the retry button, which encourages your will to escape the port. You can move through the stages, examine the areas of the port in detail, solve quizzes, and get rewards, and you can experience understanding the efficiency and operating principles of smart ports and building theoretical knowledge.

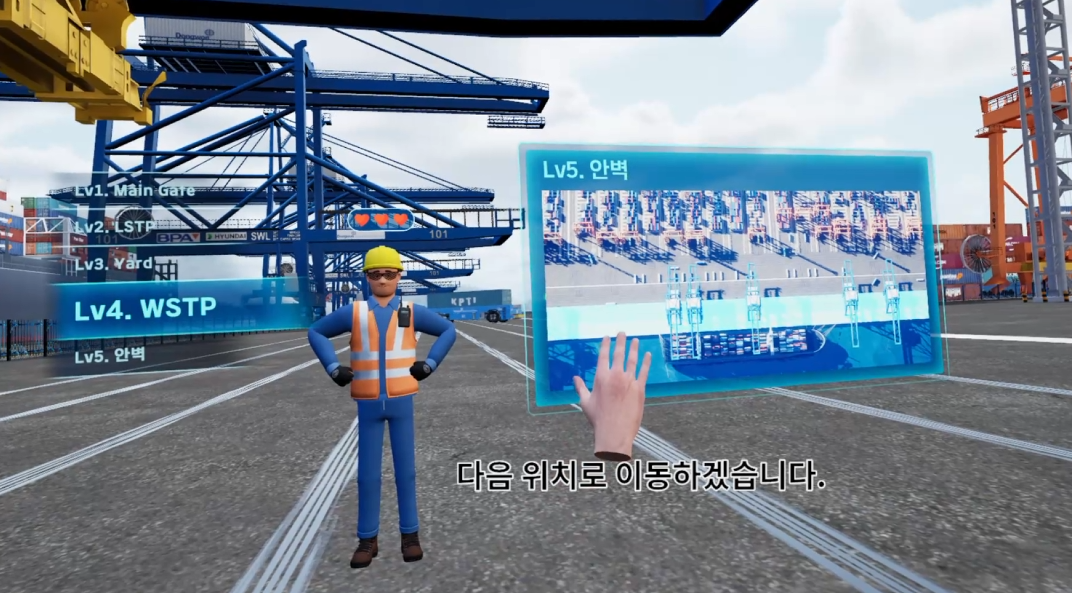

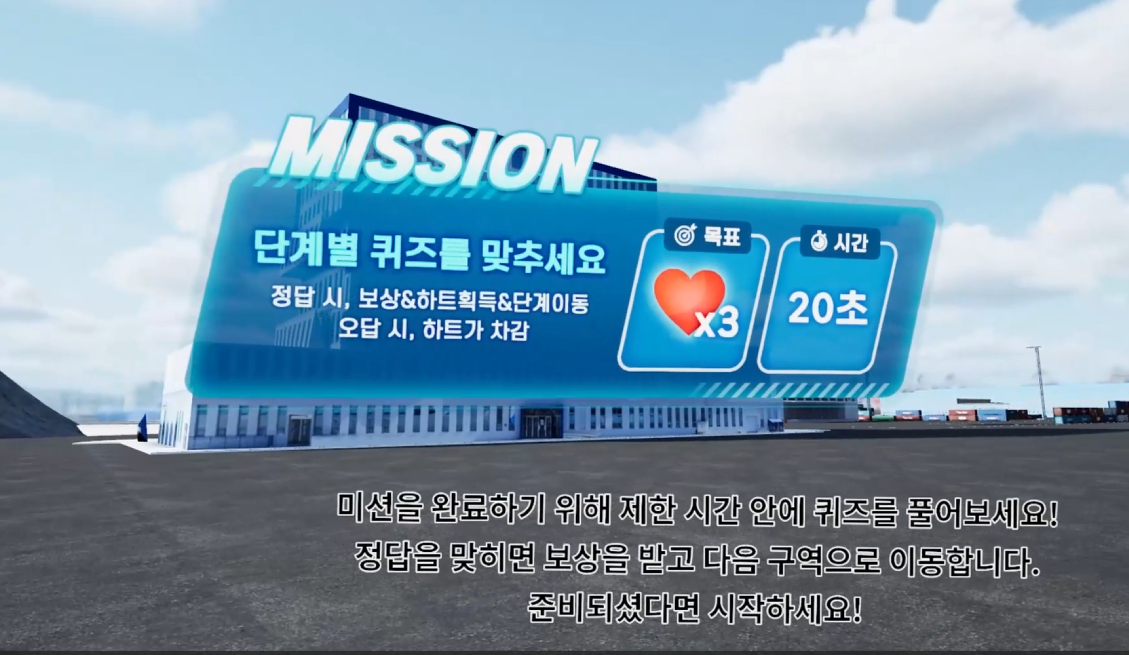

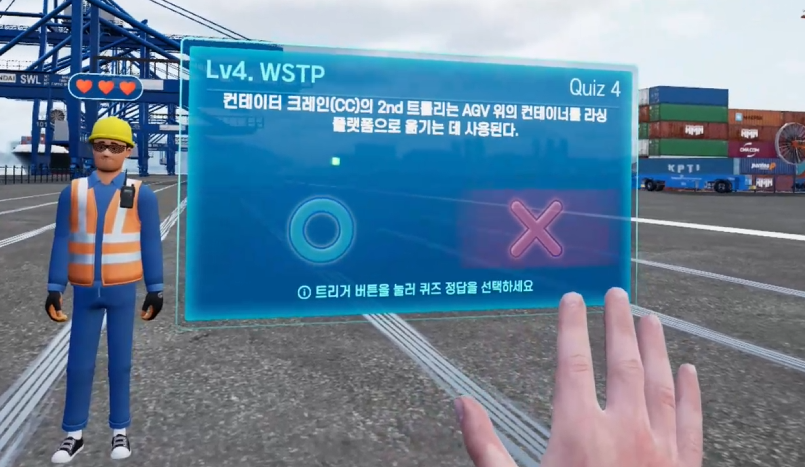

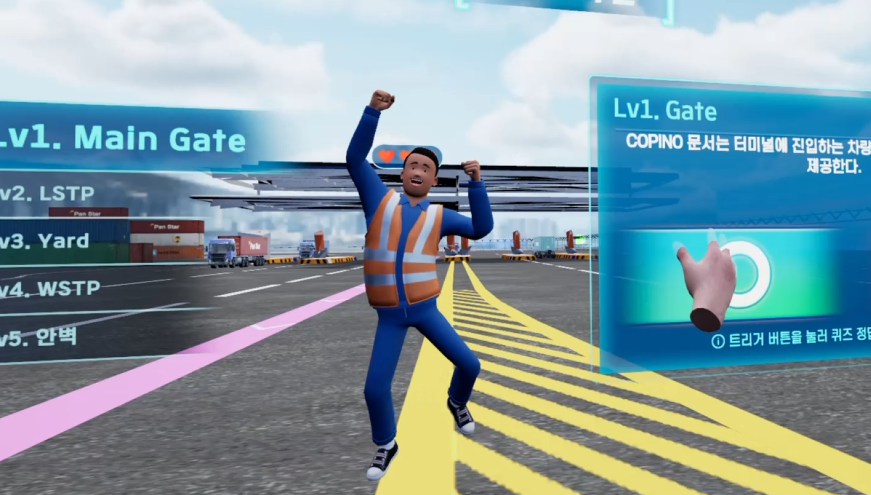

Mission Guide	Quiz solving scene

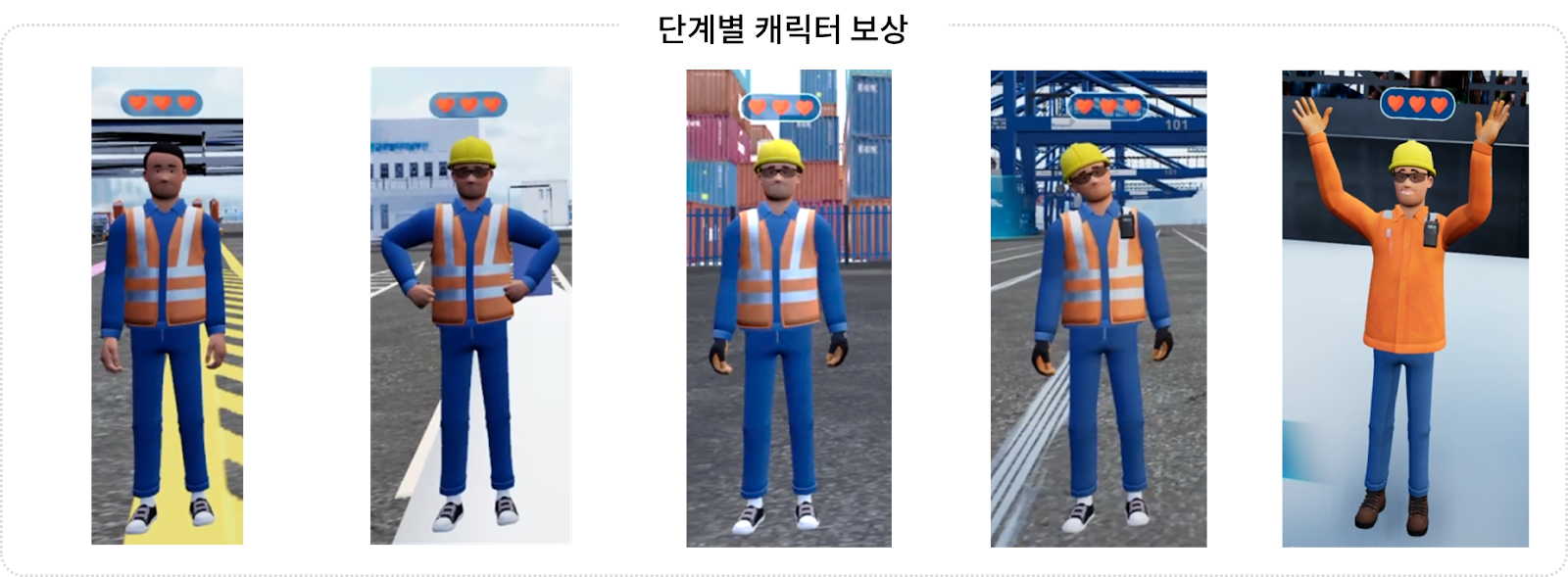

Character appearance when correct answer	Next Zone UI Guide	Teleport move

2-2) Experiential content 2: Rich Stacker operation * Running time: 15 minutes

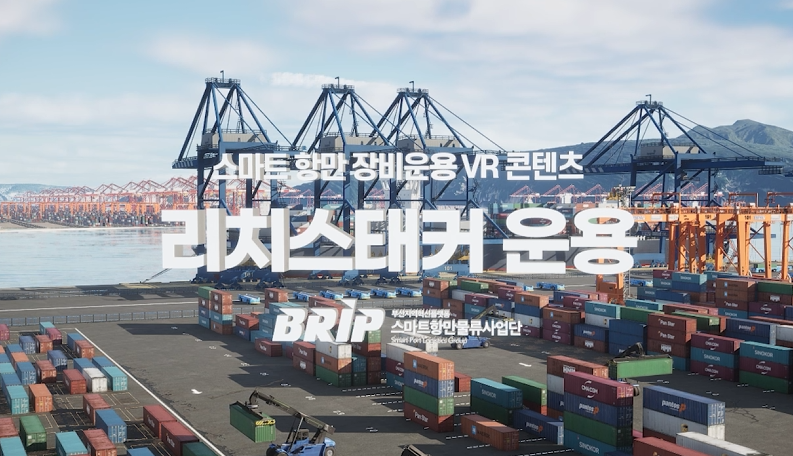

This is content that allows you to practice operating a reach stacker, a device that transports, loads, and removes containers in the yard, and load and unload containers within a limited time in autonomous mode. In practice mode, you learn how to operate the joystick, gear lever, and handle according to the instructions, and in mission mode, you unload or load three containers within 10 minutes each. You can learn how to operate the equipment and gain new experiences by completing missions within a limited time as if you were performing actual work in a virtual environment.

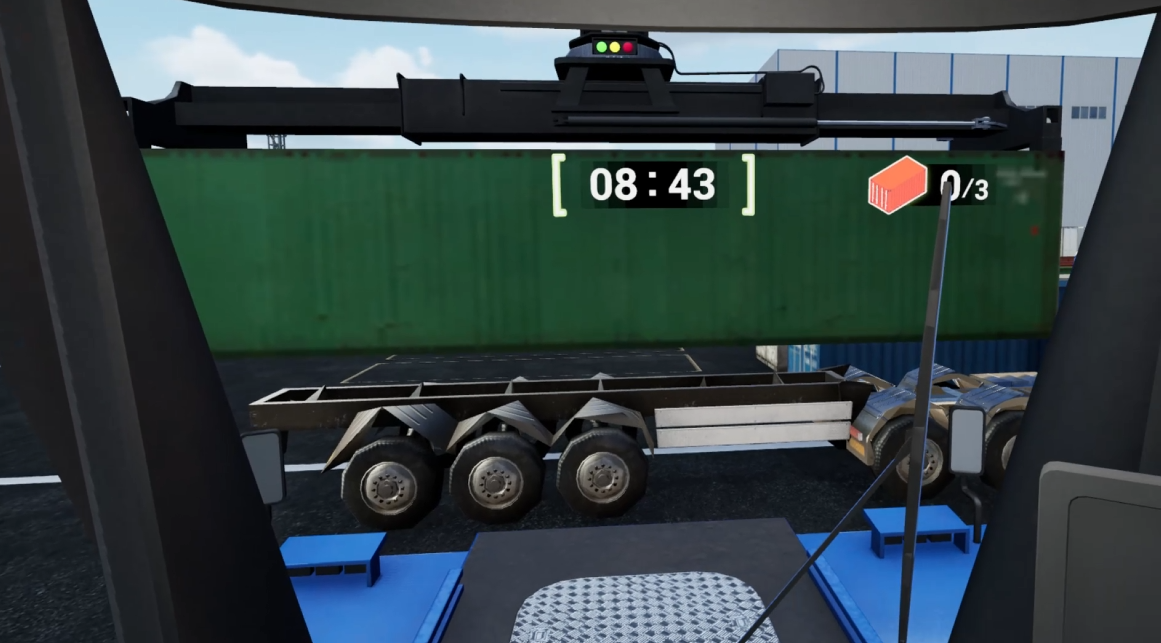

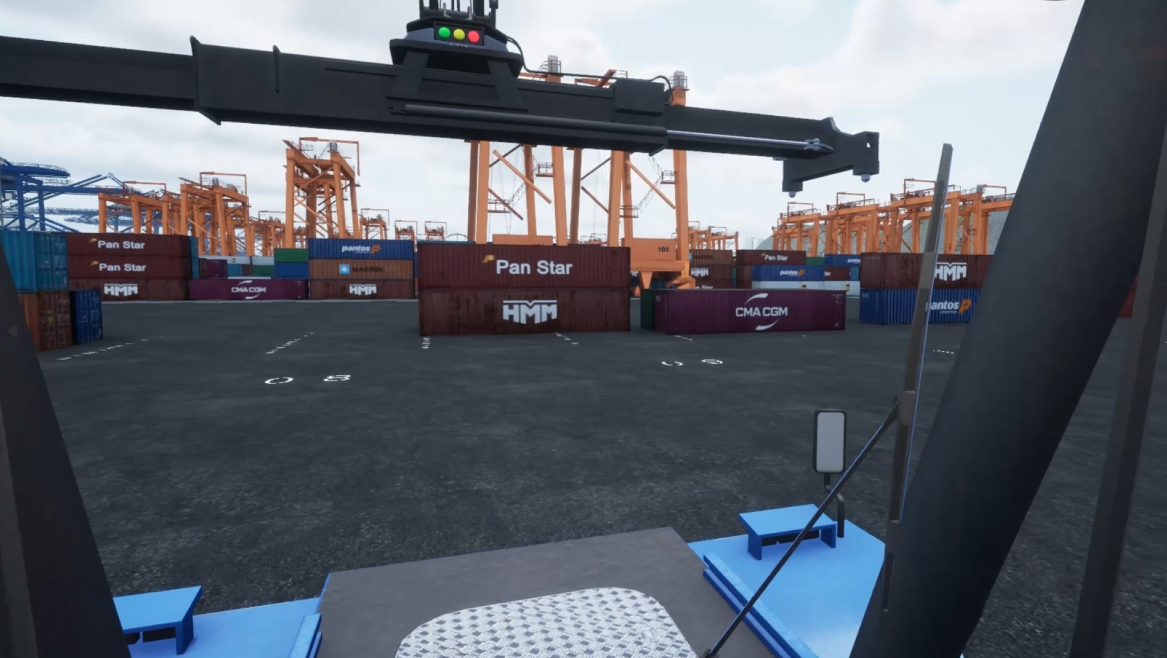

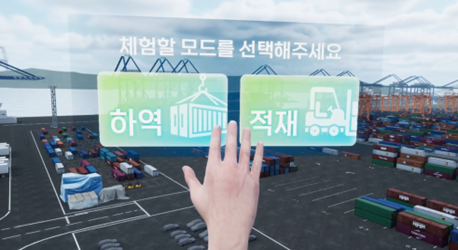

Mission selection	Front view reflecting actual driving

Joystick and steering wheel exercises	Mission completion scene within time limit	Displaying successful results

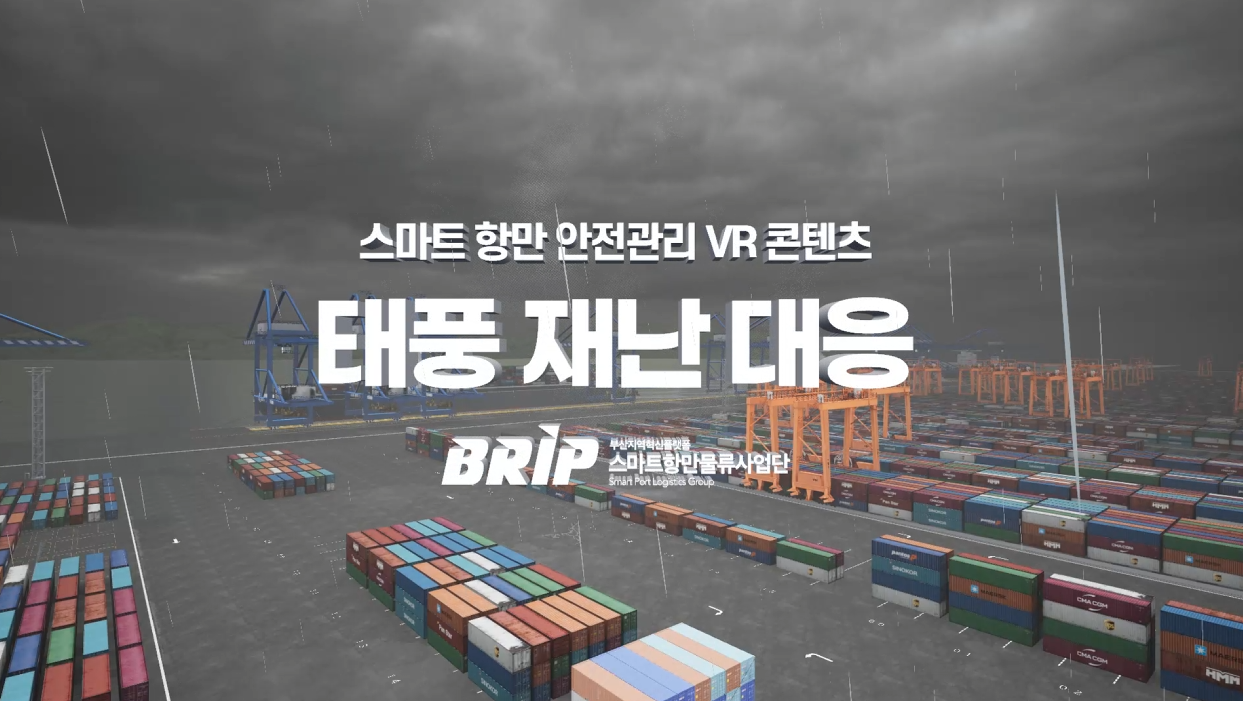

2-3) Experiential Content 3: Typhoon Disaster Response * Running Time: 10 minutes

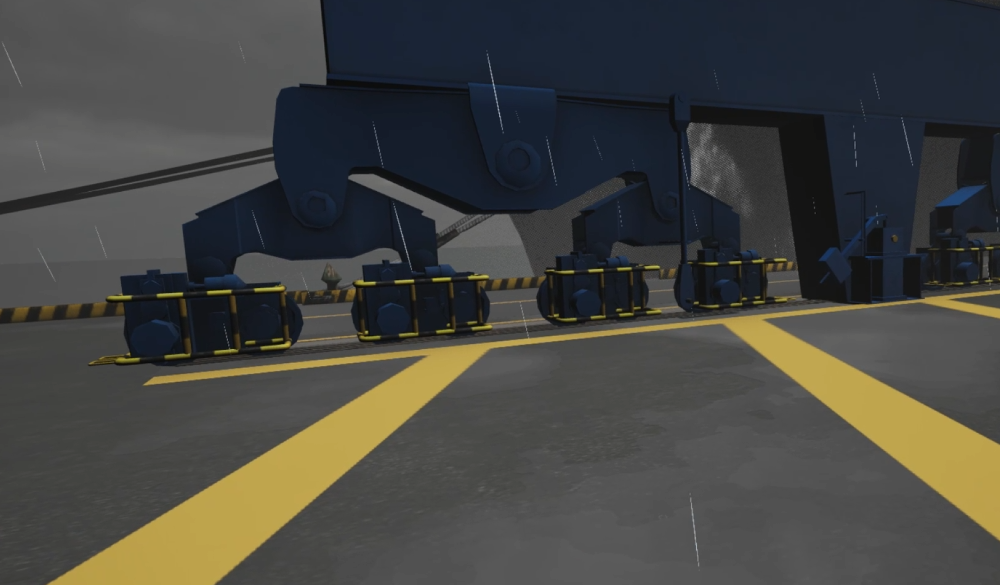

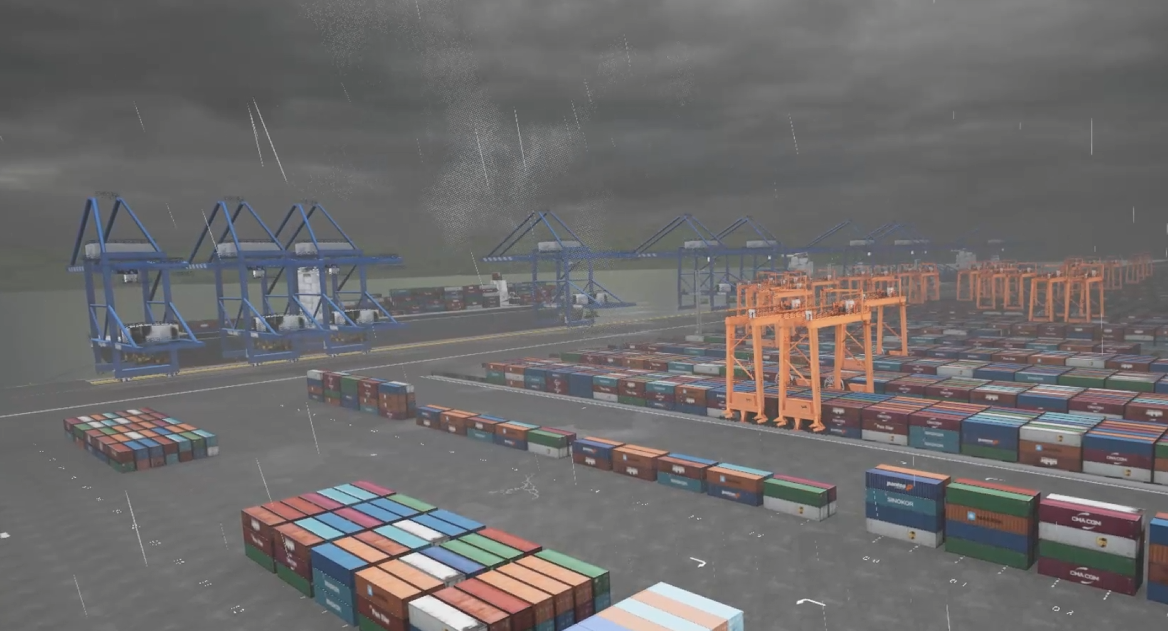

This is an experiential content that teaches you about the importance of preparatory work procedures for responding to typhoons at ports and carries out preparatory work for typhoons according to each guided procedure. In the introduction, you can experience the realistic experience through typhoon sound effects and visual effects of containers collapsing in the wind, and by showing actual news reports, awareness of the dangers of typhoons is raised.

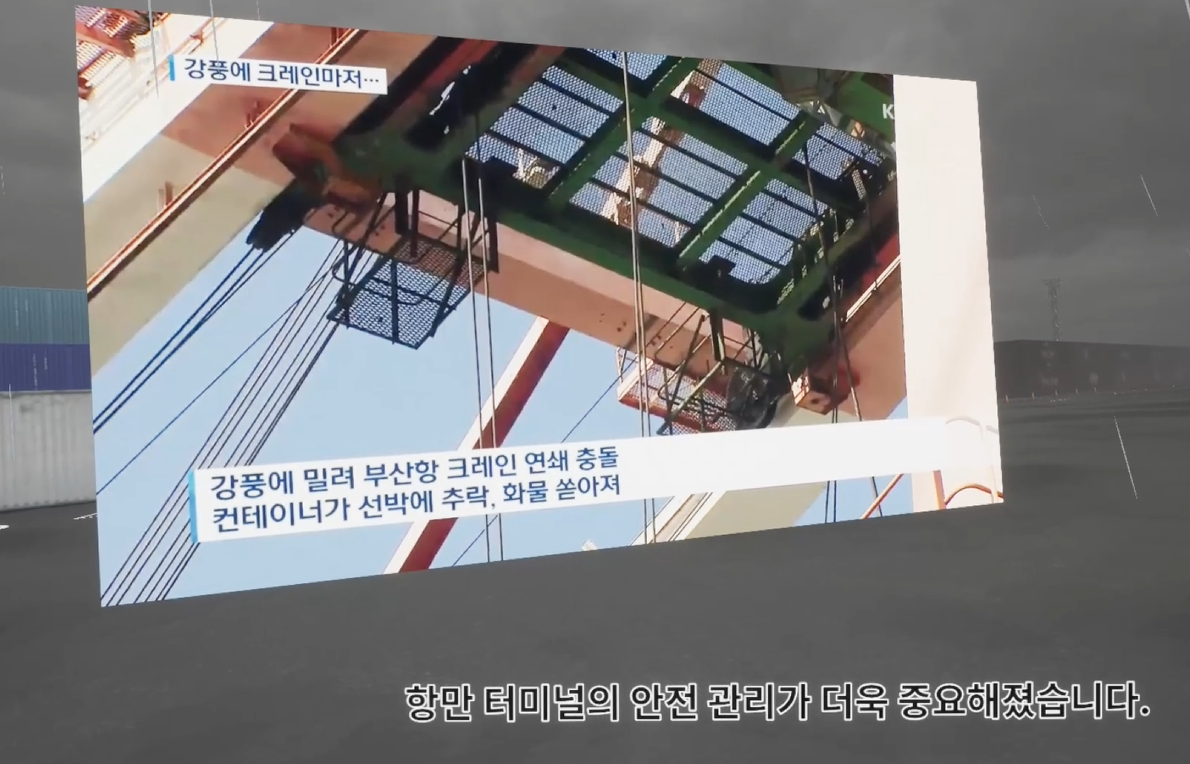

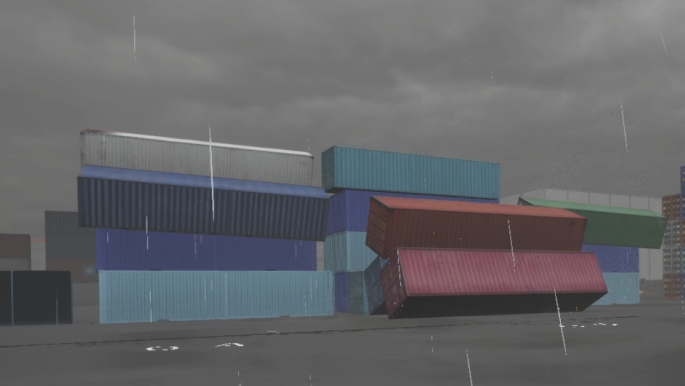

Crane movement due to strong wind	Container collapse	Background explanation through actual news cases

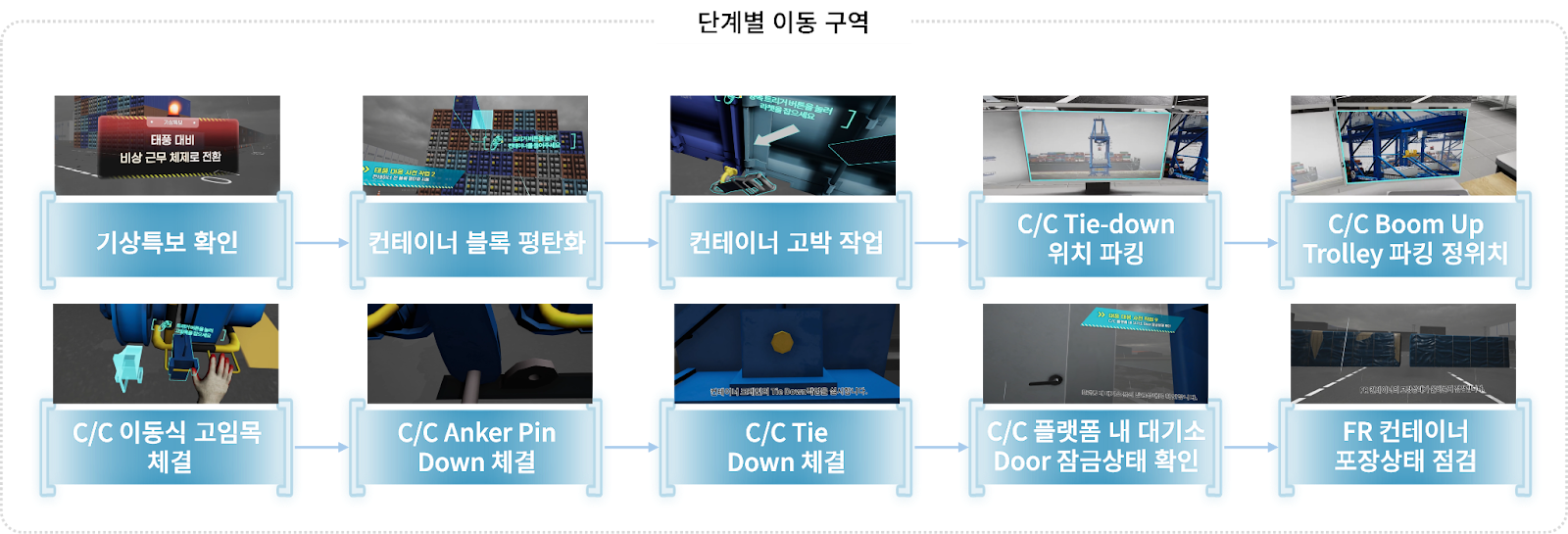

The response implementation configuration consists of a total of 10 steps, and each step involves performing various actions such as one-handed operation, two-handed operation, and pushing and pulling.  This is disaster response content that can bring us closer to a smart port by implementing not only detailed port devices but also the control room.

Typhoon environment of the port	Background explanation through actual news cases

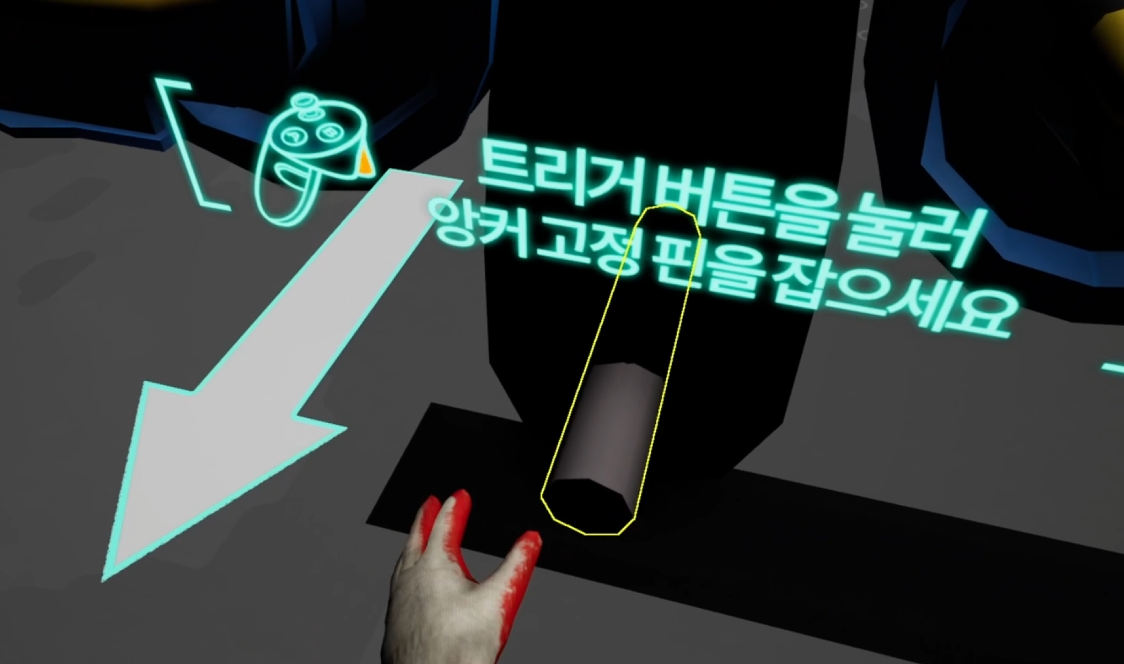

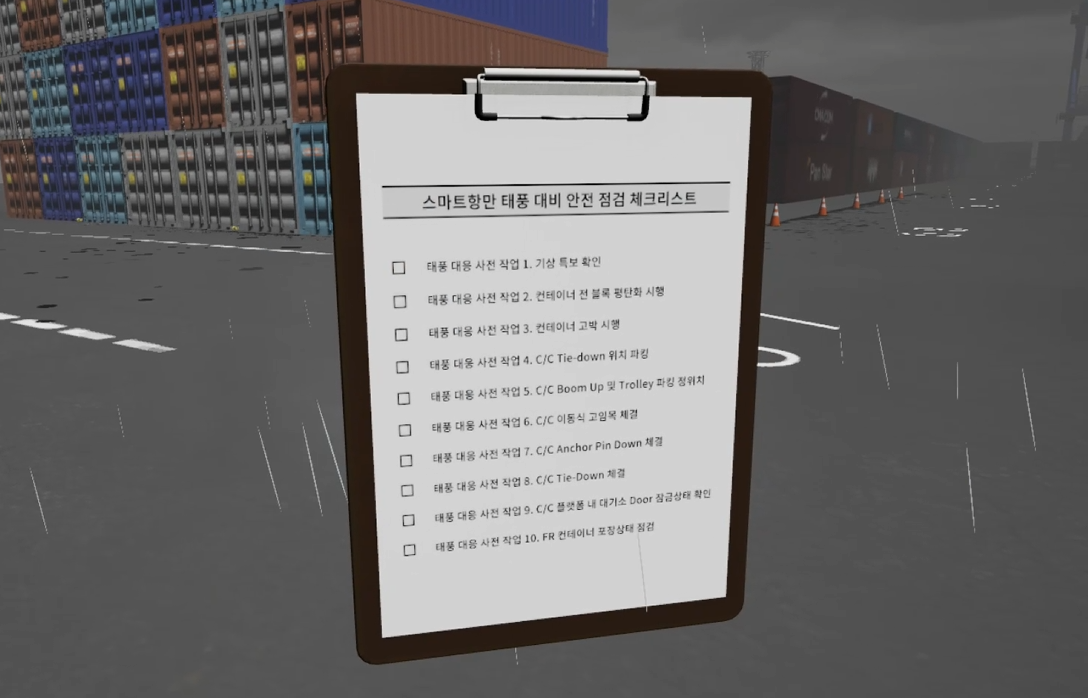

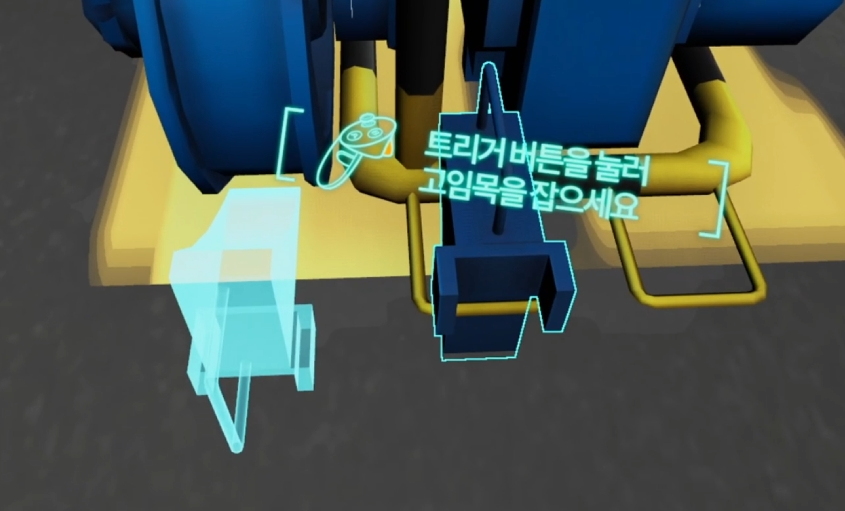

Step Performance Checklist	Fastening of the high-level joint	Pull the anchor pin

Specialized technology and construction effects of content

Content that allows you to experience both a 3D environment implementation and a wide environment through ultra-large, high-quality rendering technology

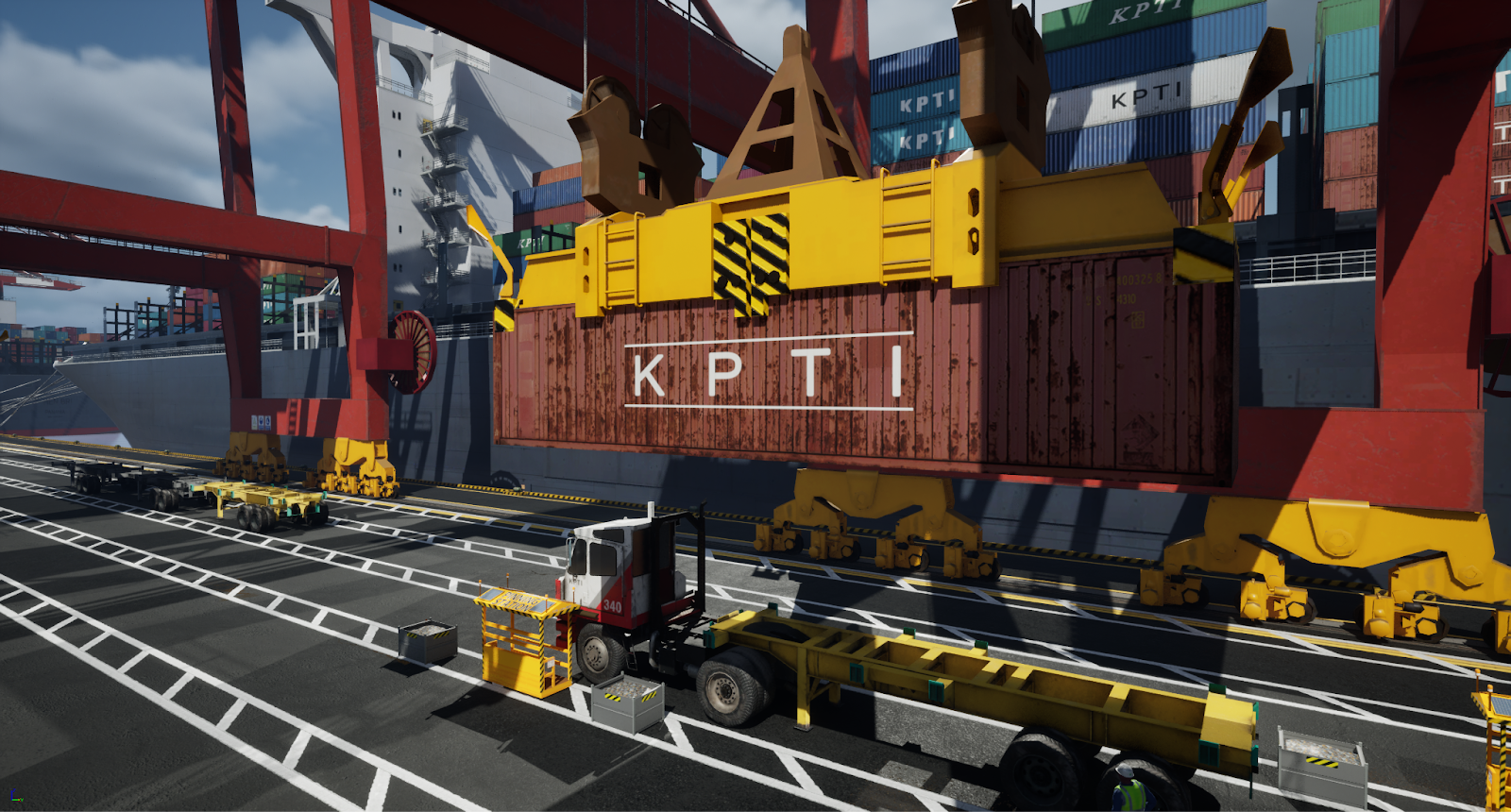

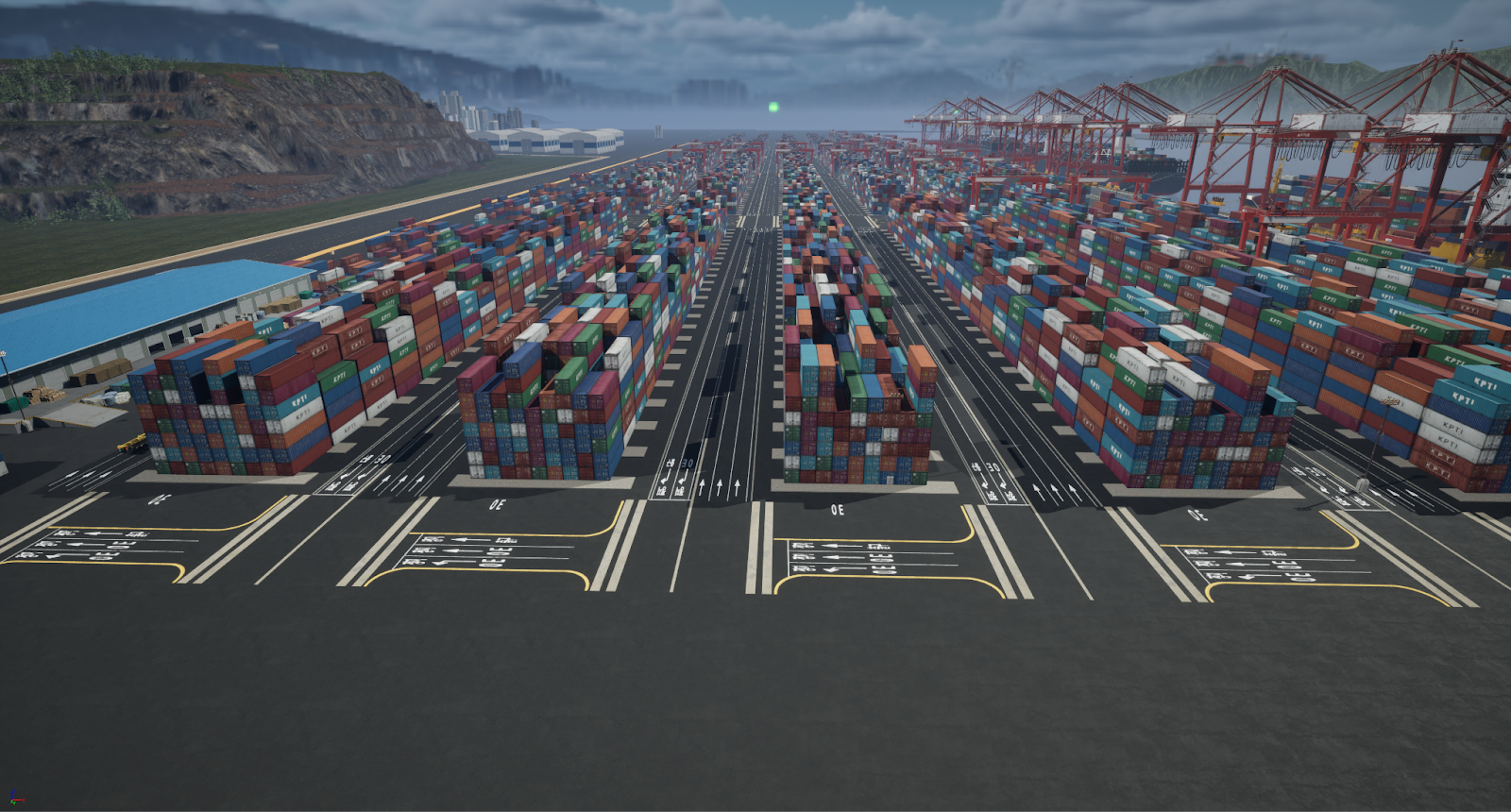

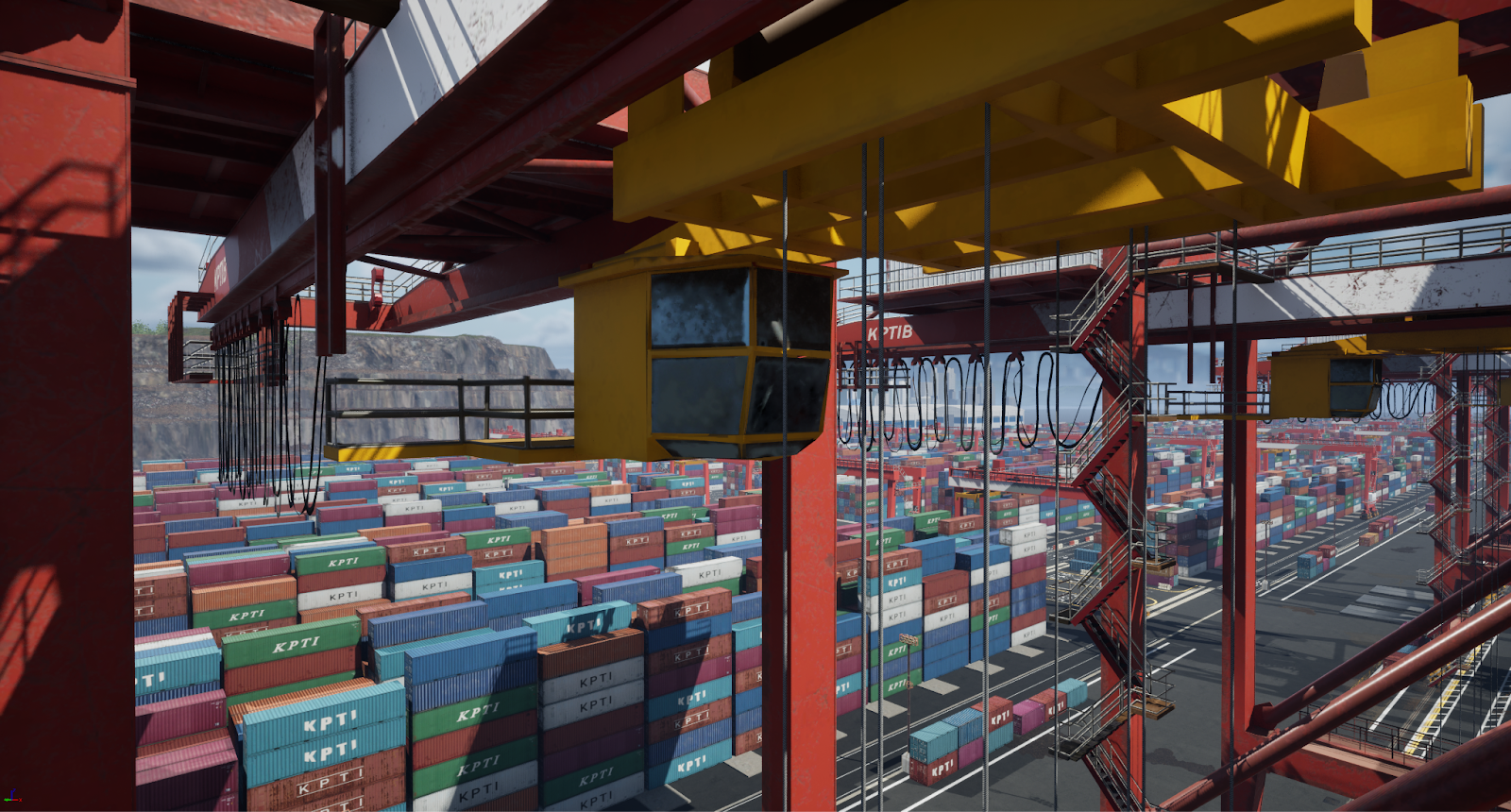

Among the 1,400,000㎡ of fully automated smart container terminal in Busan New Port, the main port area provides a realistic environment. Samwoo Immersion utilized Unreal Engine 5, a specialized technology that connects reality and virtuality, to implement an actual port as is through graphics that pursue photorealism on the same level as movie CG and real life without restrictions such as the number of polygons.

Smart port content, with its high-quality graphics and realistic rendering capabilities, goes beyond the realm of simple visualization and evolves into immersive digital content that encompasses interactive simulation, education, and operational scenario testing, as it is imported directly from the engine without any quality degradation and rendered in real time.

The logistics education simulation experience content based on new technology goes beyond simple educational materials and provides a new realistic experience, thereby injecting various sensory information and making it a memory rather than a forgetting. The logistics education simulation experience for fostering talents and strengthening industrial competitiveness in the era of logistics 4.0 will remain in the brain of connected neurons for a long time through visualization.

	Visualization of port productivity information Fostering the ability of participants to proactively solve problems in the field through virtual scenarios that reflect actual work environments
	3D realization of advanced port work sites Building an educational infrastructure that integrates advanced port mirror-type practice and enhancing the effectiveness of the educational curriculum to foster innovative talents
	A variety of immersive experiences Strengthening interaction between instructors, learners, and learners through experiential logistics simulation education

In response to the digital transformation demand for smart port transformation in major ports and national policies around the world, SamwooImmersion is supporting technological innovation of companies in the Southeast region in conjunction with the port logistics regional innovation platform.

The moment you immerse yourself, you grow!

Maximize your capabilities with XR and AI (X-RAI) technology.
