Ultra-high-resolution XR headset for training and simulation
Varjo XR-4 is an industrial-grade XR headset that combines ultra-high-resolution displays approaching the limits of human vision with precise mixed reality technology. It delivers realistic immersion and reliable training experiences across aviation, defense, manufacturing, and education simulation environments.
Samwoo Immersion is the official VARJO partner in Korea.
Beyond the limits of immersion,

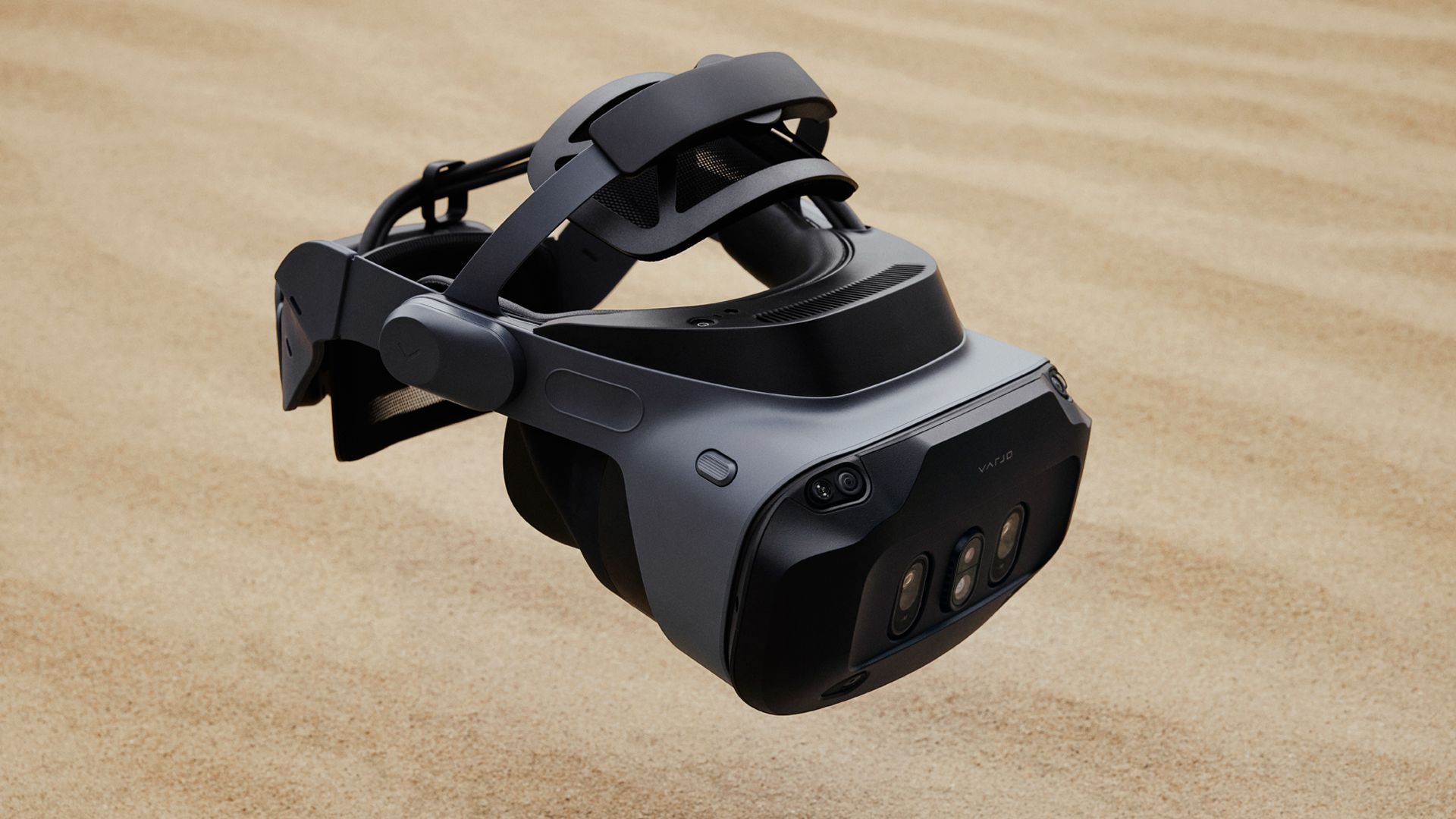

VARJO XR-4
VARJO XR-4 delivers accurate real-world conditions the moment users enter a simulation,
providing the most natural, complete sense of presence
for training and simulation experiences.
✔
High-resolution passthrough mixed reality See the real world clearly through high-resolution cameras and blend it with virtual content.
✔
Depth-aware occlusion and masking Understand depth between real elements and virtual objects for natural visual interactions.
✔
Precision visual training at an operational level Perform high-accuracy visual tasks required in real training within an XR environment.
Product Specifications · Contact Us
*Prices include import duties and value-added tax (VAT).
*Delivery may take a minimum of 2 weeks and up to 6 weeks. *Controllers (left/right) are not included in the standard package.
Fixed Focus
VARJO XR-4 Fixed Focus is an XR device based on a display
with a single fixed focal distance,
designed to deliver
stable visuals and a consistent viewing experience.
It is optimized to maintain predictable visual quality
even during repetitive training sessions and extended periods of use.
Focal Edition
VARJO XR-4 Focal Edition is an XR device equipped with
eye tracking and automatic focus technology.
By recognizing the user’s gaze in real time, it delivers
a more natural and true-to-life visual experience.
It is designed to provide a level of immersion that closely resembles
how users perceive real-world environments.

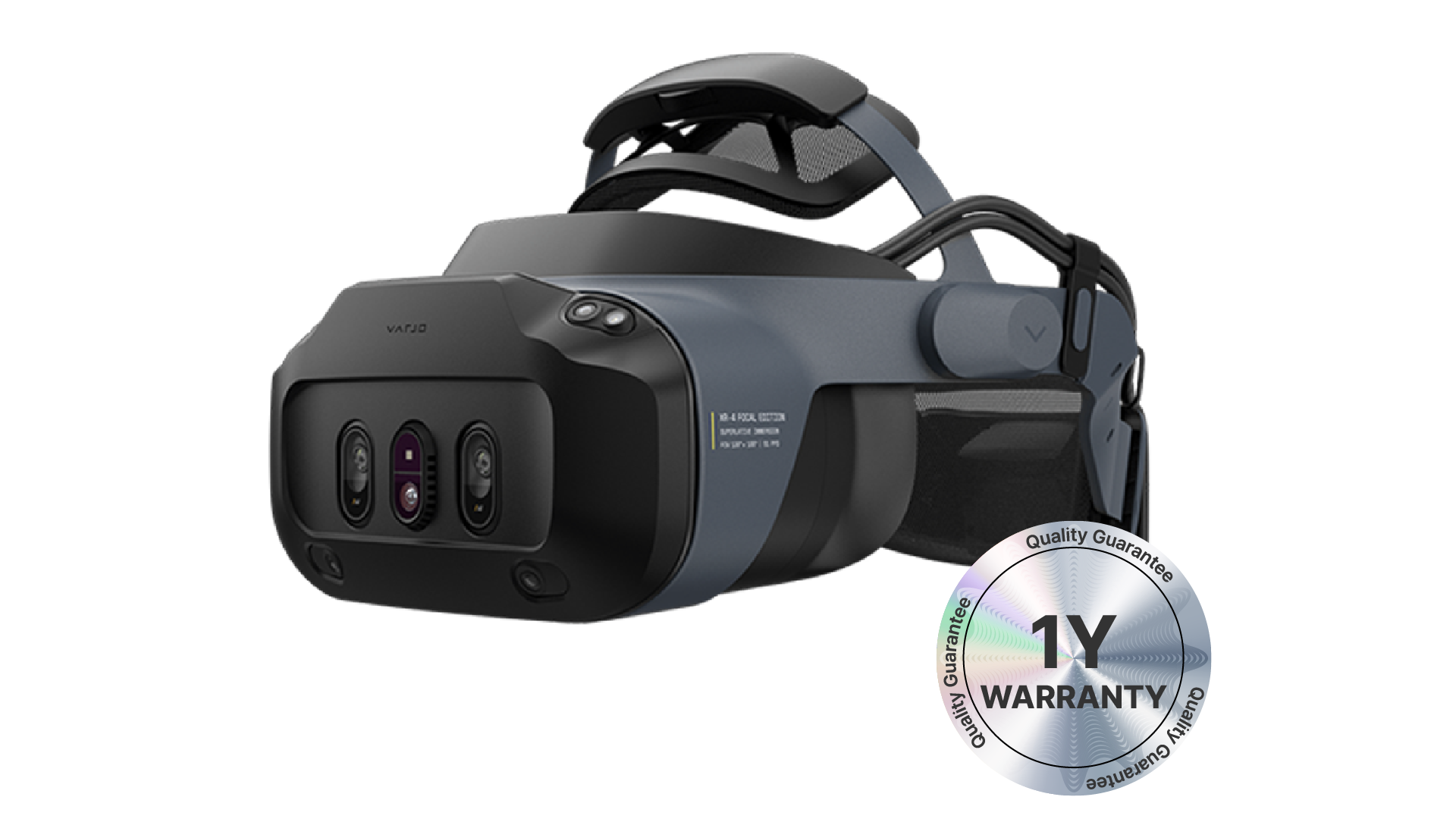

XR-4(Fixed Focus) + Offline Package
(1 years of warranty)
$8,990
Offline Package
1 years of warranty
Dual mini-LED displays
3840 x3744 resolution at 51 PPD
120° x 105° field of view
98% sRGB, 96% DCI-P3 color space
90 Hz refresh rate
200 nits brightness
20 MP passthrough cameras
33 PPD passthrough
Inside-out tracking
ART and OptiTrack supported via API
300 KPix LiDAR with 7m range
200 Hz eye tracking
Auto-IPD
Varjo Controllers included
Integrated speakers
Noise-cancelling microphones
Zero gravity comfort fit
XR-4(Fixed Focus) + Varjo Base Pro
Perpetual license + Offline Package
(1 years of warranty)
$11,990
Offline Package
1 years of warranty
Dual mini-LED displays
3840 x3744 resolution at 51 PPD
120° x 105° field of view
98% sRGB, 96% DCI-P3 color space
90 Hz refresh rate
200 nits brightness
20 MP passthrough cameras
33 PPD passthrough
Inside-out tracking
ART and OptiTrack supported via API
300 KPix LiDAR with 7m range
200 Hz eye tracking
Auto-IPD
Varjo Controllers included
Integrated speakers
Noise-cancelling microphones
Zero gravity comfort fit
Varjo Base Pro Perpetual license
XR-4(Focal Edition) + Offline Package
(2 years of warranty)
$15,990
Offline Package
2 years of warranty
Dual mini-LED displays
3840 x3744 resolution at 51 PPD
120° x 105° field of view
98% sRGB, 96% DCI-P3 color space
90 Hz refresh rate
200 nits brightness
20 MP passthrough cameras
51 PPD passthrough with Autofocus
Inside-out tracking
ART and OptiTrack supported via API
300 KPix LiDAR with 7m range
200 Hz eye tracking
Auto-IPD
Varjo Controllers included
Integrated speakers
Noise-cancelling microphones
Zero-gravity comfort fit
XR-4(Focal Edition) + Varjo Base Pro
Perpetual license + Offline Package
(2 years of warranty)
Three core values that define the quality of the experience

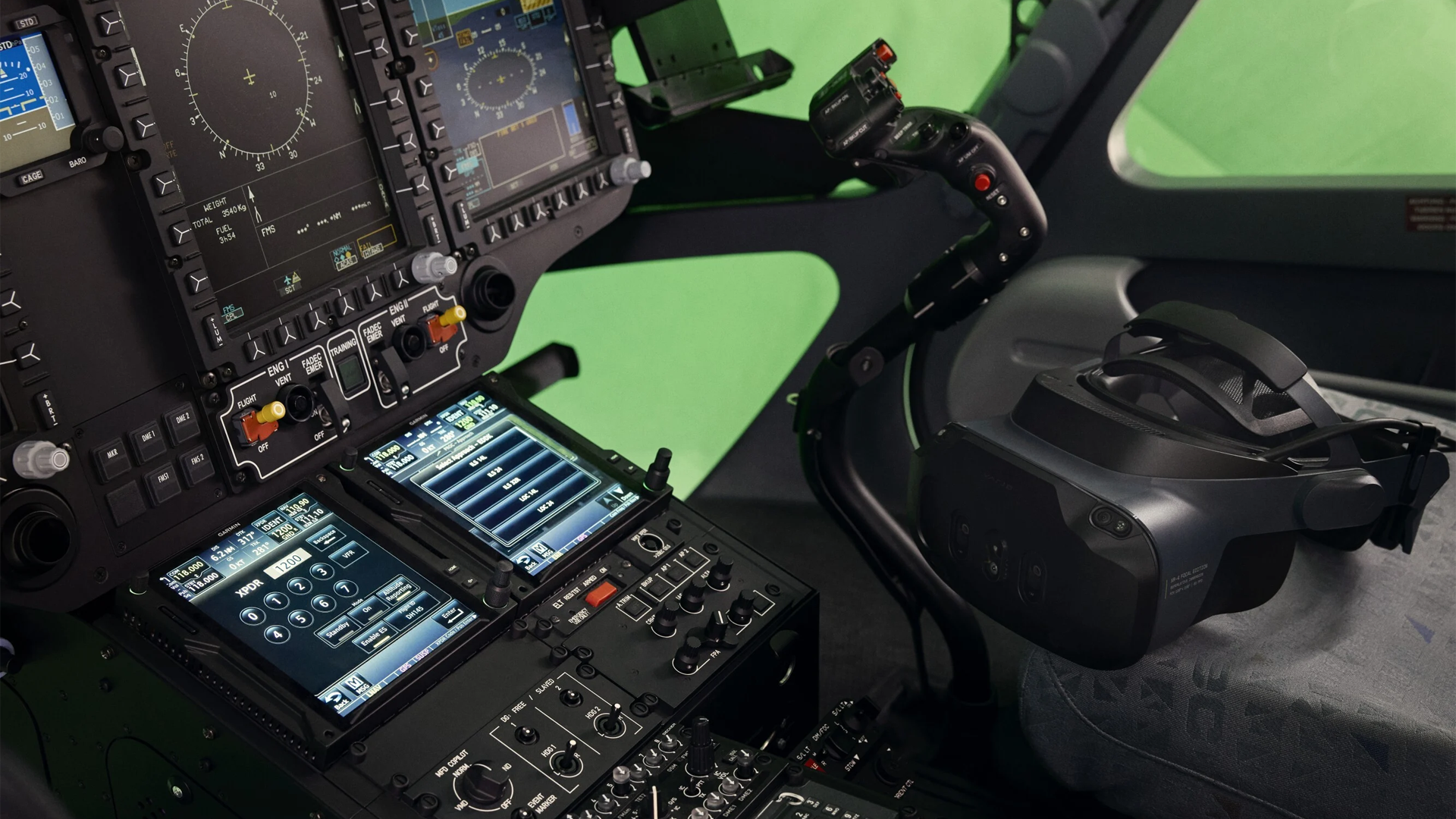

Built for high-performance simulation
Designed for training and simulation across air, land, and sea,
delivering uncompromising realism.

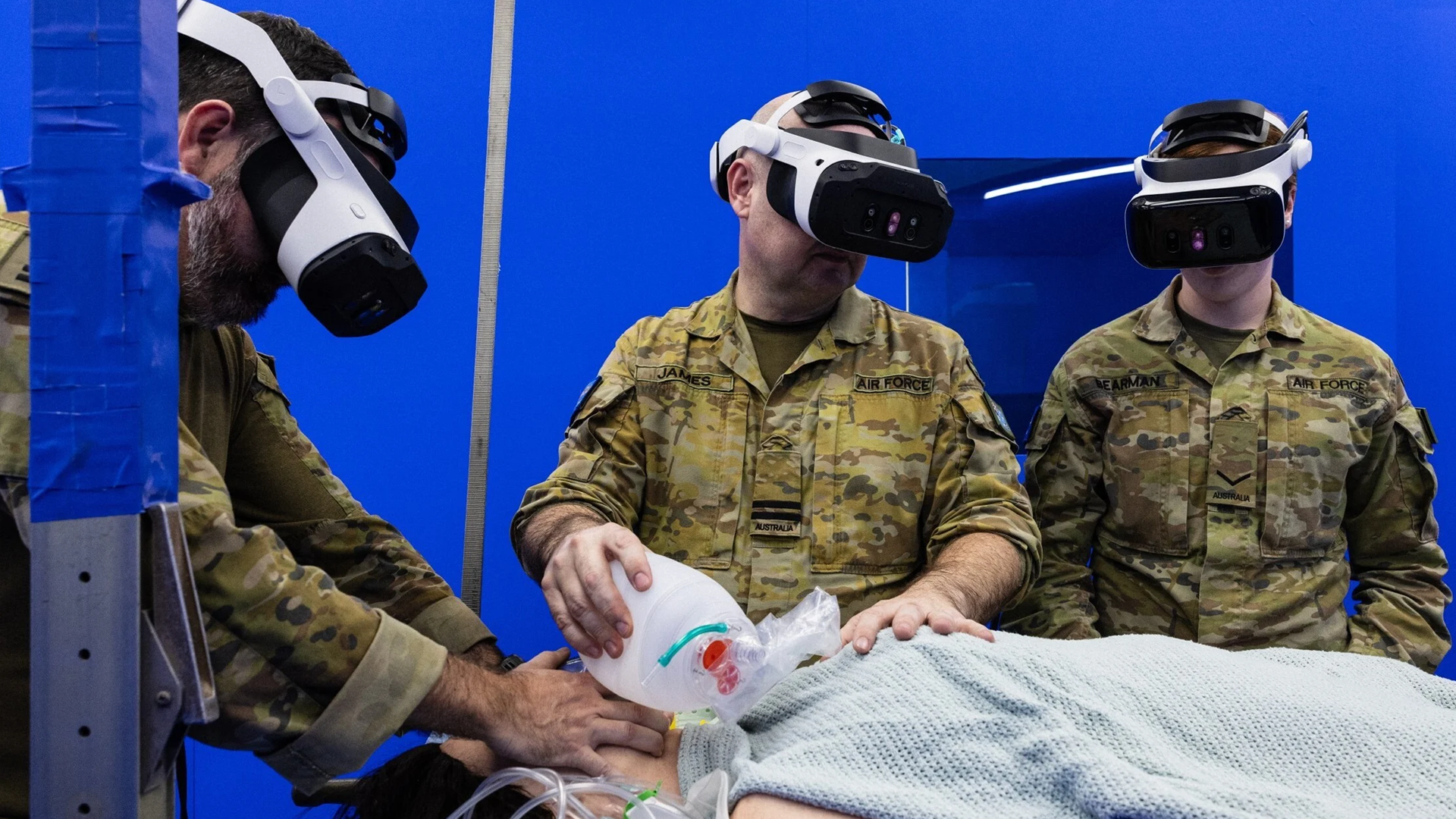

Precise, readable visual fidelity
Visual clarity that makes switches, labels, and instruments readable,
meeting real training requirements.

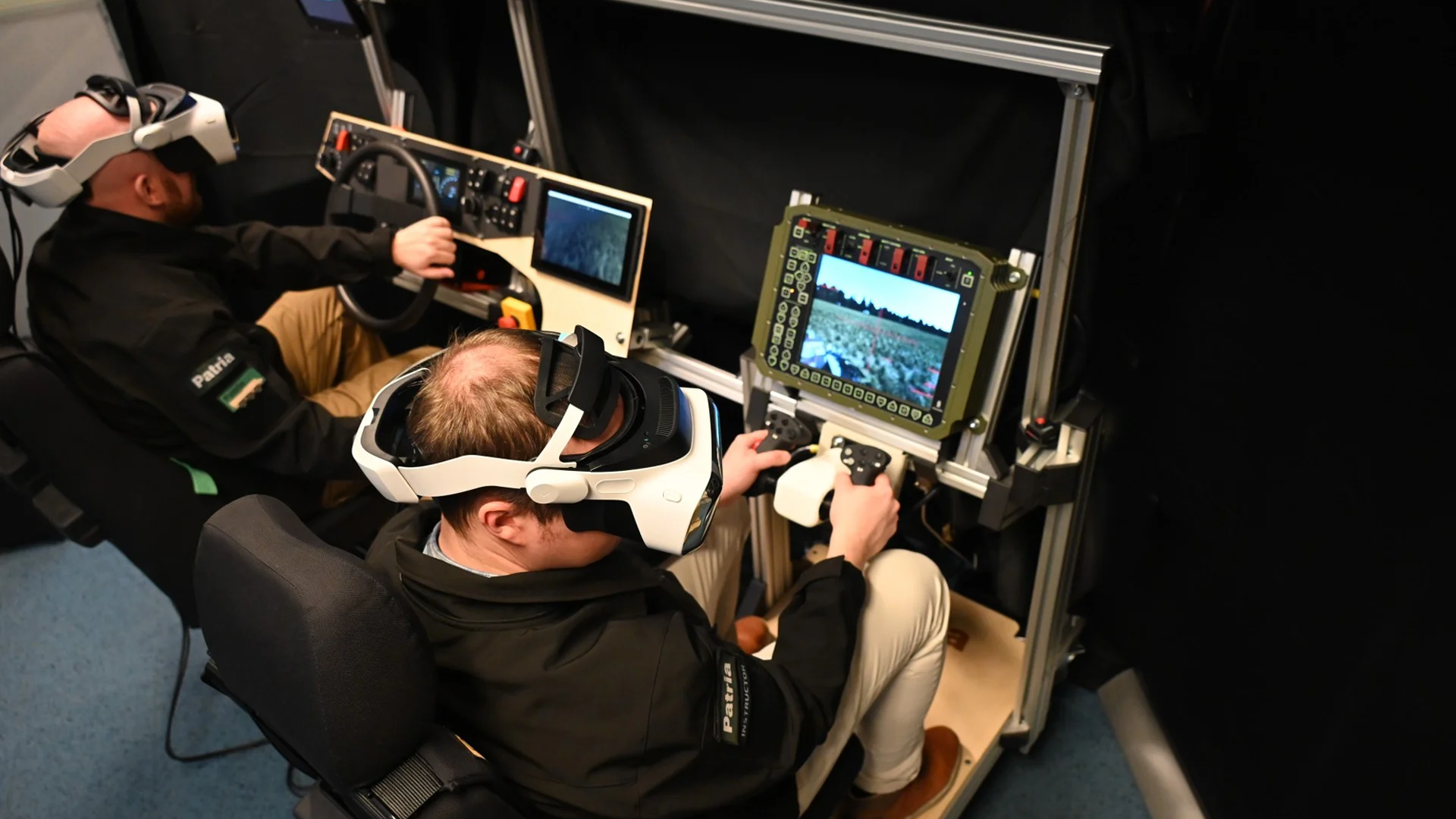

Training without space or cost barriers
Achieve simulator-grade immersion with a much smaller footprint and lower cost.
Why VARJO XR-4?
A solution designed to address real-world training challenges
XR training that lacks precision
Many XR headsets fall short in resolution and readability, making it difficult to run
high-precision training using real instruments, labels, and text.
Large simulators that demand space and budget
Traditional simulators often require substantial space and high costs to build and maintain,
limiting access and scalability.
Training disconnected from real equipment
Virtual-first training can be hard to integrate with physical controls and tools,
reducing transferability to real operations.
The VARJO XR-4 solution
VARJO XR-4 delivers near-human-eye resolution and high-precision mixed reality,
enabling accurate readability and a new training approach that works alongside real equipment.
Key Features

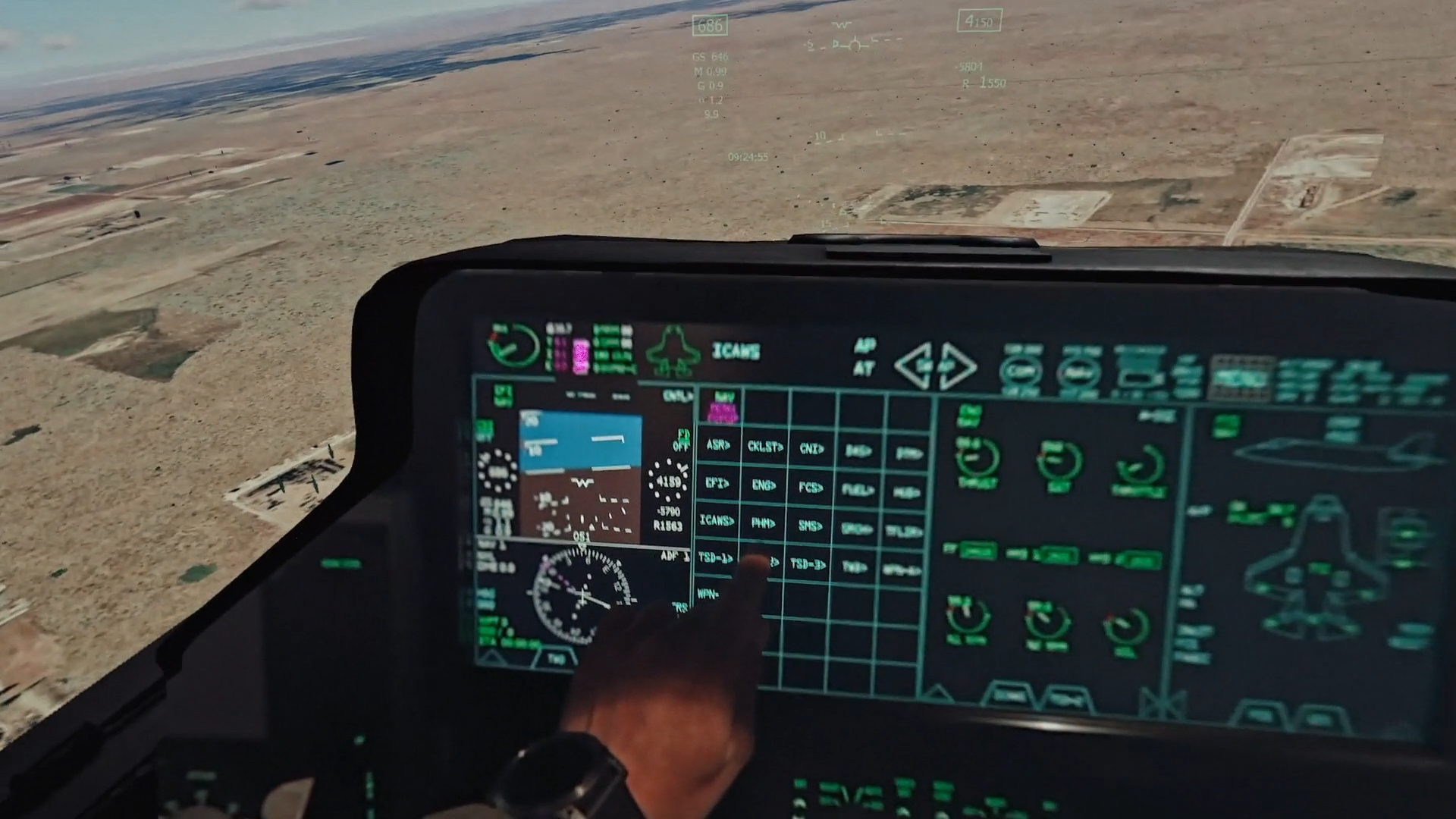

Ultra-High-Resolution Display
3840 × 3744 resolution per eye, delivering up to 51 PPD
for exceptional visual clarity.

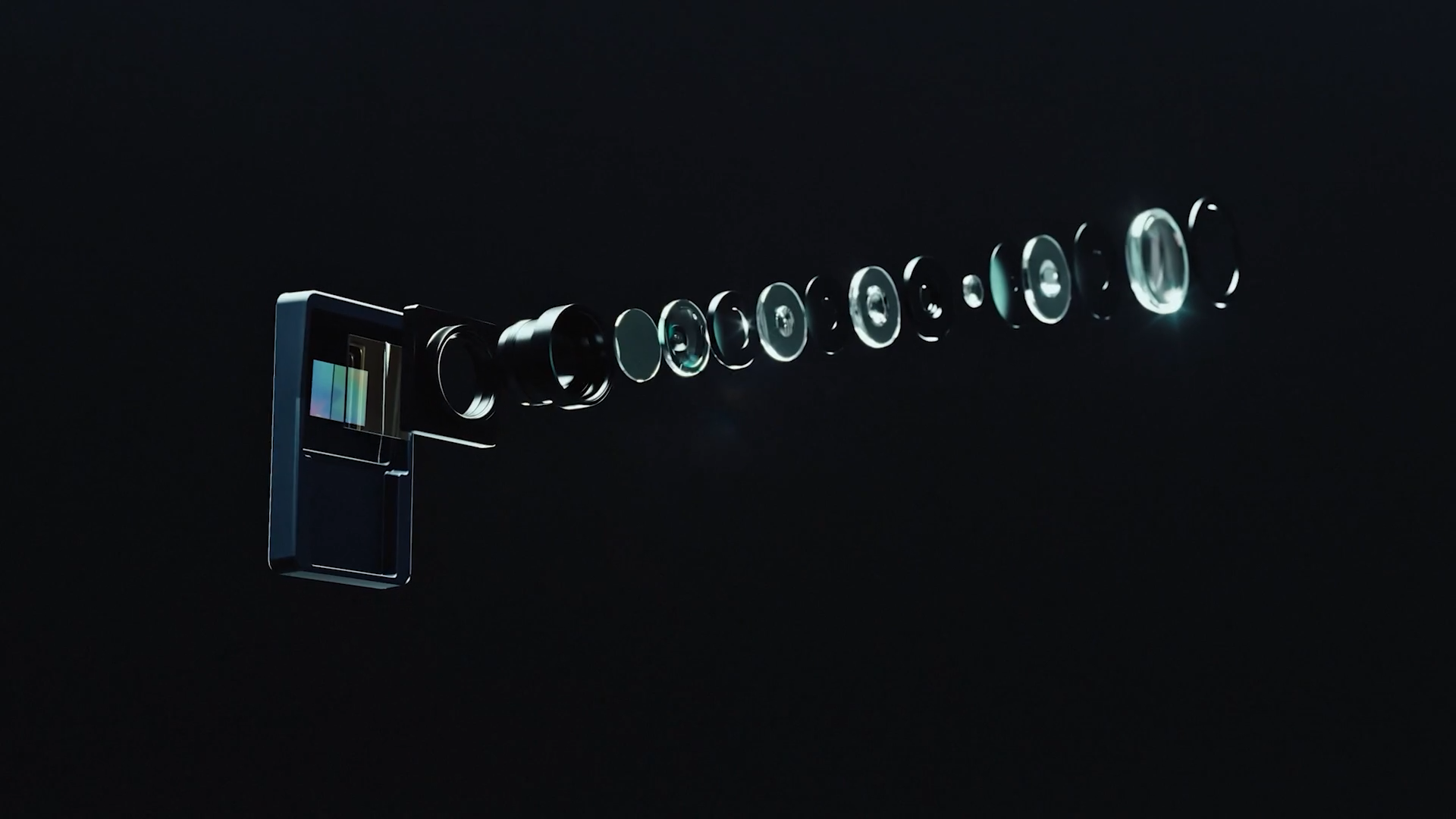

Precision Passthrough & Mixed Reality Sensors
Equipped with dual 20 MP cameras, LiDAR,
and RGB ambient light sensors.

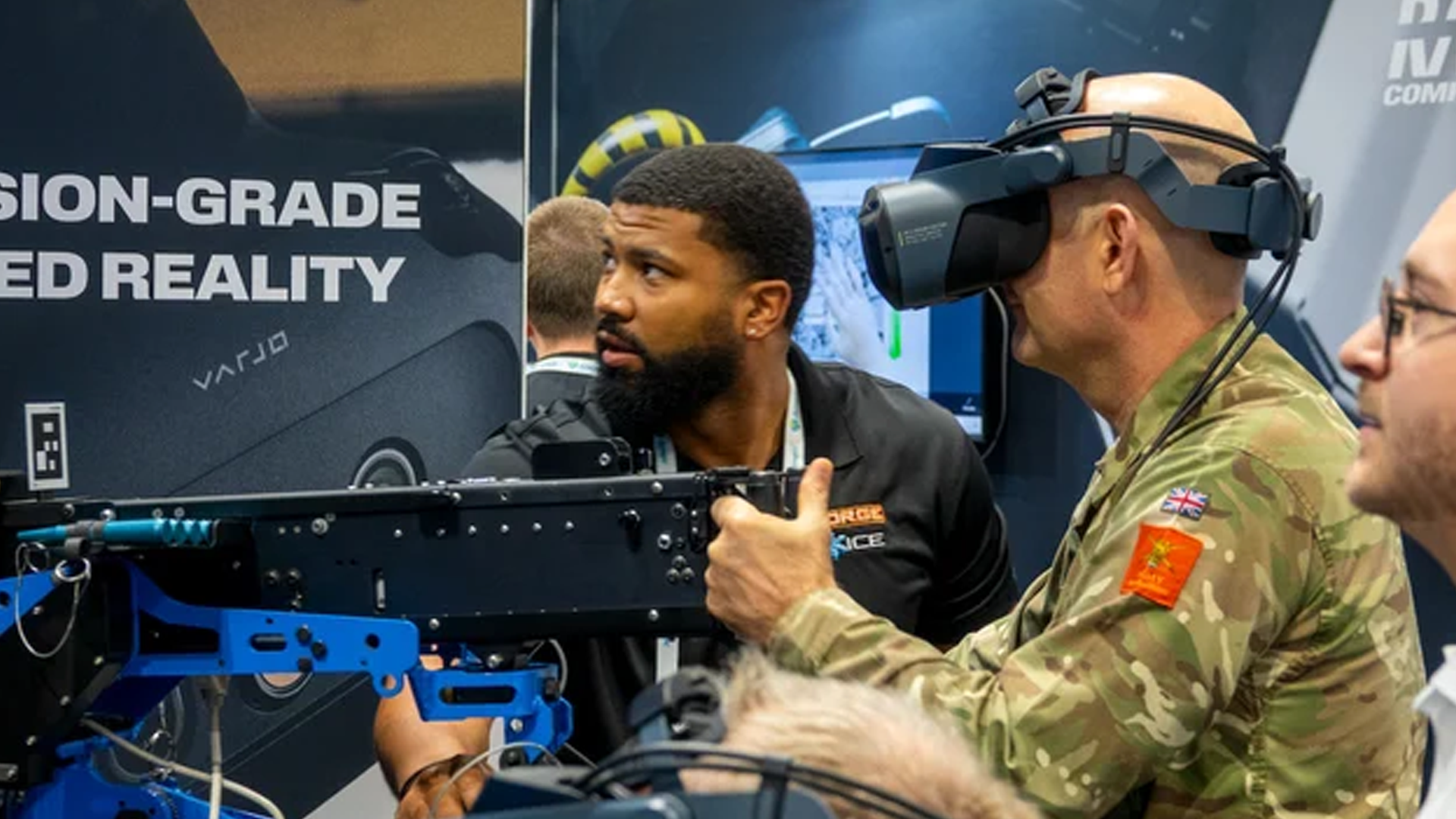

Advanced Eye Tracking & Autofocus
Supports 200 Hz eye tracking and the world’s first
gaze-driven autofocus technology.

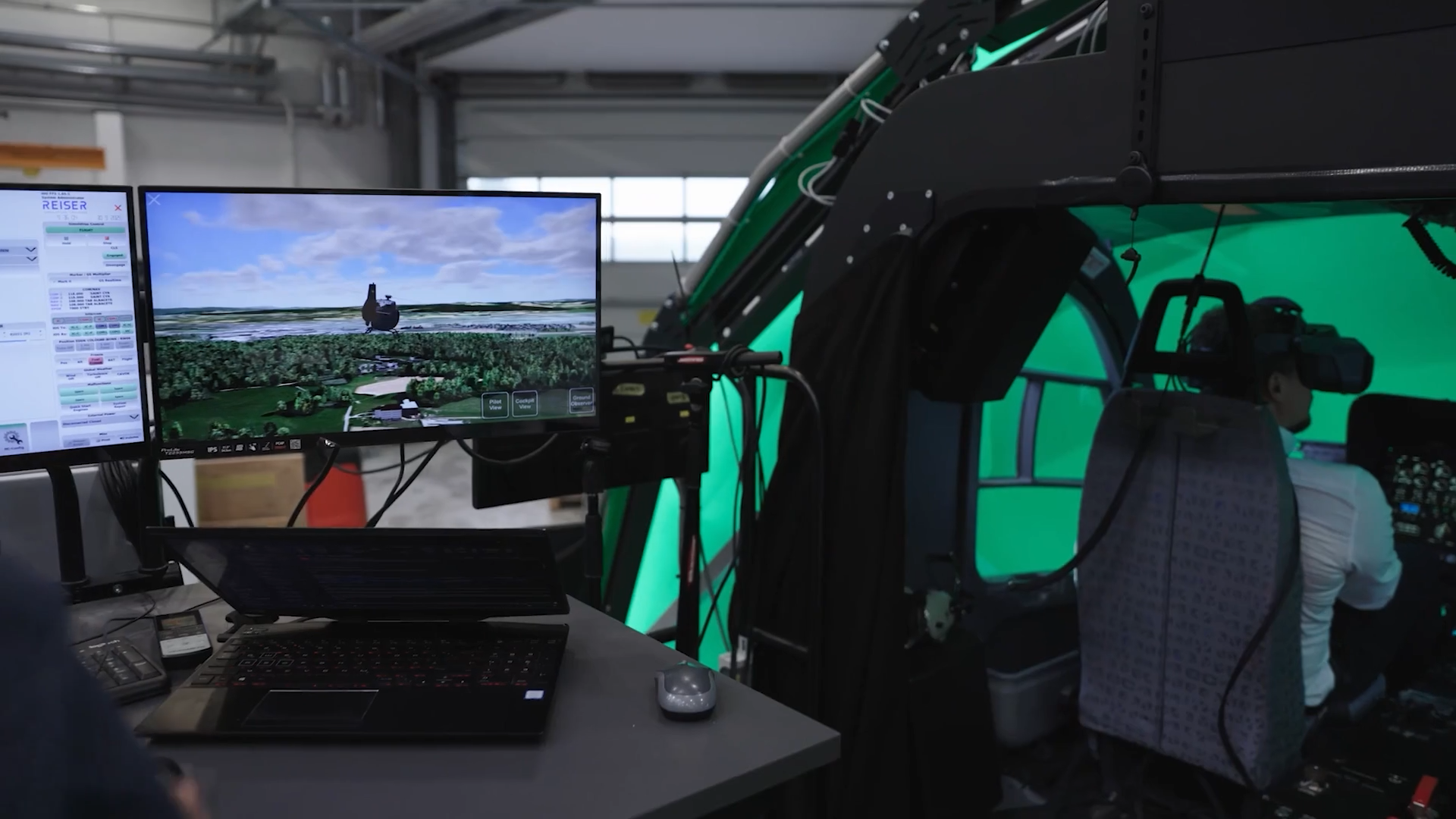

Tracking & Audio System for Training
Integrated inside-out tracking and spatial audio
optimized for training environments.
Key Benefits
High-Resolution Display
High-Precision MR Passthrough
Eye-Tracked Rendering
High-Precision Spatial Tracking
Designed for Extended Wear
Purpose-Built for Training & Simulation
Even More Impressive Up Close
Explore the differentiators that make VARJO XR-4 stand out.
Human-Eye-Class Resolution
4K-class resolution per eye and up to 51 PPD for precise readability of fine instruments and text.
Wide Field of View for Immersion
A 120° × 105° field of view fills your training scene naturally.
Accurate Color Reproduction
98% sRGB and 96% DCI-P3 coverage delivers realistic visual information.
High-Contrast Display
A 1:10,000 contrast ratio maintains readability in high-dynamic-range lighting conditions.
Train with Real Hardware
Use real controls and tools while staying immersed in virtual scenarios.
Comfort for Extended Sessions
A comfort-first fit designed to reduce fatigue during long training programs.
Precise Motion Tracking
Inside-out tracking and hand tracking enable natural interaction and movement recognition.
High-Resolution Passthrough
Dual 20MP cameras provide clear, detailed awareness of your real environment.
Depth-Based Occlusion
Accurately represents depth relationships between real objects and virtual content.
Gaze-Driven Autofocus
Focus adjusts based on where you look, supporting precision tasks.
Advanced Masking and Compositing
Masking and chroma-key compositing help create purpose-built MR training environments.
Applications
VARJO XR-4 drives innovation across a wide range of real-world environments.

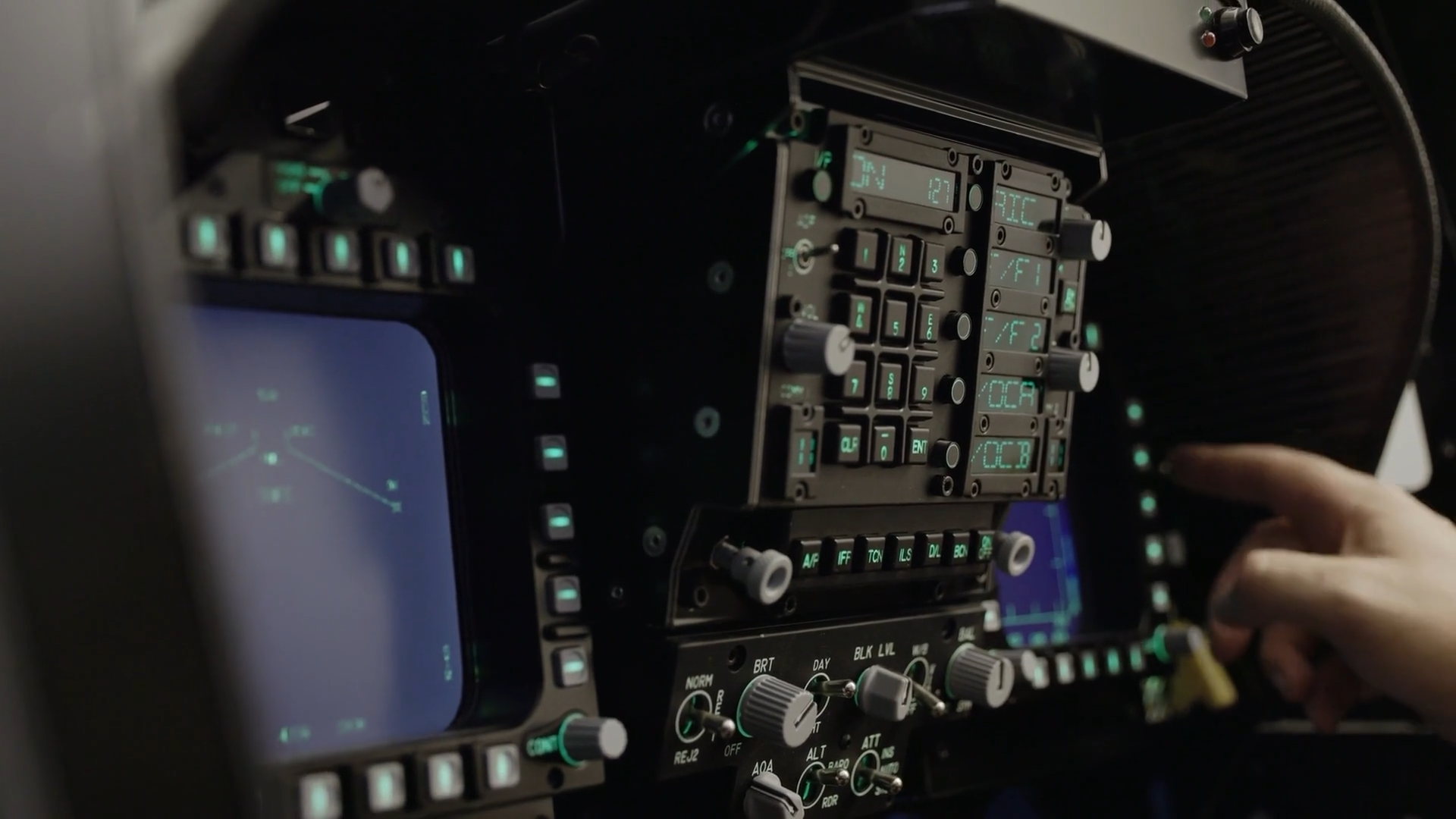

Aviation & Aerospace Training
High-resolution flight simulation training that enables precise instrument reading and recreates real cockpit conditions.

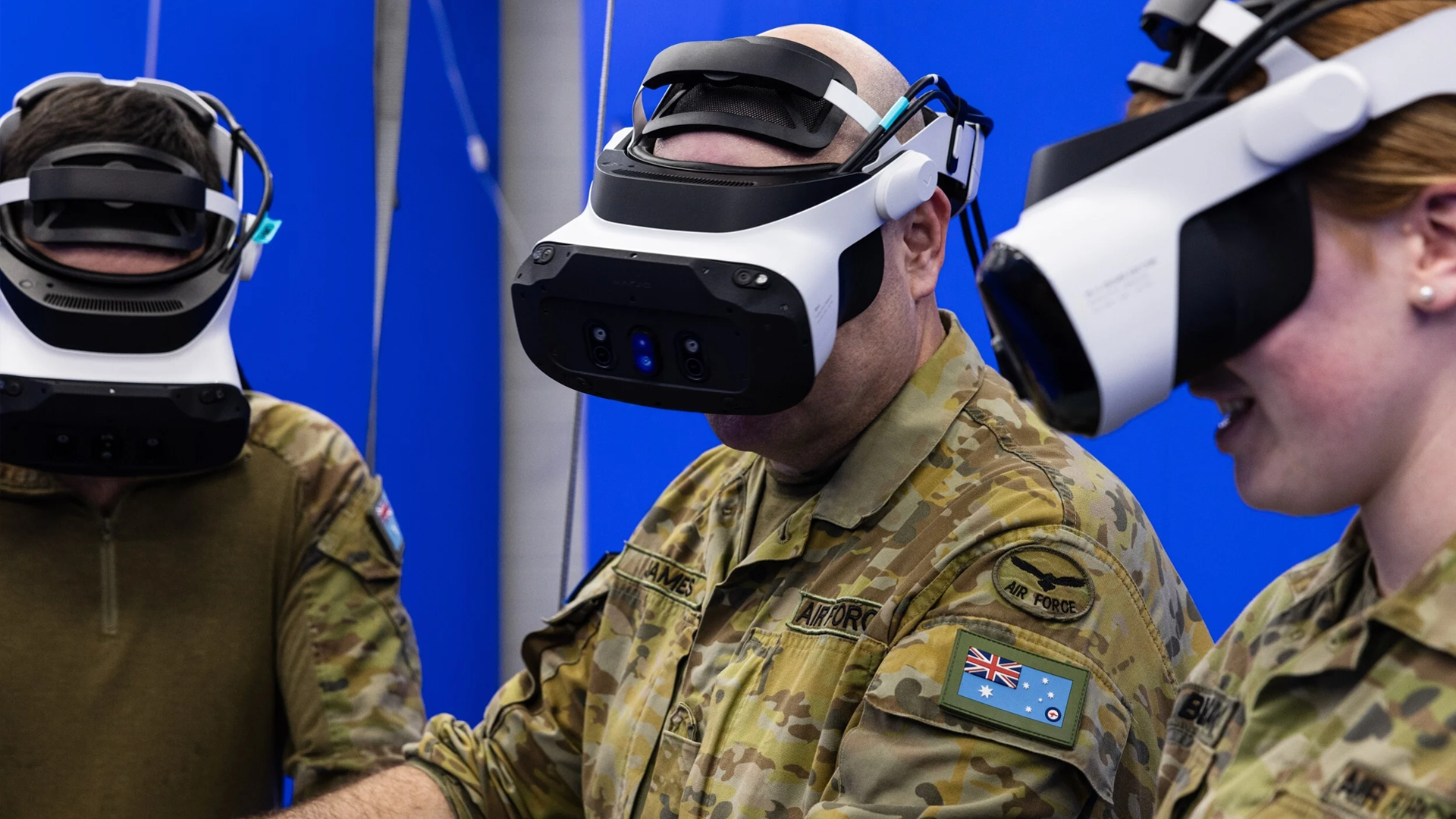

Defense & Military Simulation
Mixed reality simulations that let teams safely repeat high-risk tactical scenarios for effective training.

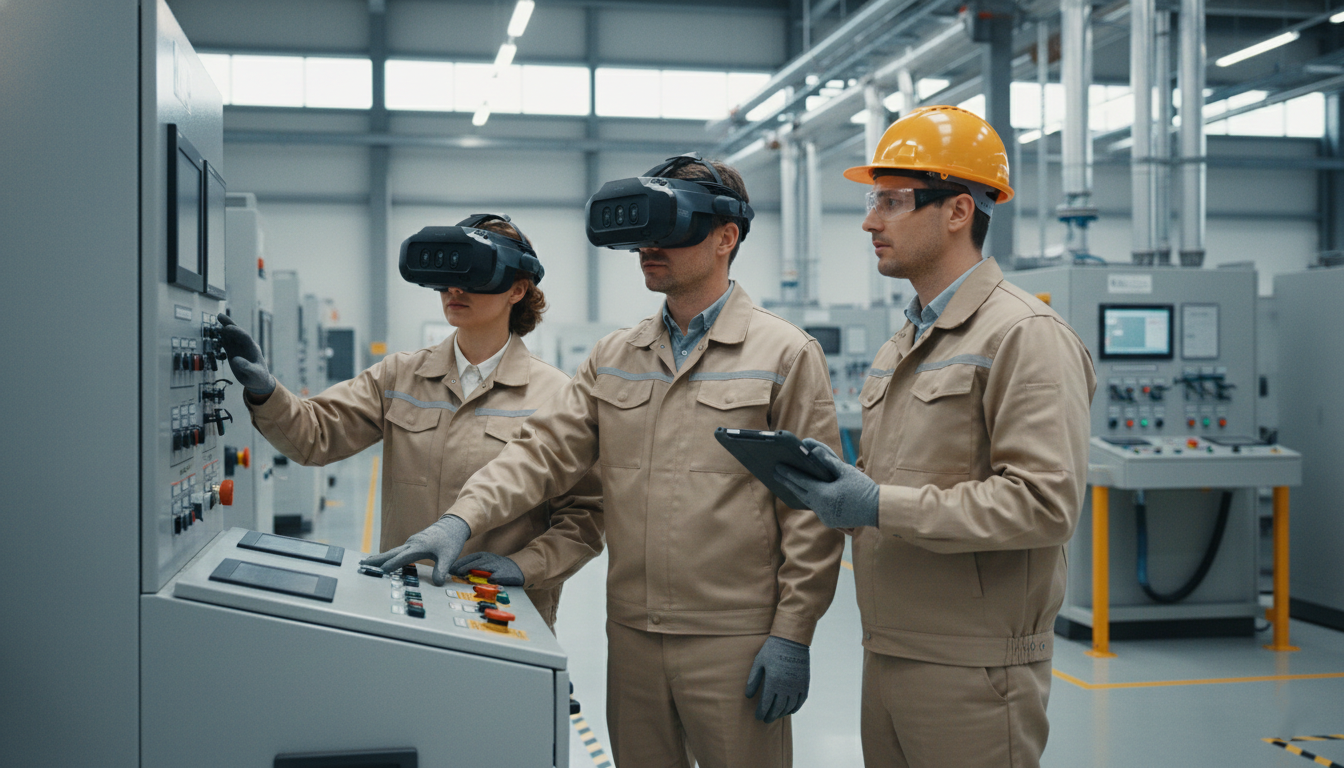

Industrial Workforce Training
XR training that closely replicates real job sites for operations, maintenance, and safety education.

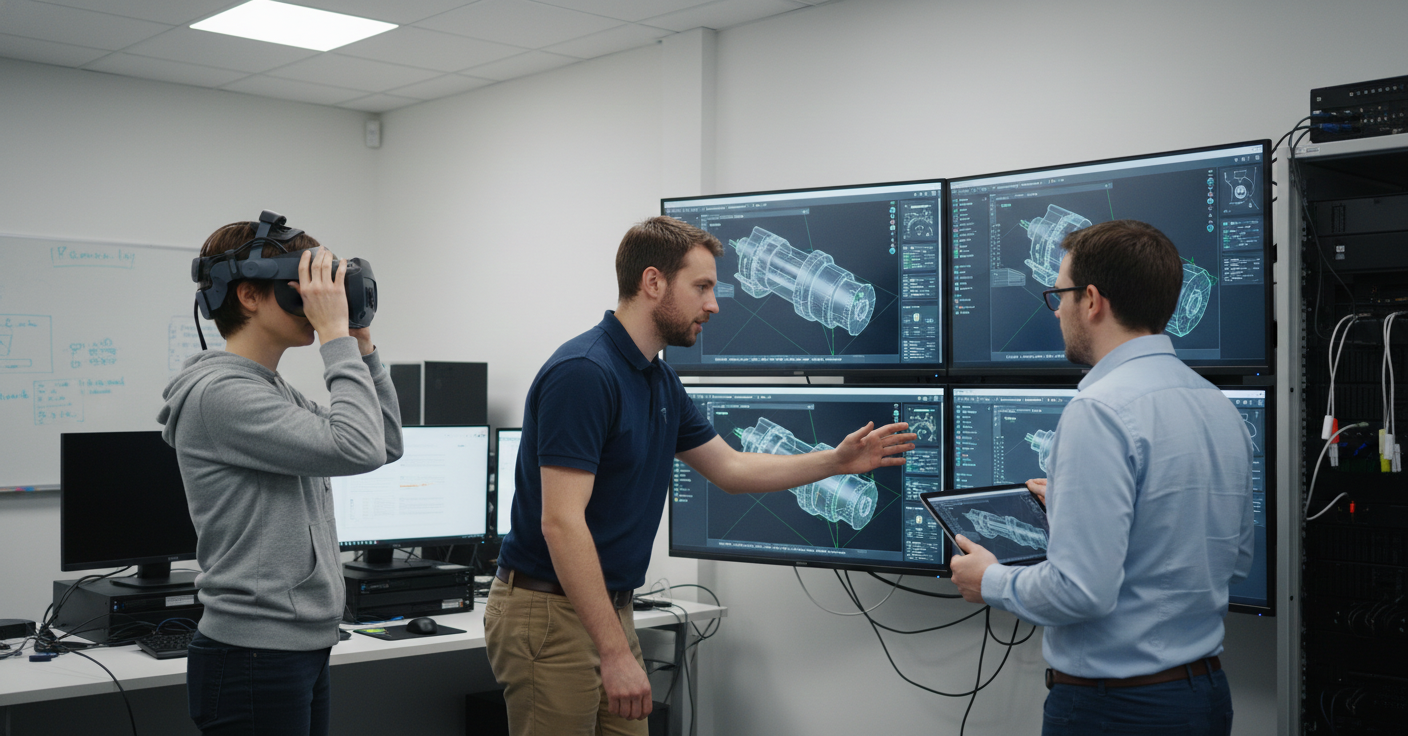

Research & Development
A high-fidelity visual environment for validating simulation systems and interfaces with precision.
Proven results from real-world deployment
How can it be used?
Higher training satisfaction
98%Very satisfied
Deliver defense training content in XR-4’s high resolution,
providing a realistic visual and control context close to live operations.
Improved efficiency and proficiency
150%Improvement
Repeat aviation and defense procedure training with precise, readable visual cues
to accelerate procedural mastery.
Greater operational stability
1,688Increase
Run defense simulations in a high-fidelity, low-latency XR environment
to reduce interruptions and friction, improving overall stability.
NVIDIA RTX PRO 4500 Blackwell
NVIDIA RTX 5000 Ada
NVIDIA GeForce RTX 5070 Ti
NVIDIA GeForce RTX 4080
NVIDIA GeForce RTX 3090
Storage
3 GB available space
Video output
DisplayPort 1.4 or higher × 1
USB connection
Requires one USB-C port that supports USB 10 Gbps or higher
The USB port must be connected directly to the chipset. Alternatively, you can implement the required USB connectivity using a
compatible PCIe expansion card
.
Operating system
Windows 10 (64-bit) / Windows 11
Notes
GPU requirements may vary depending on your use case and the required graphics quality. Mobile and desktop GPUs may share similar product names, but mobile GPUs can deliver significantly lower performance.
AMD graphics cards are not supported at this time.
Storage space is required to install Varjo Base.
Total Graphics Power (TGP): the maximum power consumption of the graphics card, indicating peak performance.
GPU memory: graphics cards may come with different VRAM configurations, which can affect performance.
Laptop computers
Category
Recommended
Processor (CPU)
Intel Core 9 275HX
AMD Ryzen 9 9955HX
Chipset
XR-4 requires a chipset that supports high-bandwidth USB connections, including multiple IN transactions.
Intel chipsets that support USB Multiple INs: 600 / 700 / 800 series
Requires either one USB-C → DisplayPort adapter or one Mini DisplayPort → DisplayPort adapter
The adapter must support 8K video, DisplayPort 1.4 or higher, and Display Stream Compression (DSC).
The adapter must be connected to a port that is routed directly to the dedicated NVIDIA GPU. If you use a USB-C → DisplayPort adapter, the port must support Alternate Mode.
GPU requirements may vary depending on your use case and the required graphics quality. Mobile and desktop GPUs may share similar product names, but mobile GPUs can deliver significantly lower performance.
AMD graphics cards are not supported at this time.
Storage space is required to install Varjo Base.
Total Graphics Power (TGP): the maximum power consumption of the graphics card, indicating peak performance.
GPU memory: graphics cards may come with different VRAM configurations, which can affect performance.
Software requirements
Software
Requirement
How to install
Varjo Base
Latest version recommended
Download Varjo Base from the Varjo Account Portal
Varjo account required
Windows OS version
Windows 10: version 1809 or later
Windows 11: version 21H2 or later
Windows 10: Settings > Update & Security > Windows Update
Windows 11: Settings > Windows Update
After-sales service is provided as follows, depending on the issue type:
① Consumable-related issues (approx. 2 weeks)
· Provided free of charge within the warranty period after inspection
· Provided at cost if the warranty period has expired
② Headset hardware issues (approx. 6 weeks or more)
· After inspection, the headset is shipped directly to Varjo headquarters for service
· Repair costs may apply if the issue is determined to be caused by user negligence, even within the warranty period
Contact us
VARJO XR-4: considering deployment for your organization?
VARJO XR-4 is a premium XR headset built on ultra-high-resolution displays close to human vision and precise mixed reality technology,
delivering near-real visual accuracy for training and simulation environments.
For solution adoption, custom development requests, or partnership inquiries, feel free to reach out anytime.
Our team will review your message and get back to you promptly.
